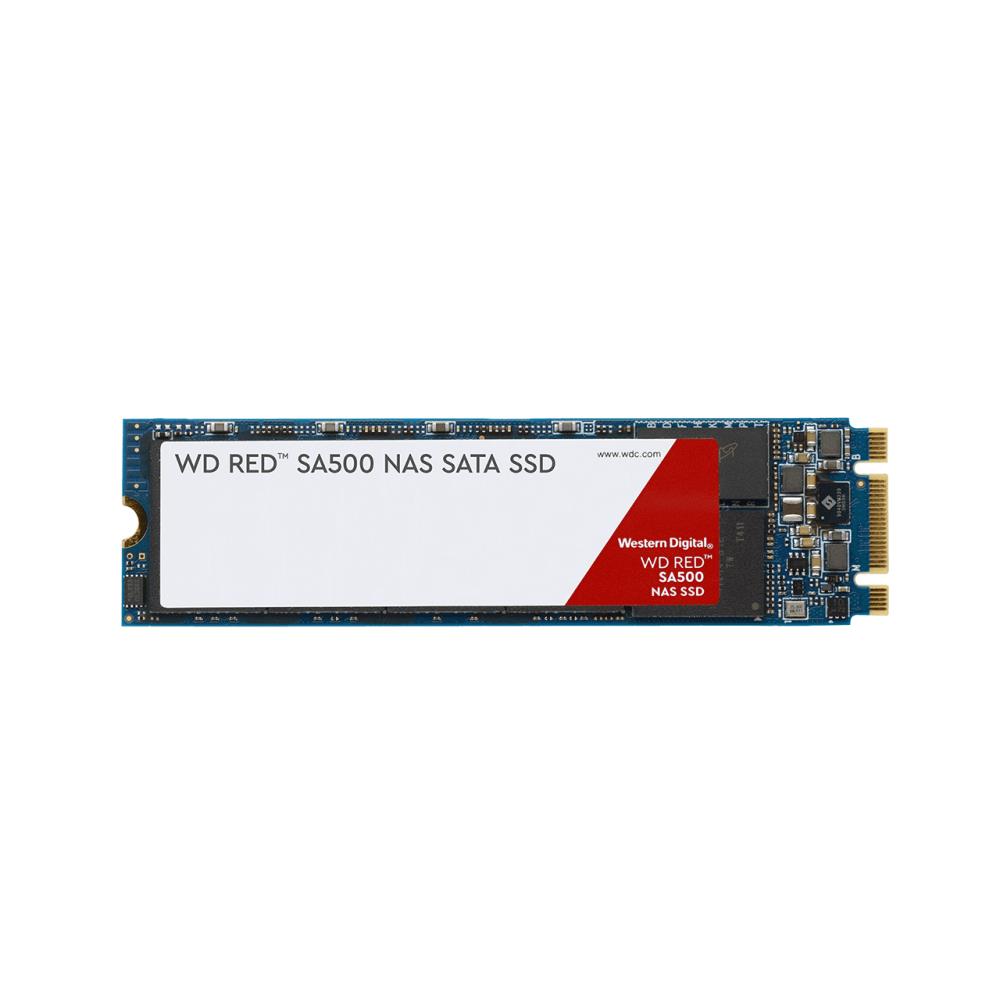

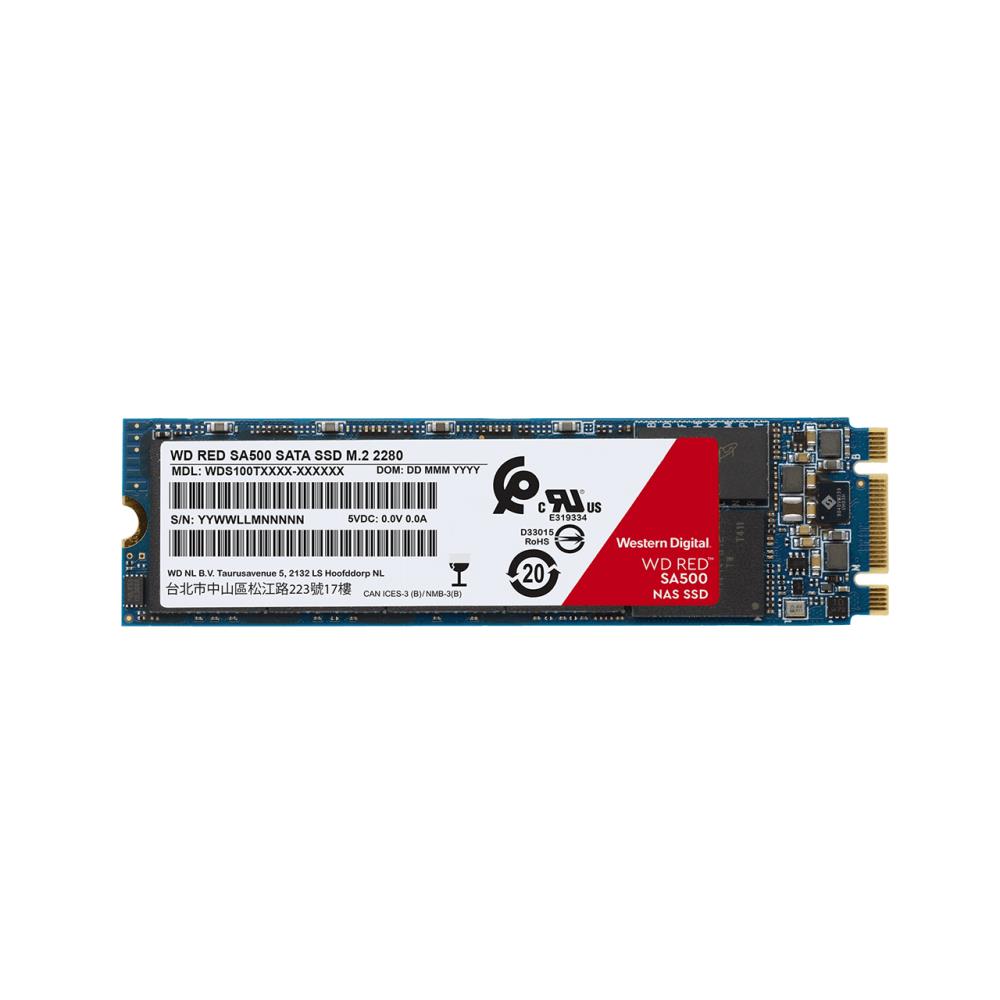

SanDisk Red WD ™ SA500 SATA SSD M.2 2280 POWERED BY 500 GB. SSD capacity: 500 GB, SSD form factor: M.2, Read speed: 560 MB/s, Write speed: 530 MB/s, Data transfer rate: 6 Gbit/s, Component for: PC/Laptop
1 laos
1 laos
Supercharge your NAS
Boost your NAS system’s performance and responsiveness with the WD Red™ SA500 NAS SATA SSD. Since your NAS system is always on, a reliable drive is essential. Unlike standard SSDs, WD Red NAS SATA SSDs are specifically designed and tested for 24/7 usage. This durability together with efficient caching of big files make these drives ideal for OLTP databases, multi-user environments, photo rendering, 4k and 8k video editing and other demanding applications. With 2.5” and M.2 form factors and capacities from 500GB up to 4TB1 (2.5” only), the WD Red SA500 NAS SATA SSD lets you optimize your existing or next NAS system for superior performance and endurance.
The Drive For NAS
Speed
Optimized for caching in NAS systems to rapidly access your most frequently used content
Endurance
For tough workloads demanded by NAS, giving you the reliability you need in a 24/7 environment
Flexible
Available in 2.5” and M.2 form factors so you can upgrade your existing NAS system or design a new one from scratch
| Kaal | 0,007 kg |
|---|---|
| Vendor | WESTERN DIGITAL |
| SATA 3.0 | Yes |
| SSD series | Red SA500 |
| SSD capacity | 500 GB |
| Form Factor | M.2 |
| NVMe | No |
| Write speed | 530 MB/s |
| Read speed | 560 MB/s |
| Drive thickness | 2.38mm |
| TBW | 350 TB |
| MTBF | 2000000 hours |
| Dimensions | 80x22x2.38mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00025 cubm |
| Product Net Weight | 0.007 kg |
| Unit Calculated Weight | 0.45 kg |
| Summary | SanDisk Red WD ™ SA500 SATA SSD M.2 2280 POWERED BY 500 GB. SSD capacity: 500 GB, SSD form factor: M.2, Read speed: 560 MB/s, Write speed: 530 MB/s, Data transfer rate: 6 Gbit/s, Component for: PC/Laptop |
| Certification | FCC, UL, TUV, KC, BSMI, VCCI |
| Component for | PC/Laptop |
| Data transfer rate | 6 Gbit/s |
| Interface | Serial ATA III |
| Mean time between failures (MTBF) | 1750000 h |
| Memory type | 3D NAND |
| Random read (4KB) | 95000 IOPS |
| Random write (4KB) | 85000 IOPS |
| SSD form factor | M.2 |
| TBW rating | 350 |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Windows operating systems supported | Yes |
| Operating voltage | 5 V |
| Power consumption (read) | 2.05 W |
| Power consumption (sleep) | 0.007 W |
| Power consumption (write) | 3.35 W |
| Depth | 80 mm |
| Height | 2.38 mm |
| Weight | 7 g |
| Width | 22 mm |
| Non-operating vibration | 4.9 G |
| Operating shock | 1500 G |
| Operating temperature (T-T) | 0 – 70 °C |
| Operating vibration | 5 G |
| Storage temperature (T-T) | -55 – 85 °C |
| Harmonized System (HS) code | 84717070 |
| Additional model naming | POWERED BY SANDISK |
| Model | WD Red SA500 SATA SSD M.2 2280 POWERED BY SANDISK 500 GB |
| Manufacturer Code | WDS500G1R0B |
| ELKO Code | 1423621 |
| Warranty | 60L |
| Interface — SATA 3.0 | Yes |
