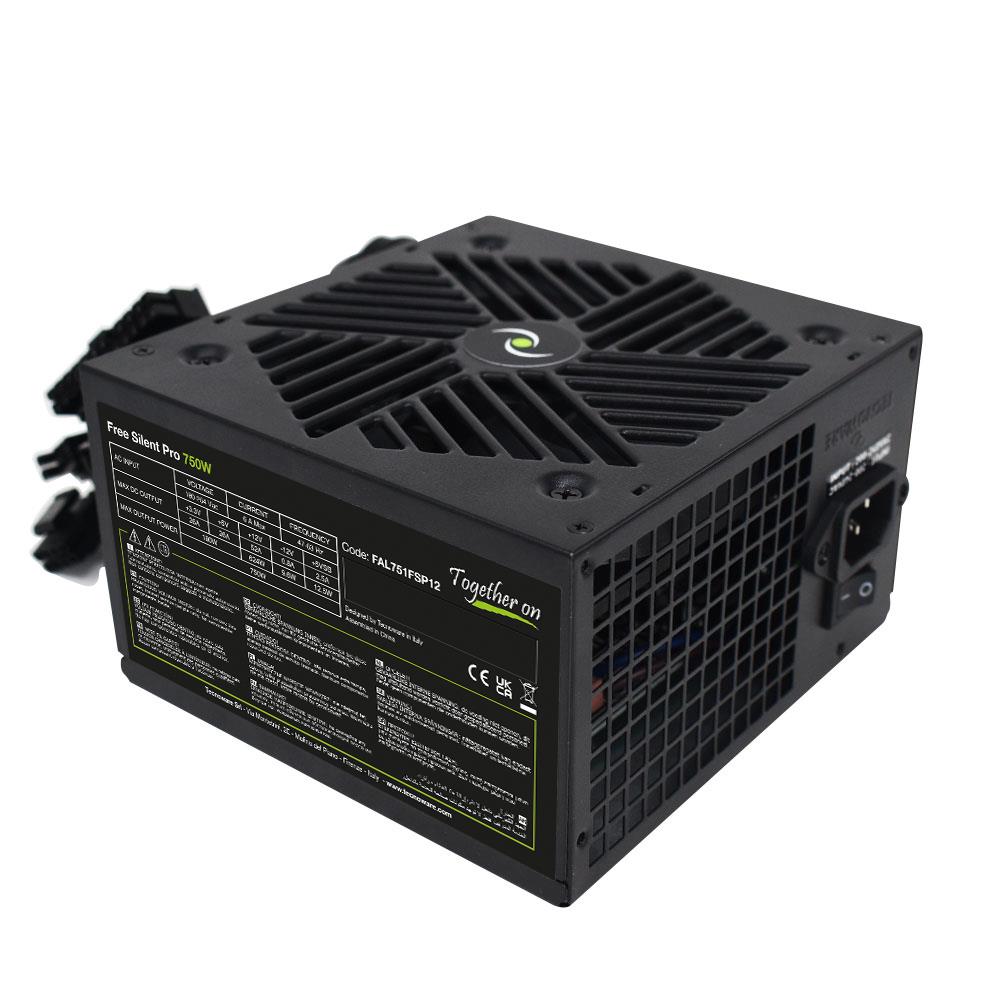

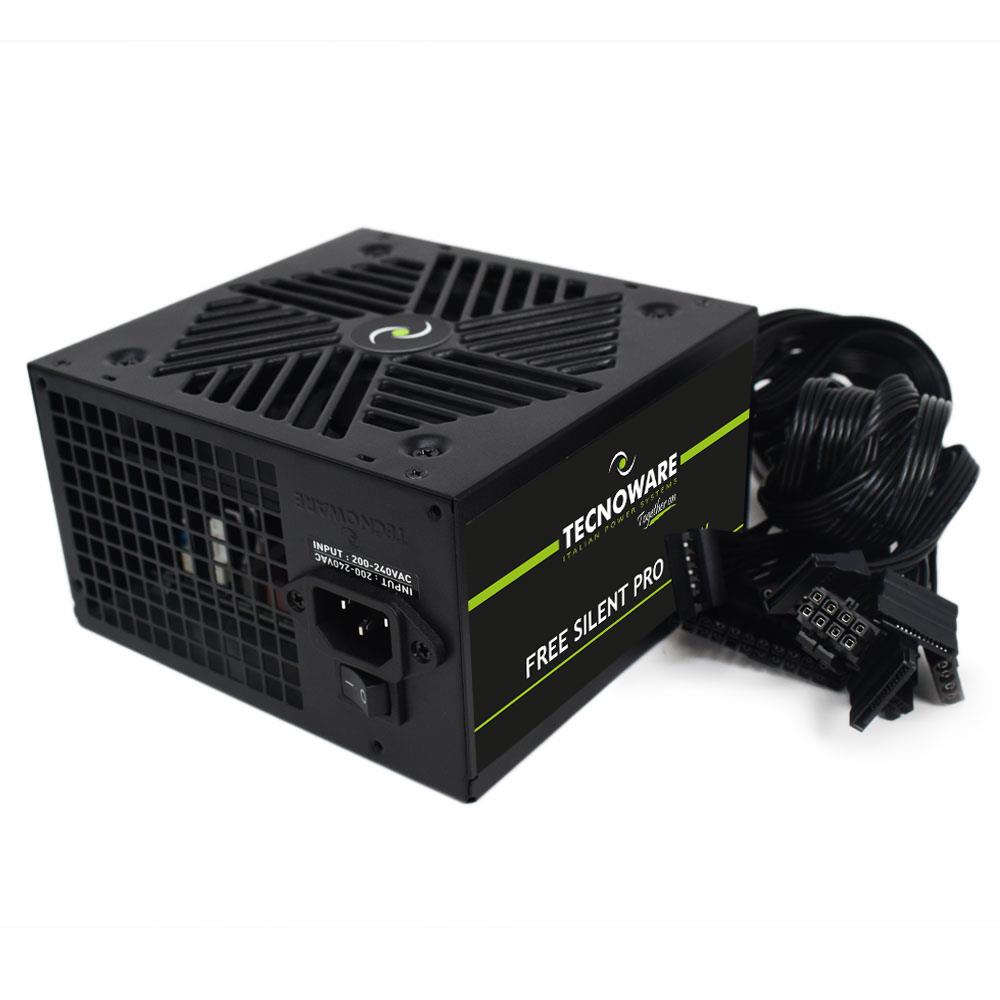

Tecnoware FAL751FSP12. Total power: 750 W, AC input voltage: 180 – 264 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 24-pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
50 laos
50 laos
Internal power supply for personal computer, 750W power, input voltage 230 Vac, 50/60 Hz, conforms to ATX 12V v.2.31 specifications, main switch, surge protection, overload protection, short circuit protection, high MTBF, high reliability, quiet operation, 12 cm silent fan, temperature control of the fan speed, Flat type connection cables from 500mm to 800mm, 1 x 20+4-pin connector, 1 x 12V 4+4-pin connector, 2 x 6+2 PCI-E connector, 2 x molex connectors, 4 x Sata connector, dimensions 150x140x86 mm, weight 1.0 Kg, black color, CE certification, Rohs.
| Mõõtmed | 14 × 15 × 8,6 cm |
|---|---|
| Vendor | TECNOWARE |
| Summary | Tecnoware FAL751FSP12. Total power: 750 W, AC input voltage: 180 – 264 V, AC input frequency: 47 – 63 Hz. Motherboard power connector: 24-pin ATX. Purpose: PC, Power supply unit (PSU) form factor: ATX. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm |
| AC input frequency | 47 – 63 Hz |
| AC input voltage | 180 – 264 V |
| Efficiency | 85 % |
| Max output current (-12V) | 0.8 A |
| Max output current (+3.3V) | 26 A |
| Max output current (+5V) | 26 A |
| Max output current (+5Vsb) | 2.5 A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Overload/Short circuit/Surge protection |
| Total power | 750 W |
| CPU power connector (4+4 pin) | Yes |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 4 |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| 80 PLUS certification | No |
| ATX version | 2.31 |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | Black |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -15 – 40 °C |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1000 g |
| Width | 150 mm |
| Units per Shipping Box | 8 |
| Unit Calculated Volume | 0.00405 cubm |
| Unit Calculated Weight | 1.34 kg |
| CnCode | 85044095 |
| Manufacturer Code | FAL751FSP12 |
| ELKO Code | 1451666 |
| Warranty | 24 |
| Power — AC input frequency | 47 – 63 Hz |
| Power — AC input voltage | 180 – 264 V |
| Power — Efficiency | 85 % |
| Power — Max output current (+3.3V) | 26 A |
| Power — Max output current (+5V) | 26 A |
| Power — Max output current (+5Vsb) | 2.5 A |
| Power — Max output current (-12V) | 0.8 A |
| Power — Power Factor Correction (PFC) type | Active |
| Power — Power protection features | Overload/Short circuit/Surge protection |
| Power — Total power | 750 W |
| Ports & interfaces — CPU power connector (4+4 pin) | Yes |
| Ports & interfaces — Motherboard power connector | 24-pin ATX |
| Ports & interfaces — Number of SATA power connectors | 4 |
| Ports & interfaces — PCI Express power connectors (6+2 pin) | 2 |
| Ports & interfaces — Peripheral (Molex) power connectors (4-pin) | 2 |
| Performance — 80 PLUS certification | No |
| Performance — ATX version | 2.31 |
| Performance — Power supply unit (PSU) form factor | ATX |
| Performance — Purpose | PC |
| Design — Cooling type | Active |
| Design — Fan diameter | 120 mm |
| Design — Number of fans | 1 fan(s) |
| Design — On/off switch | Yes |
| Design — Product colour | Black |
| Operational conditions — Operating temperature (T-T) | 0 – 40 °C |
| Operational conditions — Storage temperature (T-T) | -15 – 40 °C |
| Weight & dimensions — Depth | 140 mm |
| Weight & dimensions — Height | 86 mm |
| Weight & dimensions — Weight | 1000 g |
| Weight & dimensions — Width | 150 mm |
