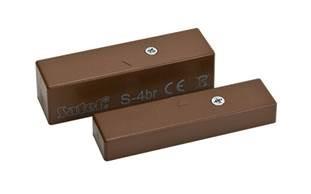

Magnetic contact detectors belong to the essential devices of perimeter protection. They are used to protect doors, windows, etc., by triggering alarm when they are open. The S-4 detector is designed for surface mounting by fastening it with screws to window frame, door frame, etc. S-4 consists of two parts placed in stylish enclosures: the reed switch (magnetic) sensor and the magnet. Moving one part away from the other breaks the sensor circuit, which is indicated as a violation. The detector is provided with a tamper contact and an additional terminal M for easy installation of EOL resistor.
S-4 is designed to work with any alarm control panel having NC inputs as well as to be used in automation system as a control element. It meets the requirements of EN 50131-1 and EN 50131-2-6 standards for Grade 2.
| Vendor | SATEL |
|---|---|
| Detector Type | Magnetic contact |
| Detection technology | Magnetic |
| Operating temperature range | -30…+55 °C |
| Colour | Brown |
| Dimensions | 58,5 x 16,5 x 15,2mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 7.88E-05 cubm |
| Product Net Weight | 0.024 kg |
| Unit Calculated Weight | 0.04 kg |
| Manufacturer Code | S-4BR |
| ELKO Code | 1258442 |
| Warranty | 36 |
