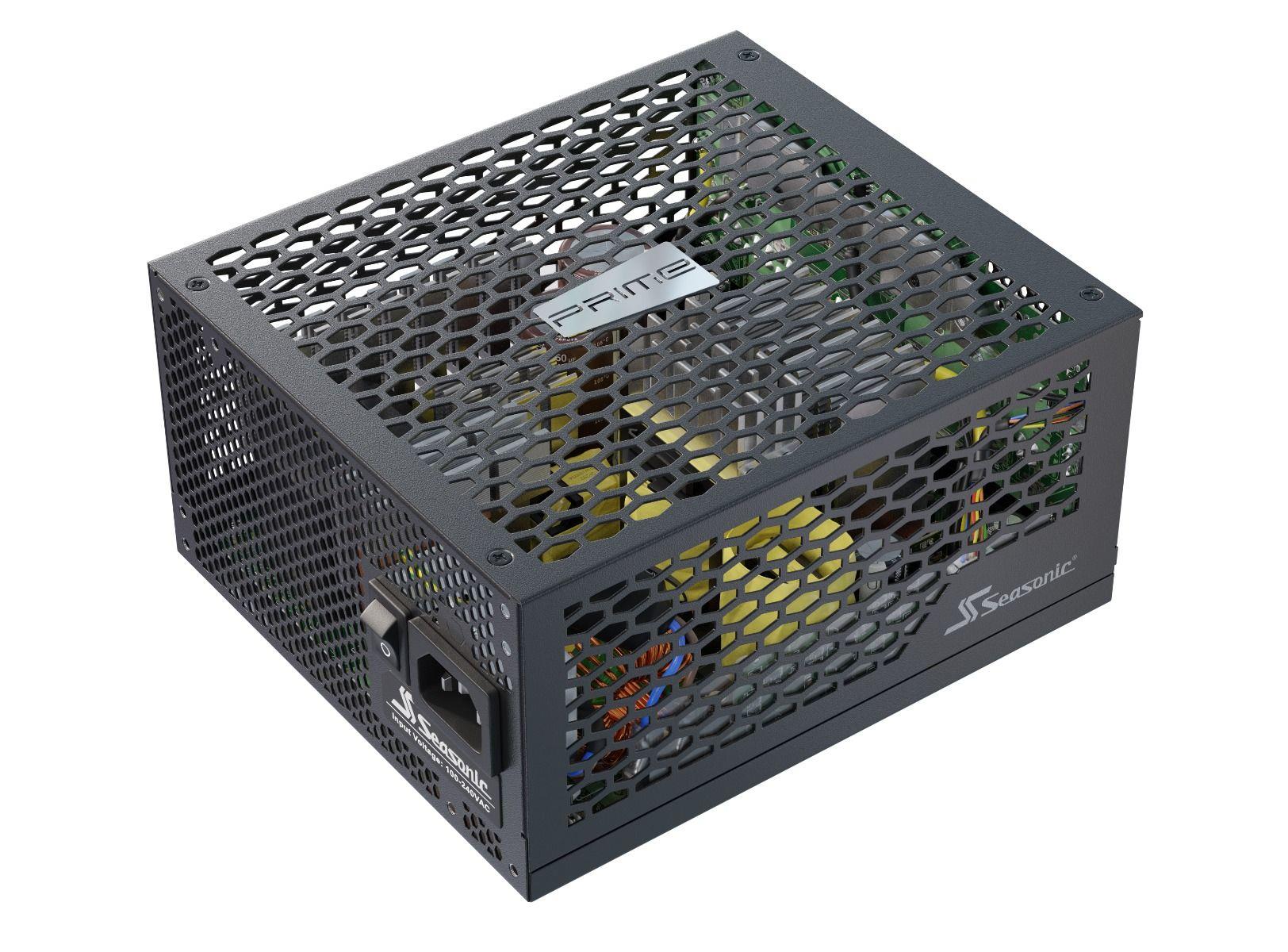

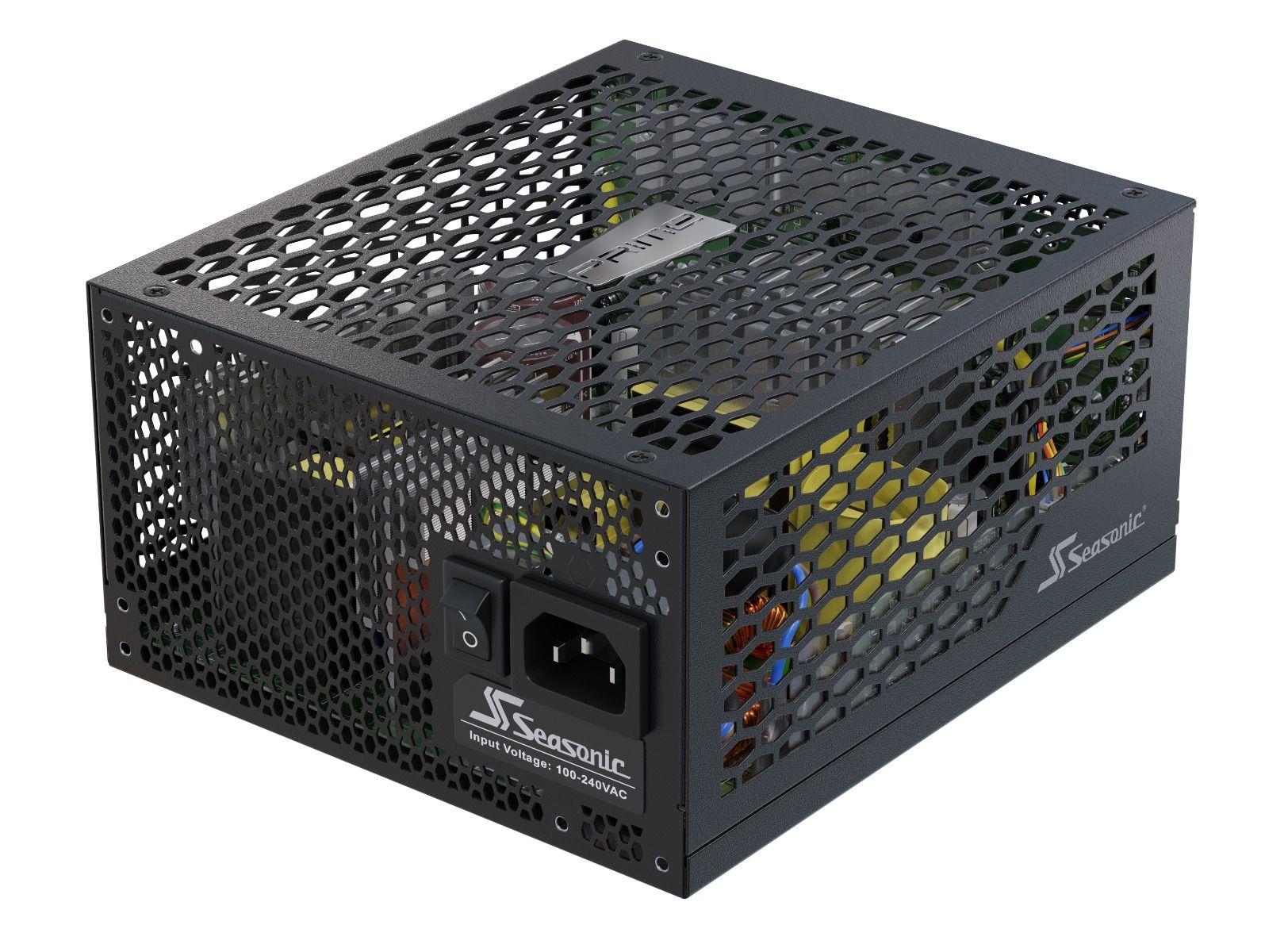

Seasonic PRIME Fanless TX. Total power: 700 W, AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 450,800,810 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Passive. Compliance certificates: RoHS, Certification: cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH
Laost otsas
Laost otsas
PRIME Fanless TX utilizes the fanless technology, which eliminates the fan noise completely, ensuring truly quiet operation. The unit not only is rated to be 80PLUS Titanium efficient, but it also has the highest power output on the fanless power supply market at the moment. The power supply is ideal any situations that demand silence from the equipment. The high quality components inside and the innovative circuit design result in clean and stable power output. The fully modular cables allow for better cable management in the computer case.
80 PLUS® Titanium
The PRIME Titanium Series achieves the highest level of 80 PLUS® Titanium certification on the market with its 94 % efficiency at 50 % system load.
Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 0.5 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems.

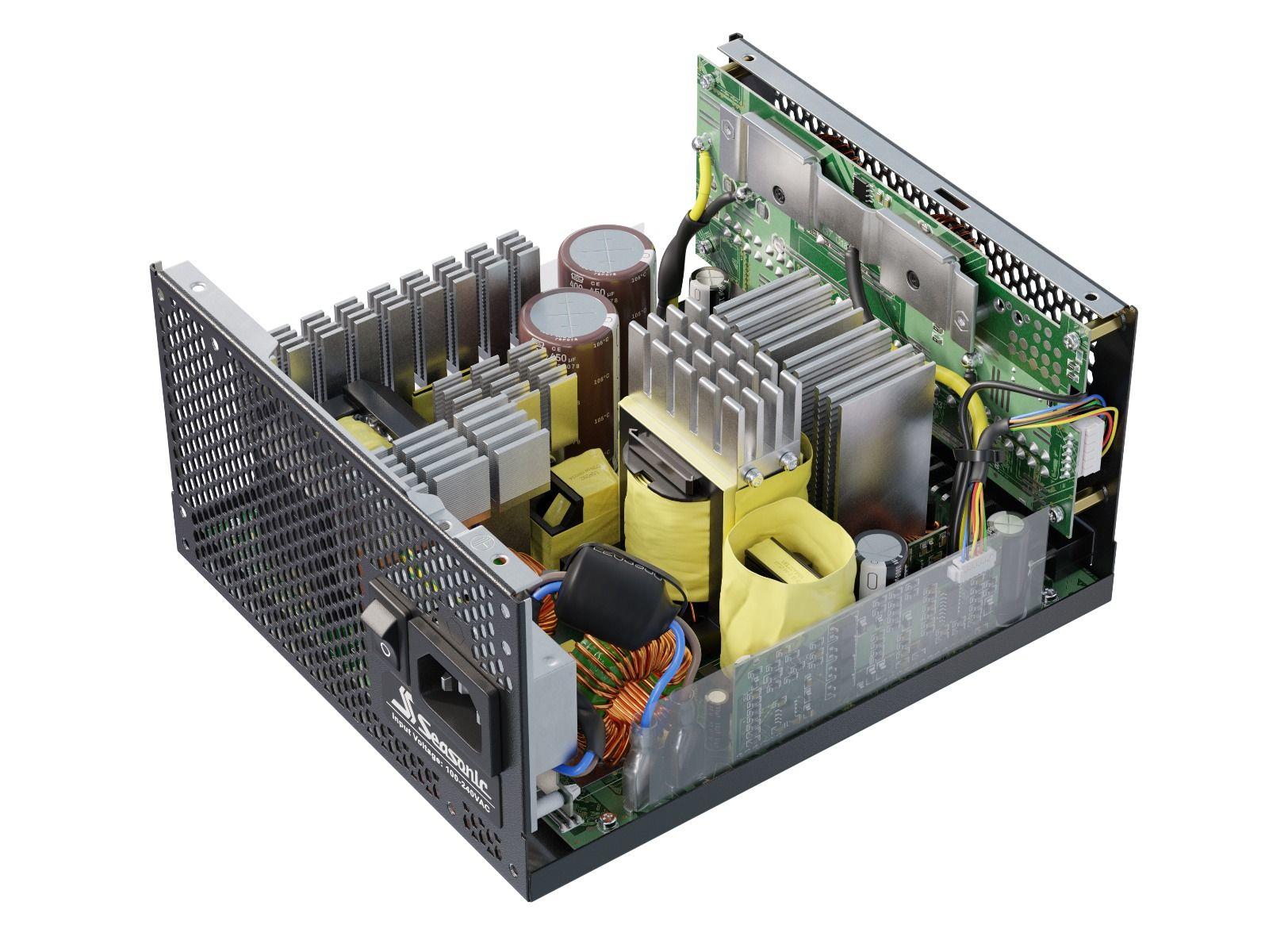

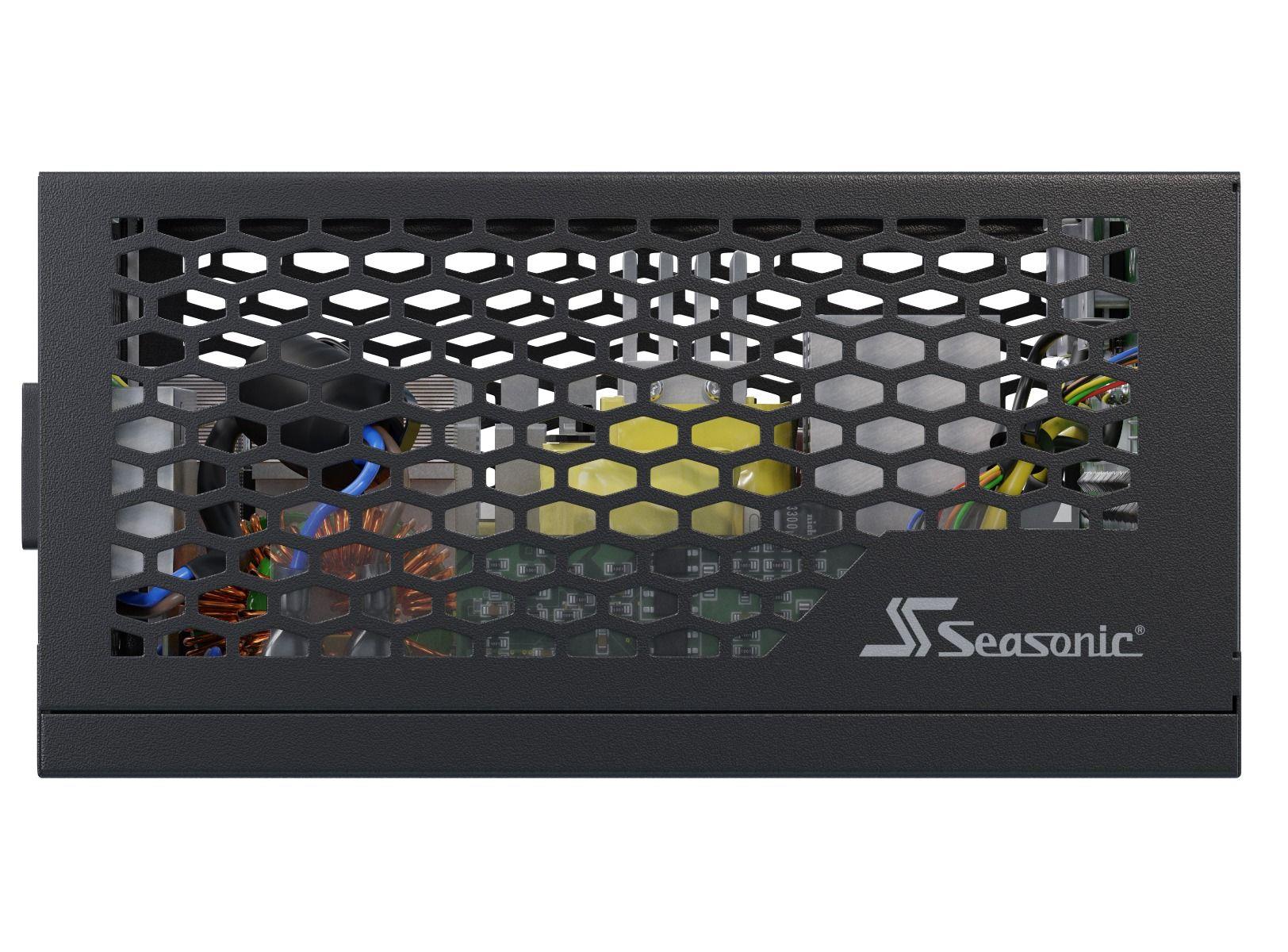

Seasonic Fanless Design
Cooling fans inside the power supply are replaced by passive cooling based on heat dissipation. Silent operation does not only provide a more pleasant working environment but it also results in less power consumption and lower utility bills.
| Mõõtmed | 17 × 15 × 8,6 cm |
|---|---|
| Warranty | 24 |
| Summary | Seasonic PRIME Fanless TX. Total power: 700 W, AC input voltage: 100 – 240 V, AC input frequency: 50 – 60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 450,800,810 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Passive. Compliance certificates: RoHS, Certification: cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 100 – 240 V |
| Combined power (-12V) | 3.6 W |
| Combined power (+3.3V) | 100 W |
| Combined power (+5V) | 100 W |
| Combined power (+5Vsb) | 15 W |
| Efficiency | 94 % |
| Input current | 4.5 – 9.5 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current/Over power/Over voltage/Short circuit/Under voltage |
| Total power | 700 W |

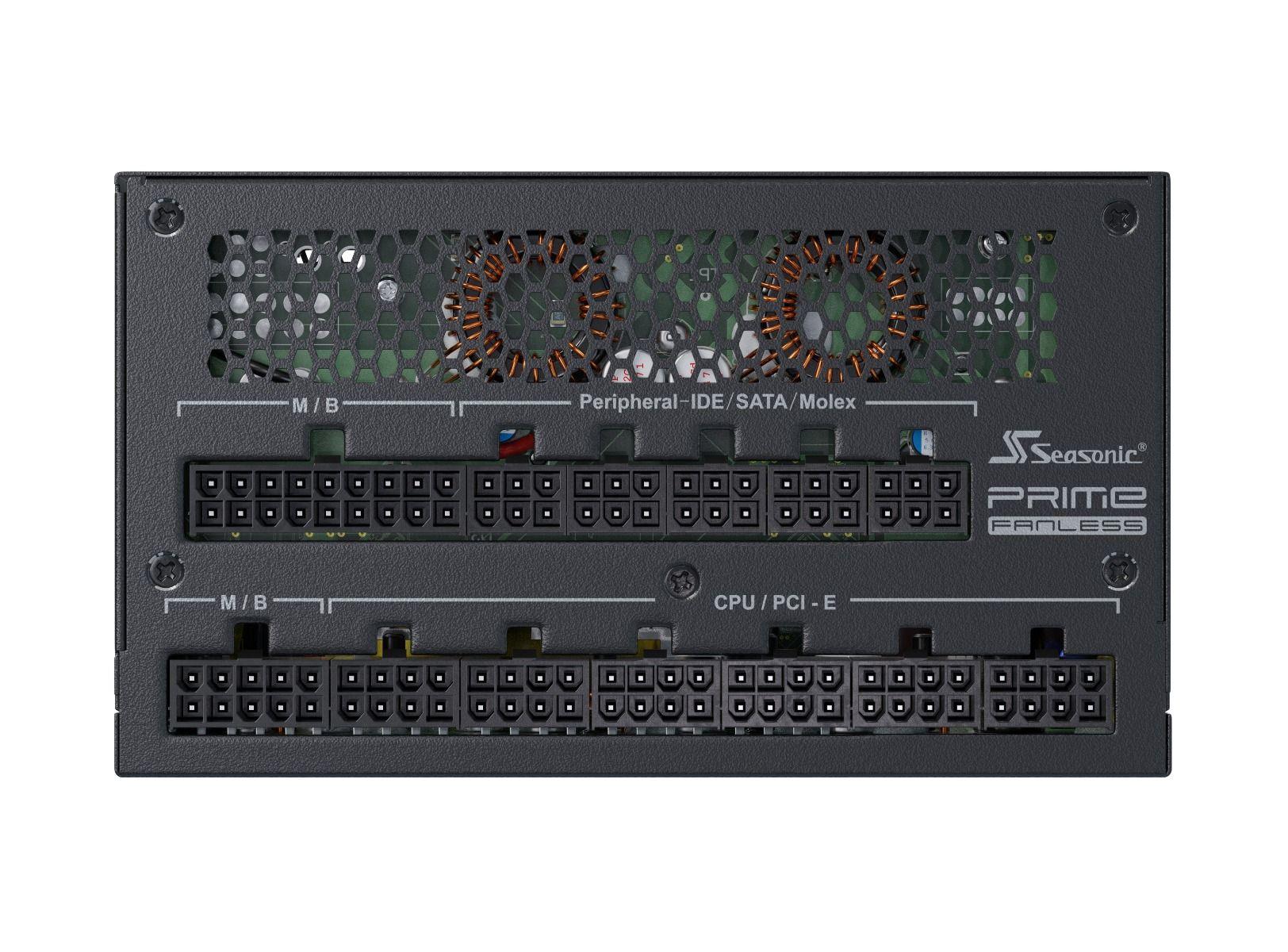

| Cabling type | Fully-Modular |
| CPU power cable length | 650 mm |
| CPU power connectors (8-pin) | 2 |
| Motherboard power cable length | 610 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| PCI Express power cable length | 750 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| Peripheral (Molex) power cable length | 300/470/690 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 450/800/810 mm |
| 80 PLUS certification | 80 PLUS Titanium |
| Mean time between failures (MTBF) | 150000 h |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Supported motherboard form factors | ATX |
| Cooling type | Passive |

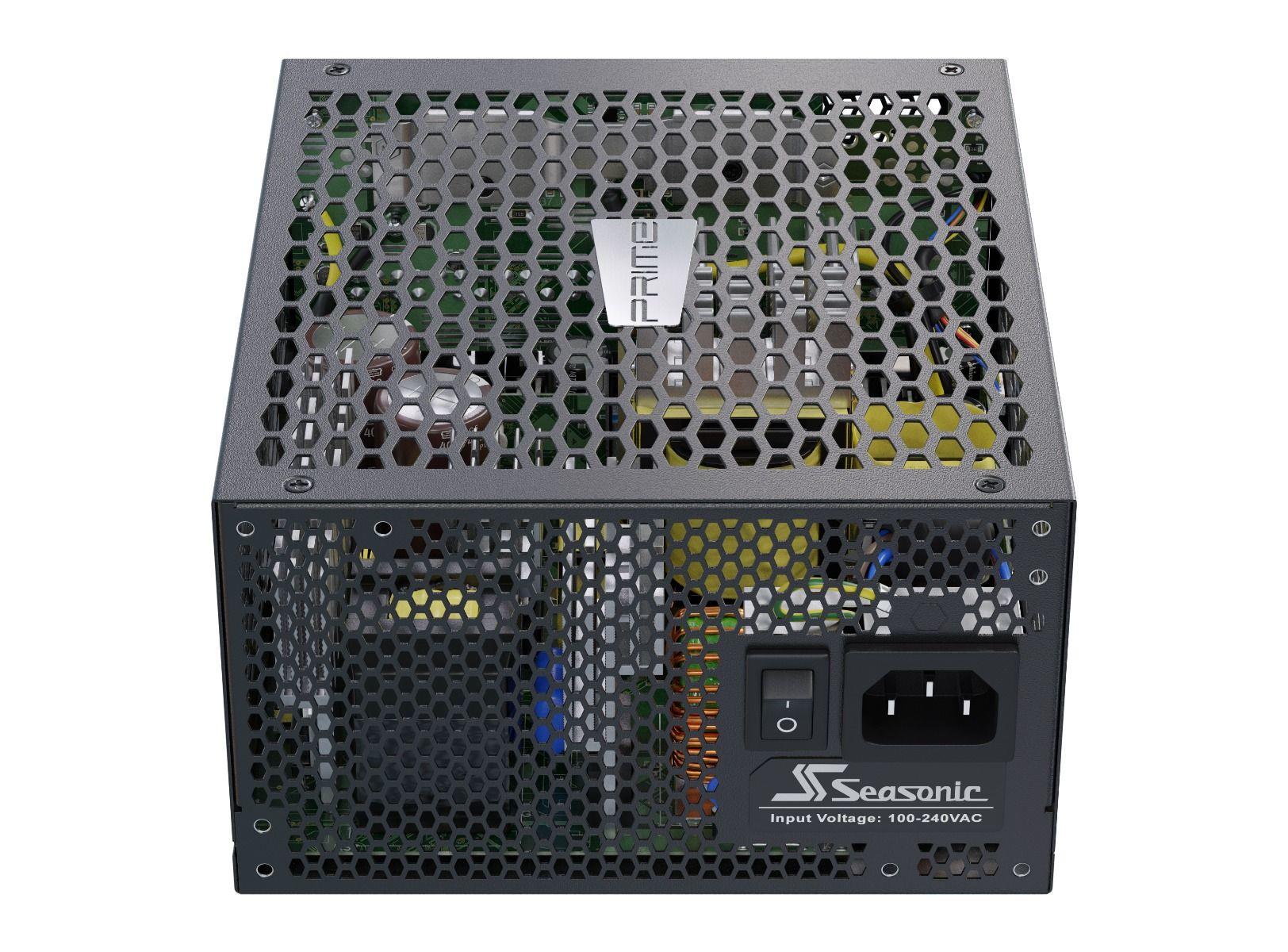

| On/off switch | Yes |
| Product colour | Black |
| Operating temperature (T-T) | 0 – 45 °C |
| Certification | cTUVus, TUV, CB, CCC, BSMI, EAC, CE, WEEE, ErP Lot 6, REACH |
| Compliance certificates | RoHS |
| Depth | 170 mm |
| Height | 86 mm |
| Width | 150 mm |

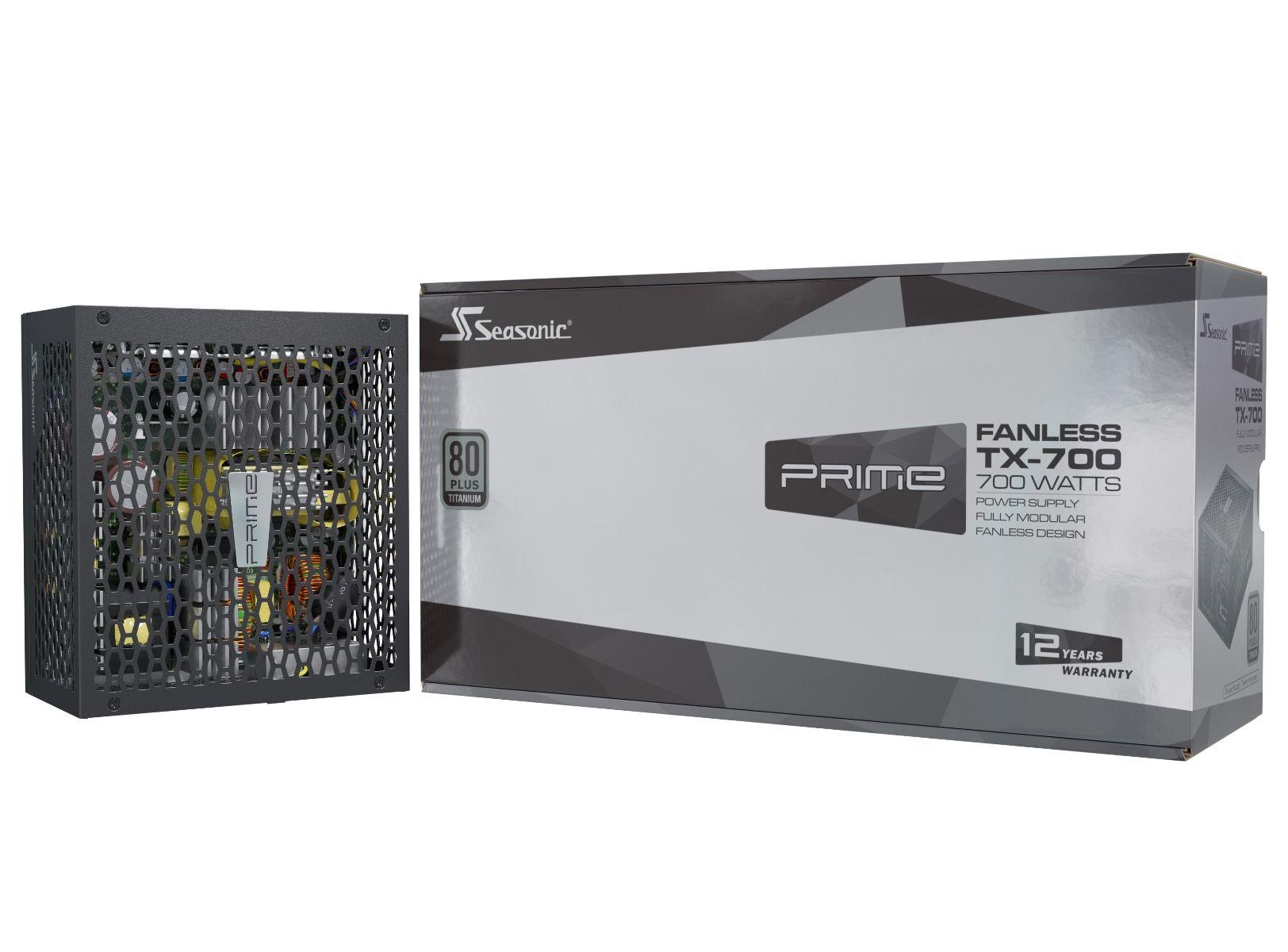

| Package type | Box |
| Sustainability certificates | ENERGY STAR |
| Harmonized System (HS) code | 84733020 |
| Model name | PRIME FANLESS TX |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.007538 cubm |
| Unit Calculated Weight | 3.44 kg |
| CnCode | 85044095 |
