Seasonic Focus GX-1000. Total power: 1000 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 550 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: CB, CE, EAC, REACH, RoHS, WEEE, cTUVus
Laost otsas
Laost otsas
FOCUS GX ATX 3.0
Following the well-established legacy of the Seasonic FOCUS Series, the FOCUS GX Series was upgraded to comply with the ATX 3.0 and PCIe 5.0 standards. Offering a complete range of power supplies ranging from 750 W to 1000 W with in a 140 mm depth, these units will be the perfect allies to power the newest high power graphics cards and processors on the market.
Digital Hybrid Fan Control
The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Digital Hybrid Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.
Reduced noise without increase in temperature
Extended fan life due to the reduced number of fan rotations
Optimized heat dissipation at all times
Unsurpassed silent performance in Fanless Mode
Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
When the fan shaft rotates, high pressure oil drifts along the grooves of the bearing sleeve to generate a thin layer of lubrication between the bearing faces.
As the speed increases, so does dynamic oil pressure and the shaft is lifted from the bearing to create smooth, effortless rotations. The herringbone shape of the groves helps to efficiently channel the lubricant and avert leakage.
| Mõõtmed | 14 × 15 × 8,6 cm |
|---|---|
| Warranty | 120 |
| Summary | Seasonic Focus GX-1000. Total power: 1000 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 550 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: CB, CE, EAC, REACH, RoHS, WEEE, cTUVus |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Combined power (-12V) | 3.6 W |
| Combined power (+3.3V) | 125 W |
| Combined power (+5V) | 125 W |
| Combined power (+5Vsb) | 15 W |
| Input current | 13 – 6.5 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+3.3V) | 25 A |
| Max output current (+5V) | 25 A |
| Max output current (+5Vsb) | 3 A |
| Maximum input current (@110V) | 13 A |
| Maximum input current (@220V) | 6.5 A |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Total power | 1000 W |

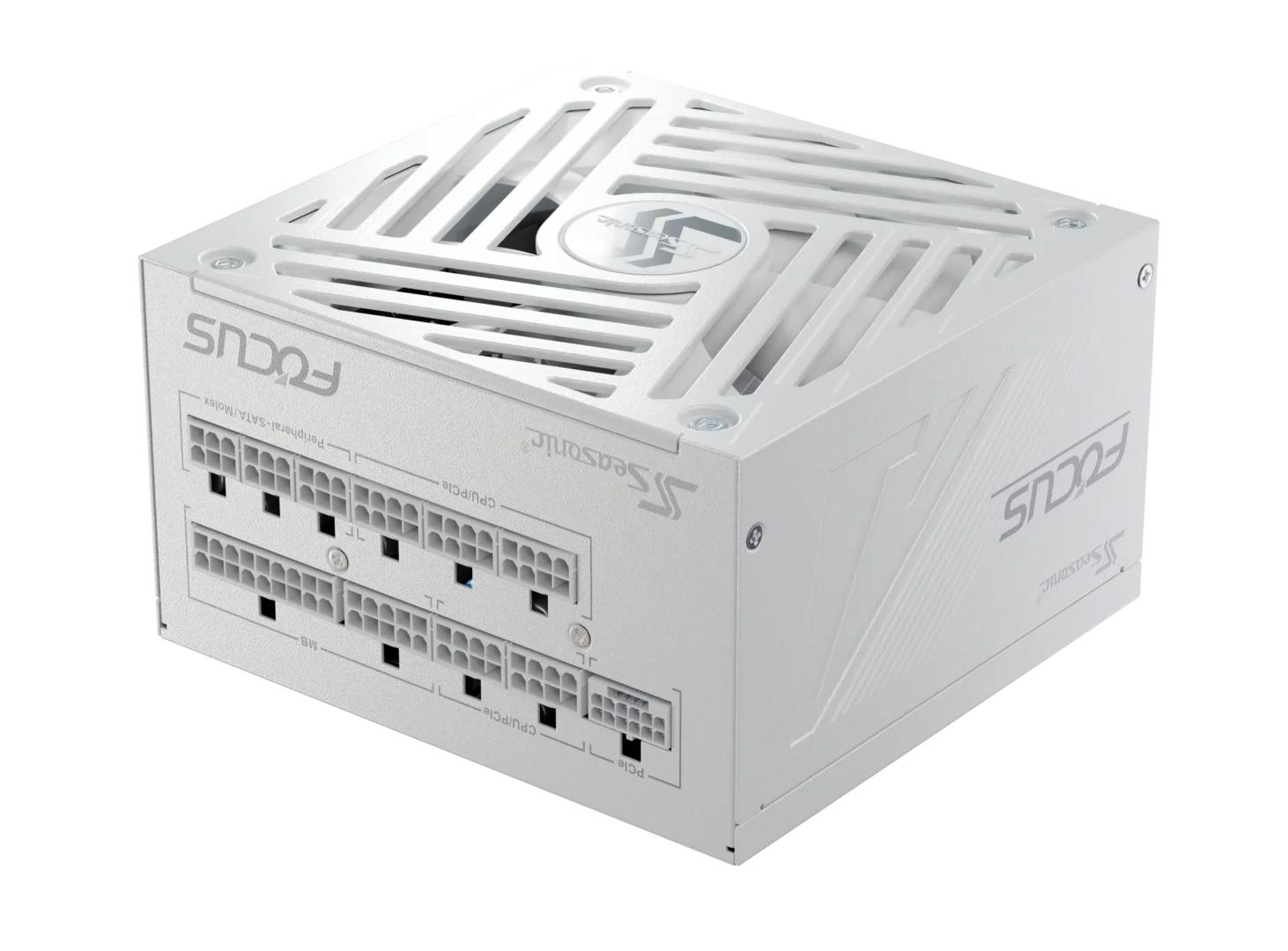

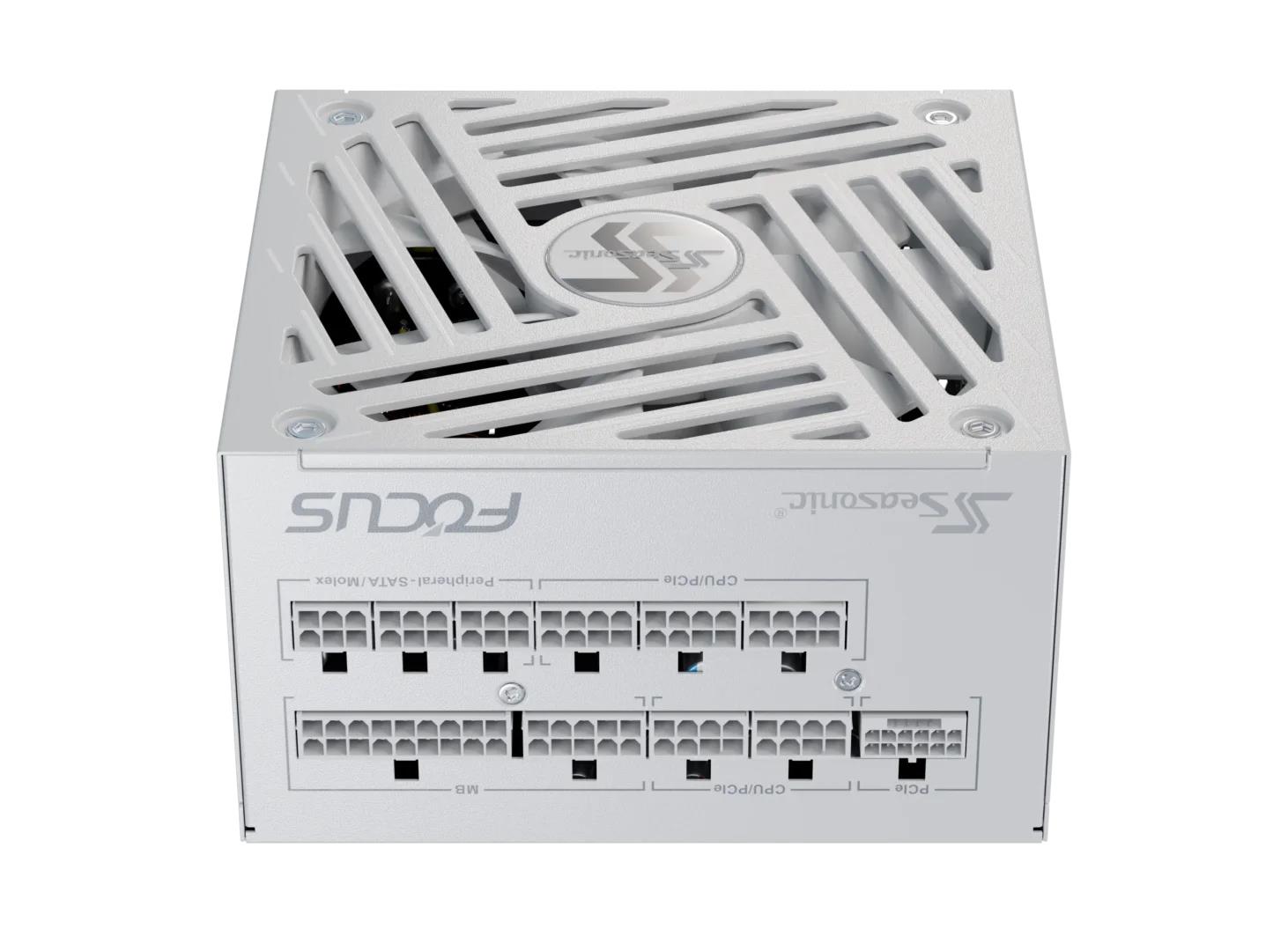

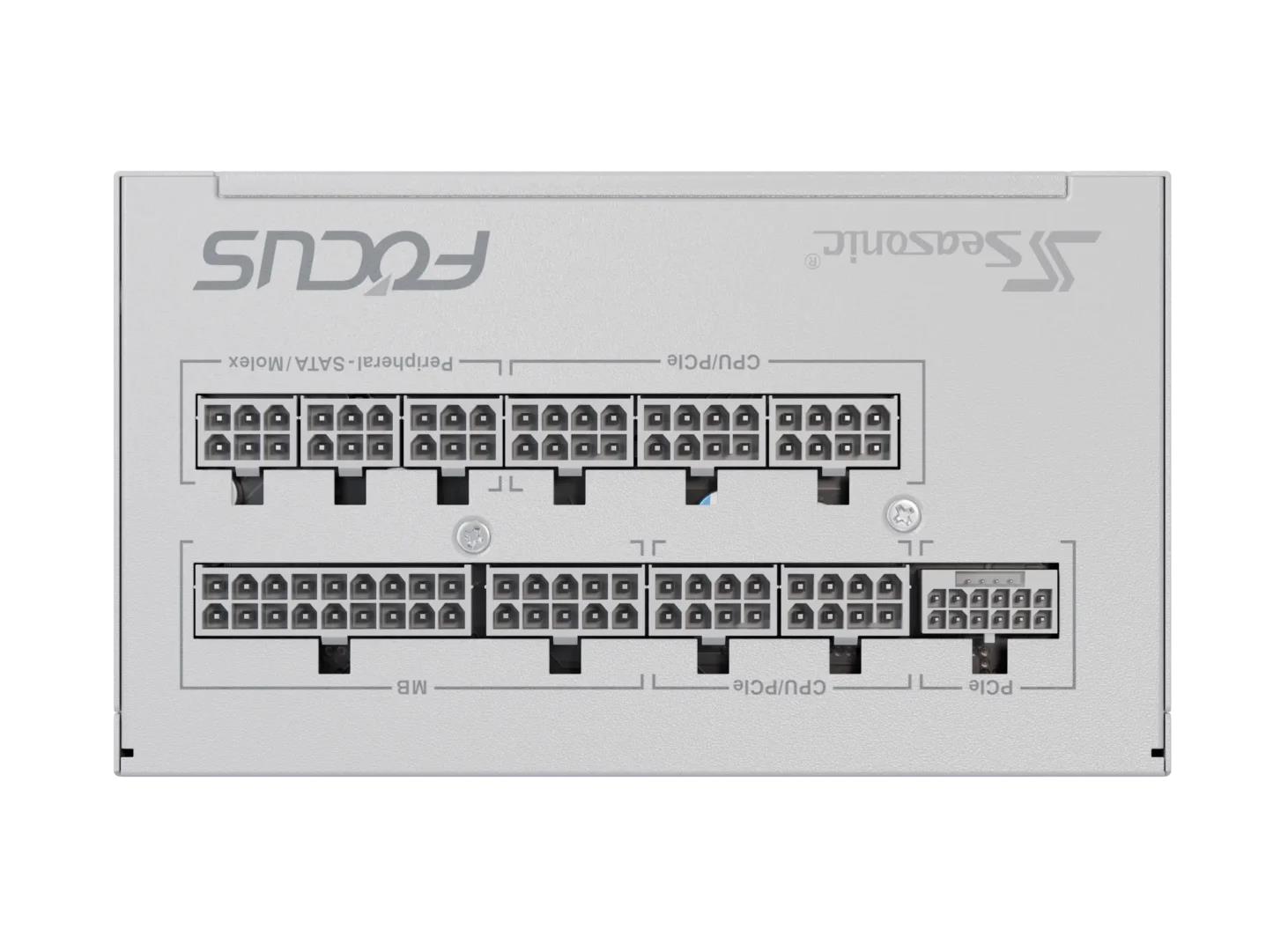

| Cabling type | Fully-Modular |
| CPU power cable length | 700 mm |
| CPU power connector (4+4 pin) | Yes |
| Motherboard power cable length | 610 mm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 2 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (6+2 pin) | 3 |
| Peripheral (Molex) power cable length | 690 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| SATA power cable length | 550 mm |
| 80 PLUS certification | 80 PLUS Gold |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 135 mm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | White |
| Operating temperature (T-T) | 0 – 50 °C |
| Compliance certificates | CB/CE/cTUVus/EAC/REACH/RoHS/WEEE |
| Safety | cTUVus, TUV, CB, CCC, BSMI, EAC, CE |
| Depth | 140 mm |
| Height | 86 mm |
| Width | 150 mm |
| Package type | Box |
| Sustainability certificates | ENERGY STAR |
| Warranty period | 10 year(s) |
| Model name | FOCUS GX White ATX 3 (2024) |
| Units per Shipping Box | 5 |
| Unit Calculated Volume | 0.008639 cubm |
| Unit Calculated Weight | 3.56 kg |
| CnCode | 85044095 |
