Samsung PM9A3. SSD capacity: 960 GB, SSD form factor: M.2, Read speed: 5500 MB/s, Write speed: 1400 MB/s, Component for: PC/Laptop
18 laos
18 laos

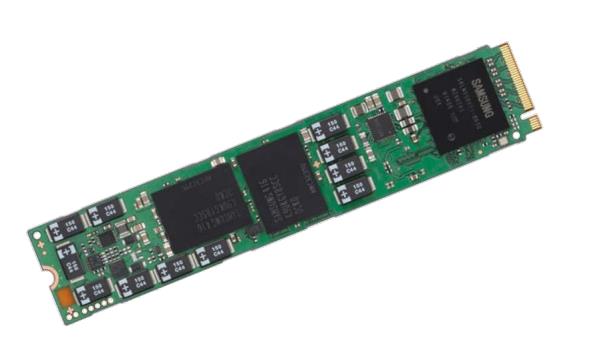

Samsung PM9A3 – The Power Behind High Performing Data Centers
Samsung is now unleashing next generation data center performance with its PM9A3 NVMe PCIe SSD. A specialist data center product, this cutting-edge solution offers up to 190,000 IOPS random write time and 6950 MB/S sequential read, as well as up to 50% faster restart times compared to its predecessor. It’s also available in a range of form factors, including M.2, U.2 and E1.S. Providing significant improvements for those needing high end storage, there’s plenty to attract growing data centers that want to create value.
| Vendor | SAMSUNG |
|---|---|
| PCIe Gen4 | Yes |
| SSD series | PM9A3 |
| SSD capacity | 960 GB |
| Form Factor | M.2 |
| NVMe | Yes |
| Write speed | 1400 MB/s |
| Read speed | 5500 MB/s |
| MTBF | 2000000 hours |
| Dimensions | 110mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 6.6E-07 cubm |
| Product Net Weight | 0.02 kg |
| Unit Calculated Weight | 0.02 kg |
| Summary | Samsung PM9A3. SSD capacity: 960 GB, SSD form factor: M.2, Read speed: 5500 MB/s, Write speed: 1400 MB/s, Component for: PC/Laptop |
| Component for | PC/Laptop |
| Hardware encryption | Yes |
| Interface | PCI Express 4.0 |
| Mean time between failures (MTBF) | 2000000 h |
| Memory type | MLC |
| Random read (4KB) | 550000 IOPS |
| Random write (4KB) | 60000 IOPS |
| Security algorithms | 256-bit AES-XTS |
| SSD form factor | M.2 |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Power consumption (idle) | 2.5 W |
| Power consumption (read) | 7.5 W |
| Power consumption (write) | 6.5 W |
| Depth | 110 mm |
| Height | 3.8 mm |
| Weight | 20 g |
| Width | 22 mm |
| Non-operating shock | 1500 G |
| Non-operating vibration | 20 G |
| Operating relative humidity (H-H) | 5 – 95 % |
| Operating temperature (T-T) | 0 – 70 °C |
| Storage temperature (T-T) | -40 – 85 °C |
| Harmonized System (HS) code | 84717070 |
| Manufacturer Code | MZ1L2960HCJR-00A07 |
| ELKO Code | 1341551 |
| Warranty | 60L |
