NZXT N7 Z790. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,…. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Laost otsas
Laost otsas

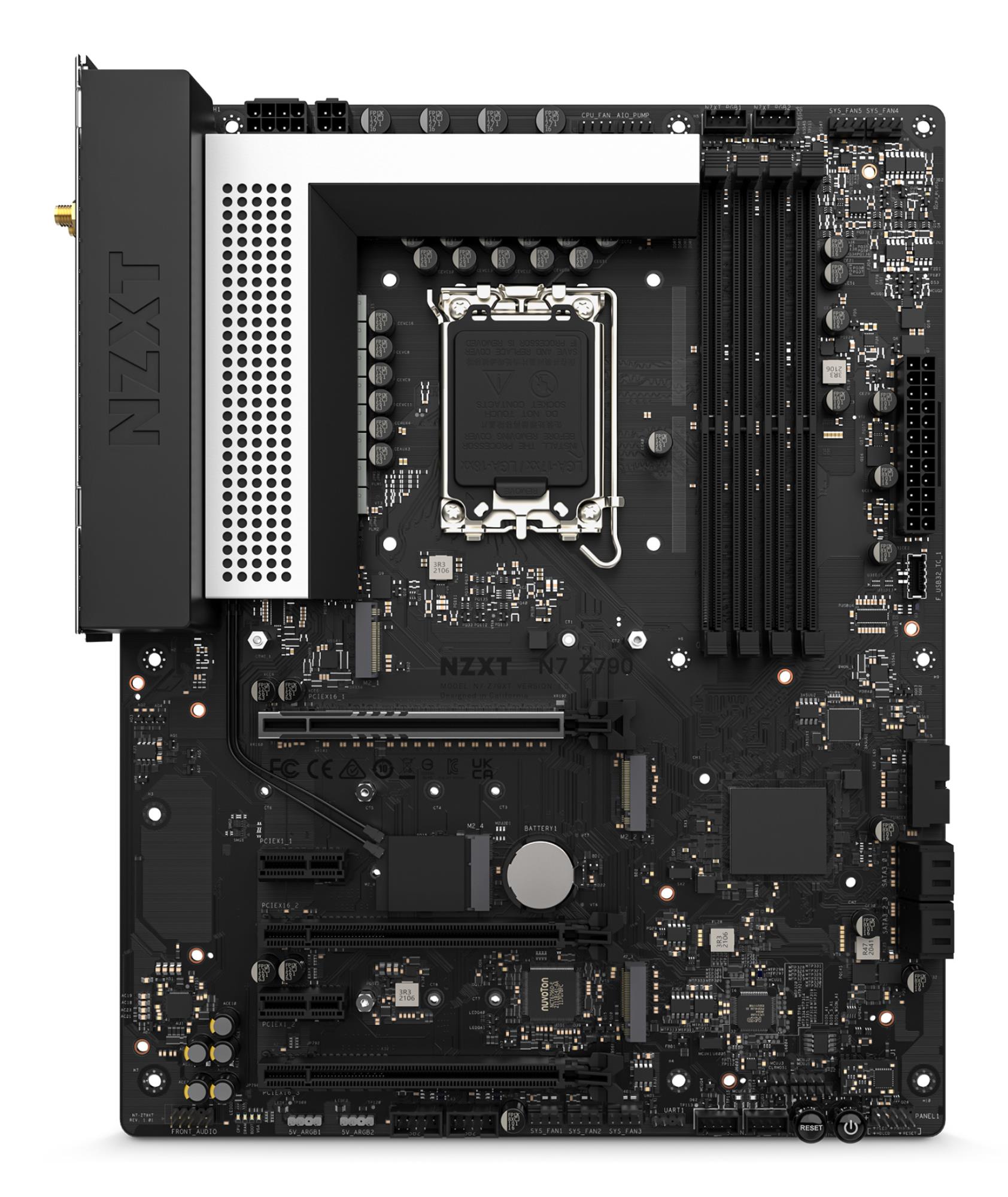

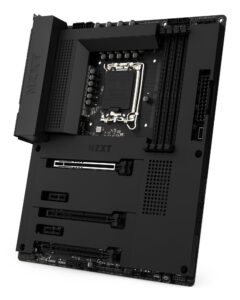

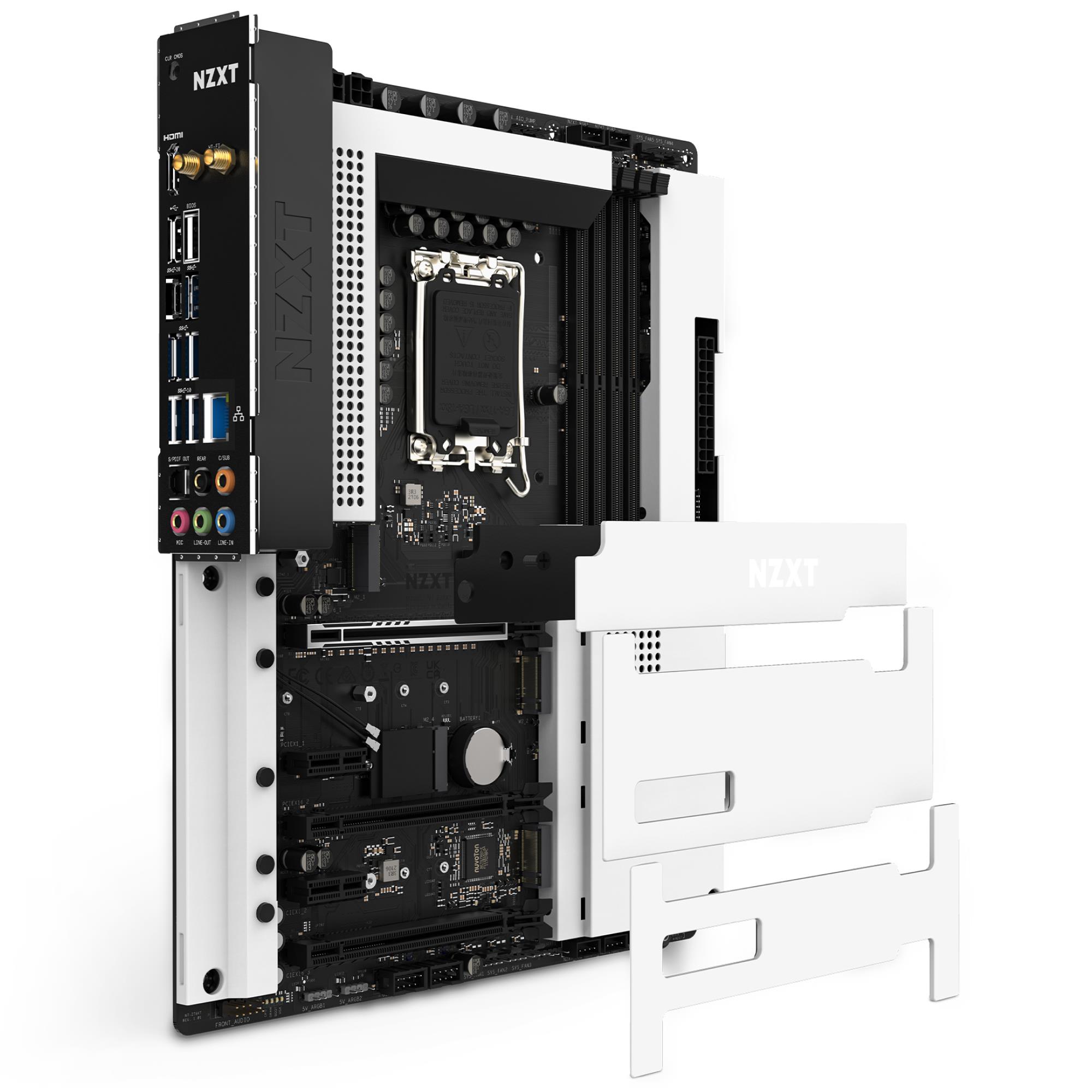

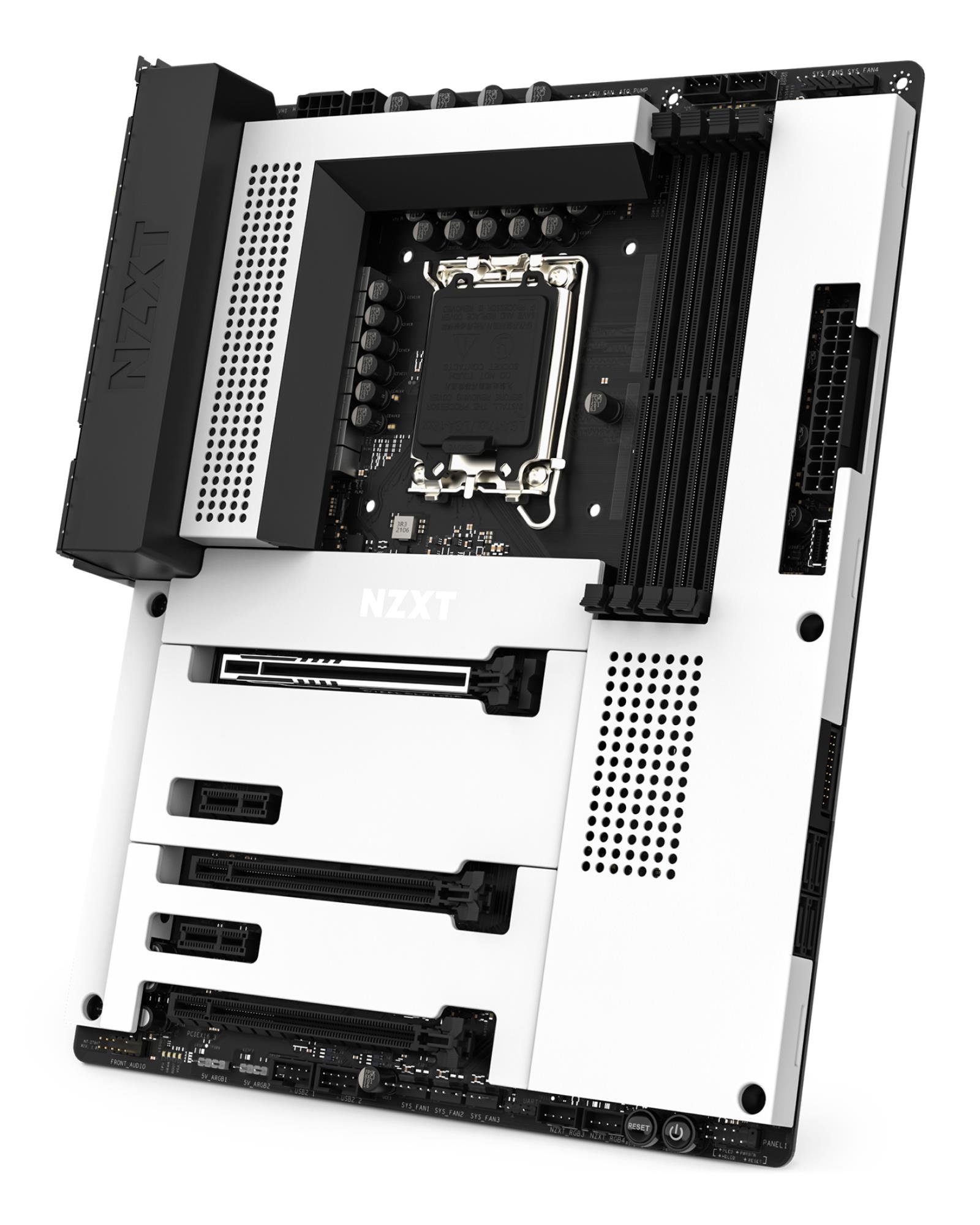

This motherboard enables a visually seamless backdrop for any build with all the features of the new Intel Z790 chipset.
| Vendor | NZXT |
|---|---|
| M.2 | 1 |
| PCI-Express 3.0 1x | 2 |
| PCI-Express 4.0 16x | 2 |
| PCI-Express 5.0 16x | 1 |
| Audio port | 5 |
| HDMI | 1 |
| Optical S/PDIF | 1 |
| RJ12 | 1 |
| USB 2.0 | Yes |
| USB 3.2 | Yes |
| USB 3.2 type B | 2 |
| USB-C | Yes |
| Bluetooth | Yes |
| SATA | Yes |
| USB 3.0 | No |
| WiFi | Yes |
| Model | N7-Z79XT-W1 |
| Chipset | Intel Z790 |
| Socket | LGA1700 |
| Form Factor | ATX |
| Memory type | DDR5 |
| Frequency speed | 7200 MHz |
| Memory slots | 4 |
| Integrated video | Depending on CPU |
| Integrated LAN | 2.5 Gigabit |
| Integrated audio | Realtek ALC1220 |
| Included Accessories | N7 Z790 Motherboard -1 |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0117 cubm |
| Product Net Weight | 1.5 kg |
| Unit Calculated Weight | 2.32 kg |
| Summary | NZXT N7 Z790. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,…. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax) |
| Compatible processor series | Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold |
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Supported processor sockets | LGA 1700 |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speeds | 5000/5066/5100/5133/5200/5300/5333/5400/5600/5800/6000/6200/6400/6600/6666/6800/7000/7200/7400/7600/7800/7900/7950/8000/8333 MHz |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Number of storage drives supported | 7 |
| RAID levels | 0/1/10 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,PCI Express 4.0,SATA III |
| Supported storage drive types | HDD & SSD |
| HDCP | Yes |
| Parallel processing technology support | Not supported |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Front panel audio connector | Yes |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Digital audio optical out | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Headphone outputs | 5 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB connector type | USB Type-A/USB Type-C |
| WiFi-AP antenna jack | 2 |
| Bluetooth version | 5.2 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| LAN controller | Dragon RTL8125BG |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax) |
| Audio chip | Realtek ALC1220 |
| Audio output channels | 8 channels |
| Component for | PC |
| Motherboard chipset | Intel Z790 |
| Motherboard chipset family | Intel |
| Motherboard form factor | ATX |
| Windows operating systems supported | Windows 10 x64/Windows 11 x64 |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Clear CMOS button | Yes |
| Cables included | SATA |
| CnCode | 84733020 |
| Manufacturer Code | N7-Z79XT-W1 |
| ELKO Code | 1435289 |
| Warranty | 36 |
