NZXT H7 Flow RGB. Form factor: Midi Tower, Type: PC, Product colour: White. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5″. Width: 244 mm, Depth: 468 mm, Height: 544 mm
12 laos
12 laos
The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
Angled H7 Flow showing front 3 120mm fansAngled H7 Flow showing front 3 120mm fans
Out-of-the-Box Performance

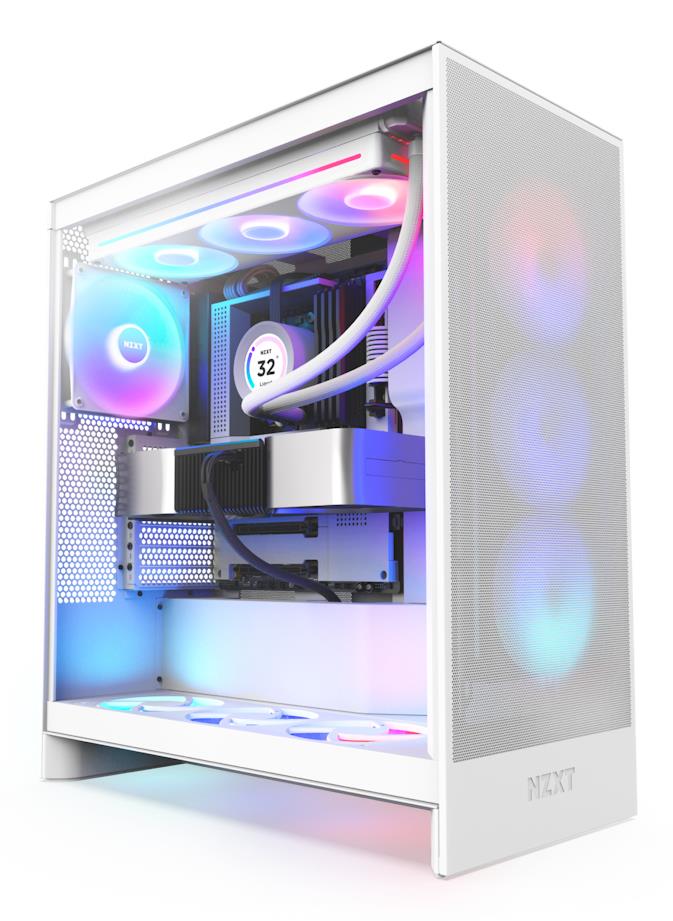

Comes equipped with a F360 RGB Core single-frame fan for out-of-the-box cooling and RGB lighting.
Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.

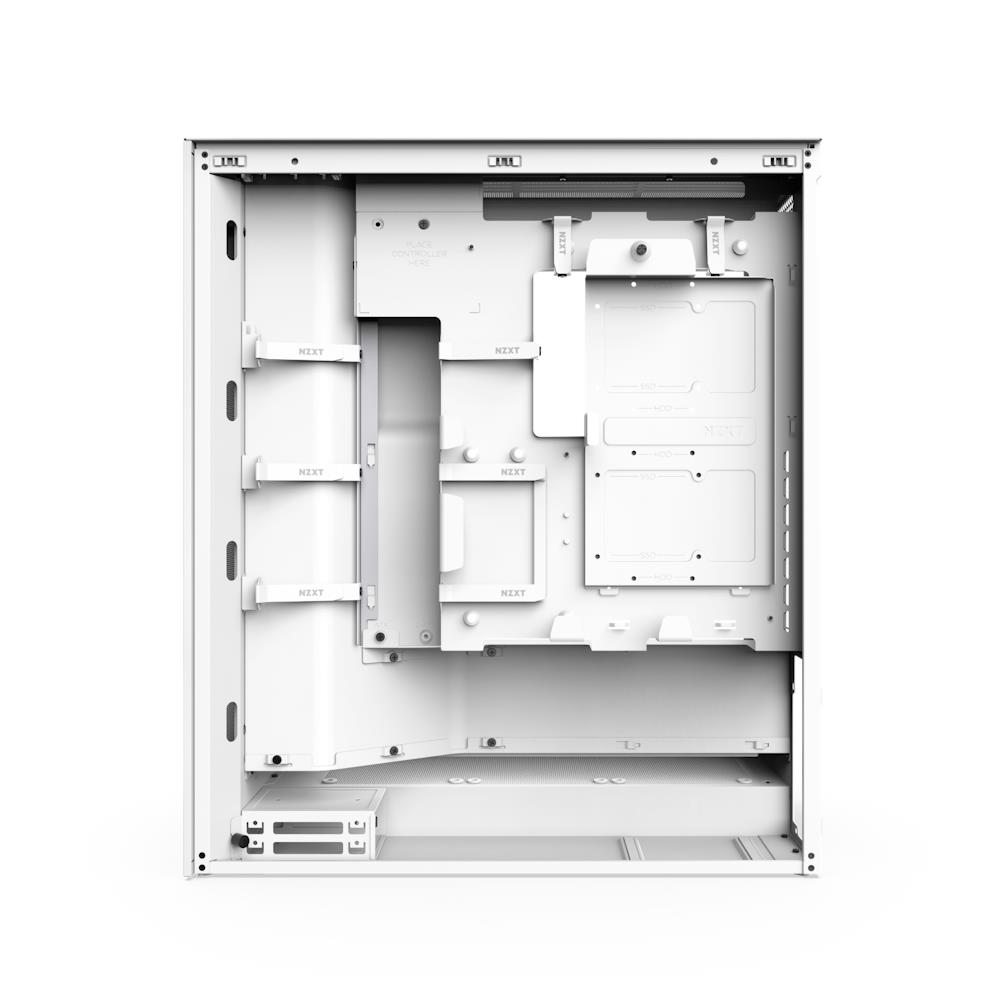

Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.

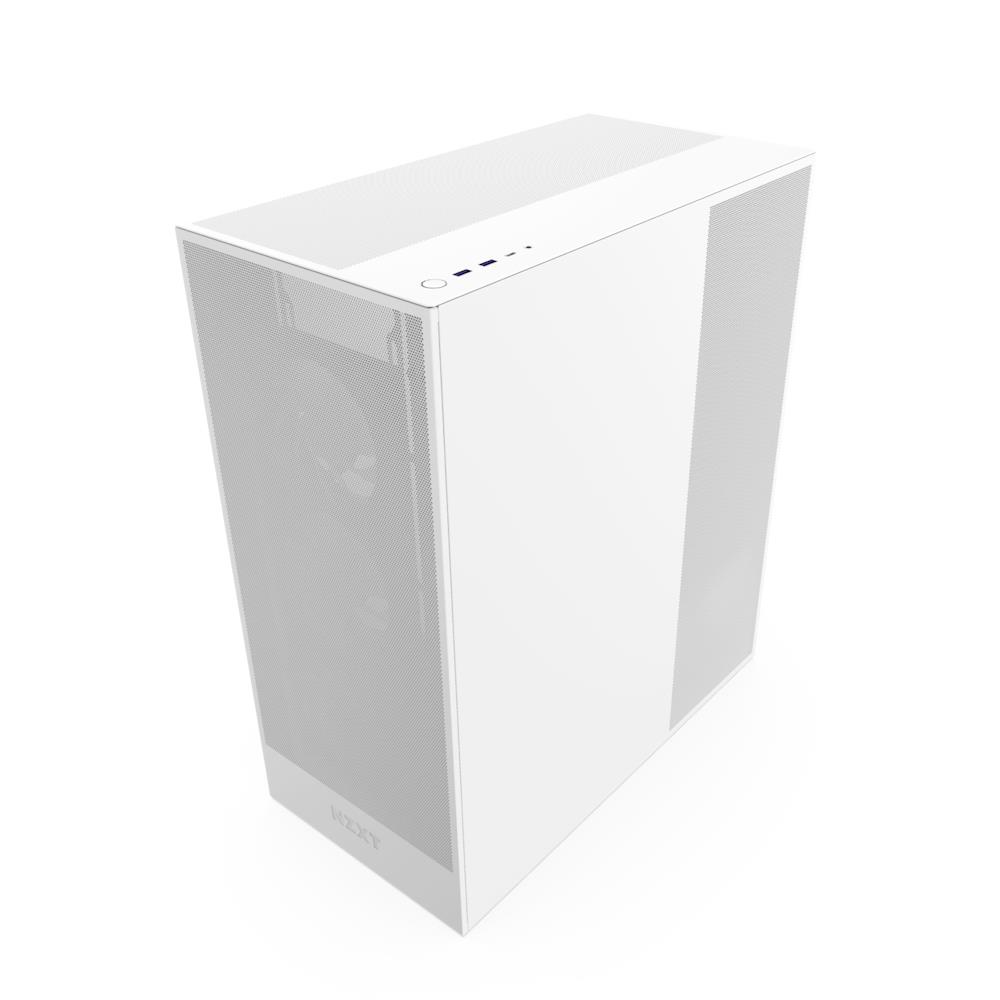

Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.

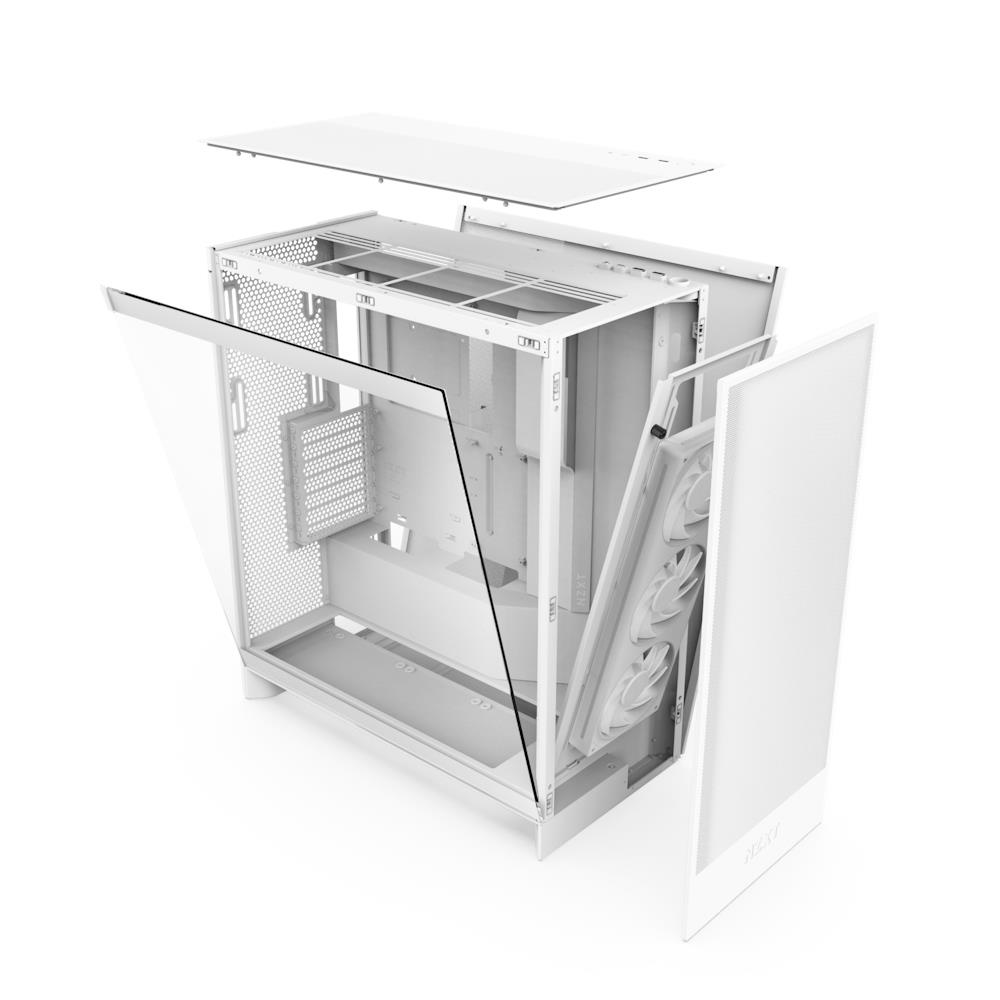

Exploded view of H7 Flow panelsExploded view of H7 Flow panels
Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
| Mõõtmed | 46,8 × 24,4 × 54,4 cm |
|---|---|
| Vendor | NZXT |
| Summary | NZXT H7 Flow RGB. Form factor: Midi Tower, Type: PC, Product colour: White. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5". Width: 244 mm, Depth: 468 mm, Height: 544 mm |
| Cable management | Yes |
| Form factor | Midi Tower |
| Illumination | Yes |
| Material | SGCC/Tempered glass |
| Maximum CPU cooler height | 185 mm |
| Maximum graphics card length | 410 mm |
| Maximum PSU length | 200 mm |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 2 |
| On/off button | Yes |
| Product colour | White |
| Reset button | No |
| Side window | Yes |
| Supported motherboard form factors | ATX/EATX/micro ATX/Mini-ITX |
| Tempered glass panel(s) | Yes |
| Type | PC |
| Power supply included | No |
| Audio output | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Fan 2 maximum air pressure | 1.27 mmH2O |
| Fan 2 maximum airflow | 50.1 cfm |
| Fan speed | 1200 – 1500 RPM |
| Fan speed control | No |
| Front fans diameters supported | 120/140 mm |
| Front fans installed | 3x 120 mm |
| Front radiator sizes supported | 360/420 mm |
| Maximum air pressure | 1.27 mmH2O |
| Maximum airflow | 50.1 cfm |
| Number of front fans supported (max) | 3 |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120/140 mm |
| Rear radiator sizes supported | 140 mm |
| Top fans diameters supported | 120/140 mm |
| Top radiator sizes supported | 360 mm |
| Supported HDD sizes | 2.5/3.5 " |
| Warranty period | 2 year(s) |
| Depth | 468 mm |
| Height | 544 mm |
| Weight | 11130 g |
| Width | 244 mm |
| Model name | H7 Flow RGB |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.1148 cubm |
| Unit Calculated Weight | 14.5 kg |
| Manufacturer Code | CM-H72FW-R1 |
| ELKO Code | 1424584 |
| Warranty | 24 |
