NZXT H7 Flow. Form factor: Midi Tower, Type: PC, Product colour: White. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5″. Width: 244 mm, Depth: 468 mm, Height: 544 mm
6 laos
6 laos
The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.

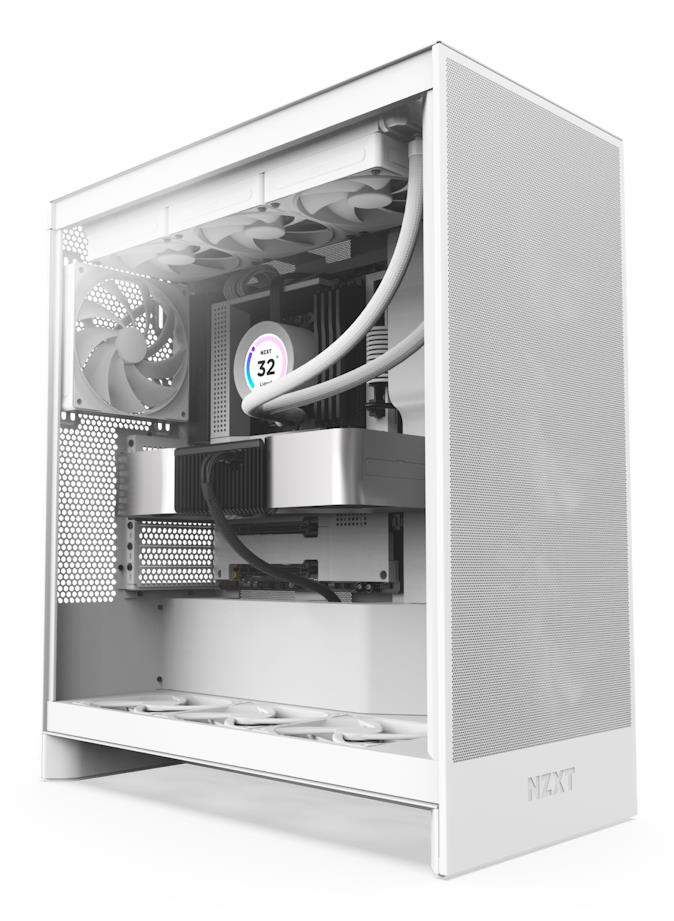

Angled H7 Flow showing front 3 120mm fansAngled H7 Flow showing front 3 120mm fans
Out-of-the-Box Performance
Comes equipped with 3 x 120mm front-mounted fans for exceptional out-of-the-box cooling performance.
Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
H7 Flow showing radiator size supportH7 Flow showing radiator size support
Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.

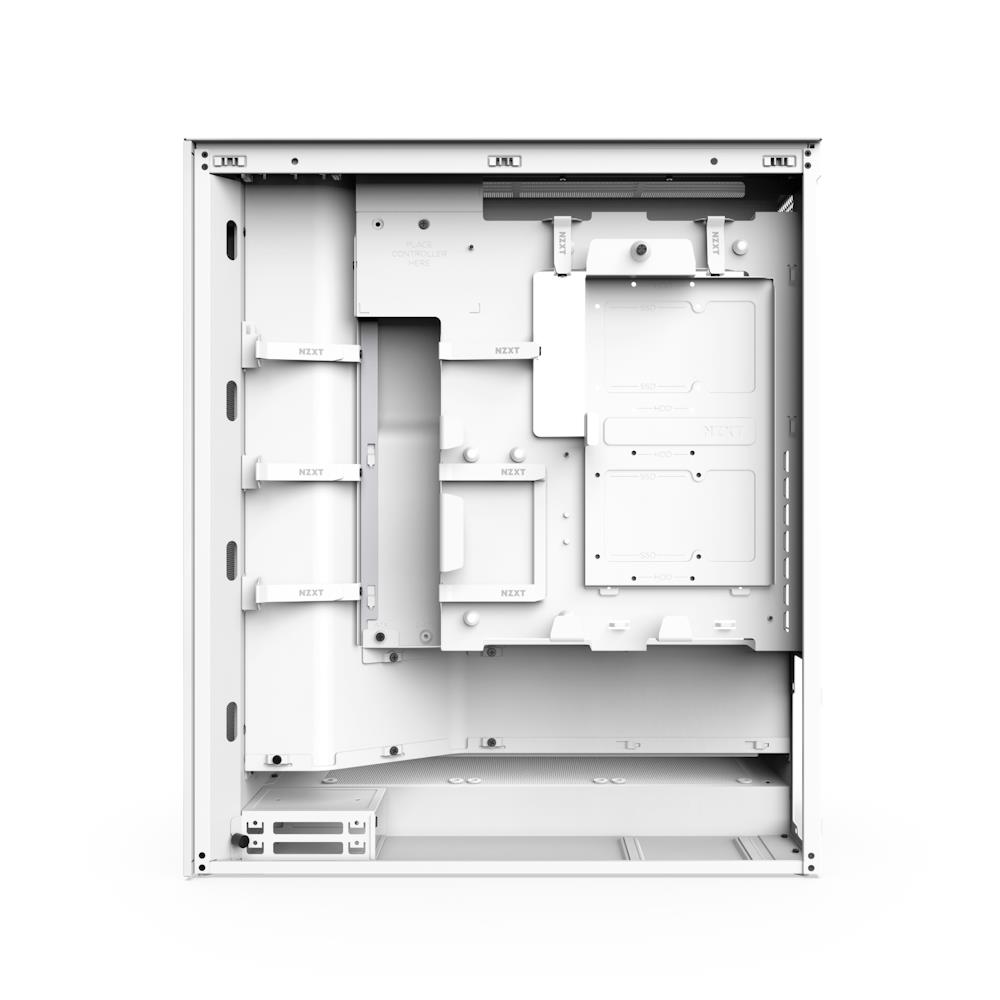

Open Back of H7 Flow showing cable managementOpen Back of H7 Flow showing cable management
Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.

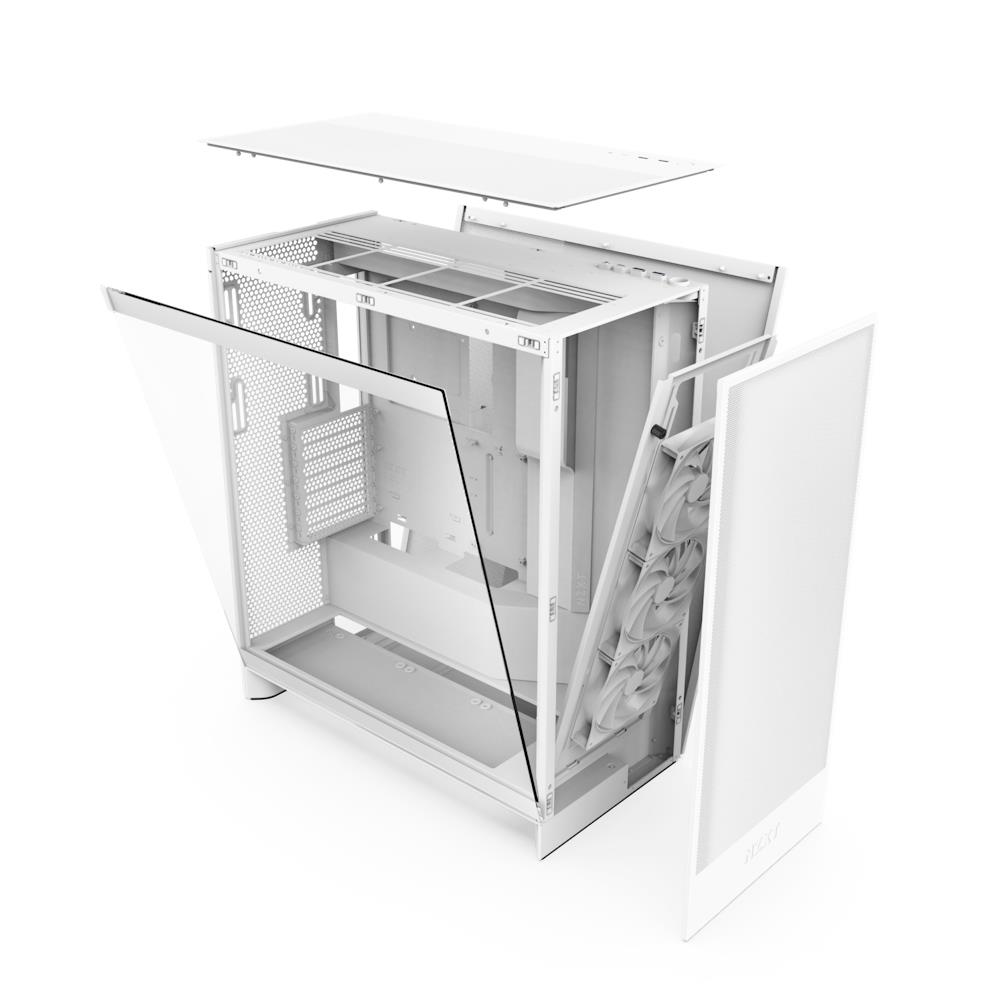

Exploded view of H7 Flow panelsExploded view of H7 Flow panels
Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
| Mõõtmed | 46,8 × 24,4 × 54,4 cm |
|---|---|
| Vendor | NZXT |
| Summary | NZXT H7 Flow. Form factor: Midi Tower, Type: PC, Product colour: White. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5". Width: 244 mm, Depth: 468 mm, Height: 544 mm |
| Cable management | Yes |
| Form factor | Midi Tower |
| Material | SGCC/Tempered glass |
| Maximum CPU cooler height | 185 mm |
| Maximum graphics card length | 410 mm |
| Maximum PSU length | 200 mm |
| Number of 2.5" bays | 4 |
| Number of 3.5" bays | 2 |
| On/off button | Yes |
| Product colour | White |
| Reset button | No |
| Side window | Yes |
| Supported motherboard form factors | ATX/EATX/micro ATX/Mini-ITX |
| Tempered glass panel(s) | Yes |
| Type | PC |
| Power supply included | No |
| Audio output | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Fan 2 maximum air pressure | 1.05 mmH2O |
| Fan 2 maximum airflow | 60.2 cfm |
| Fan speed | 1200 – 1500 RPM |
| Fan speed control | No |
| Front fans diameters supported | 120/140 mm |
| Front fans installed | 3x 120 mm |
| Front radiator sizes supported | 360/420 mm |
| Maximum air pressure | 1.05 mmH2O |
| Maximum airflow | 60.2 cfm |
| Number of front fans supported (max) | 3 |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 3 |
| Rear fans diameters supported | 120/140 mm |
| Rear radiator sizes supported | 140 mm |
| Top fans diameters supported | 120/140 mm |
| Top radiator sizes supported | 360 mm |
| Supported HDD sizes | 2.5/3.5 " |
| Warranty period | 2 year(s) |
| Depth | 468 mm |
| Height | 544 mm |
| Weight | 11130 g |
| Width | 244 mm |
| Model name | H7 Flow |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.1167 cubm |
| Unit Calculated Weight | 14 kg |
| Manufacturer Code | CM-H72FW-01 |
| ELKO Code | 1424582 |
| Warranty | 24 |
