NZXT C850 Gold ATX 3.1. Total power: 850 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: BIS, BSMI, CCC, CE, Federal Communications Commission (FCC), KC, RCM, UKCA, cTUVus
Laost otsas
Laost otsas

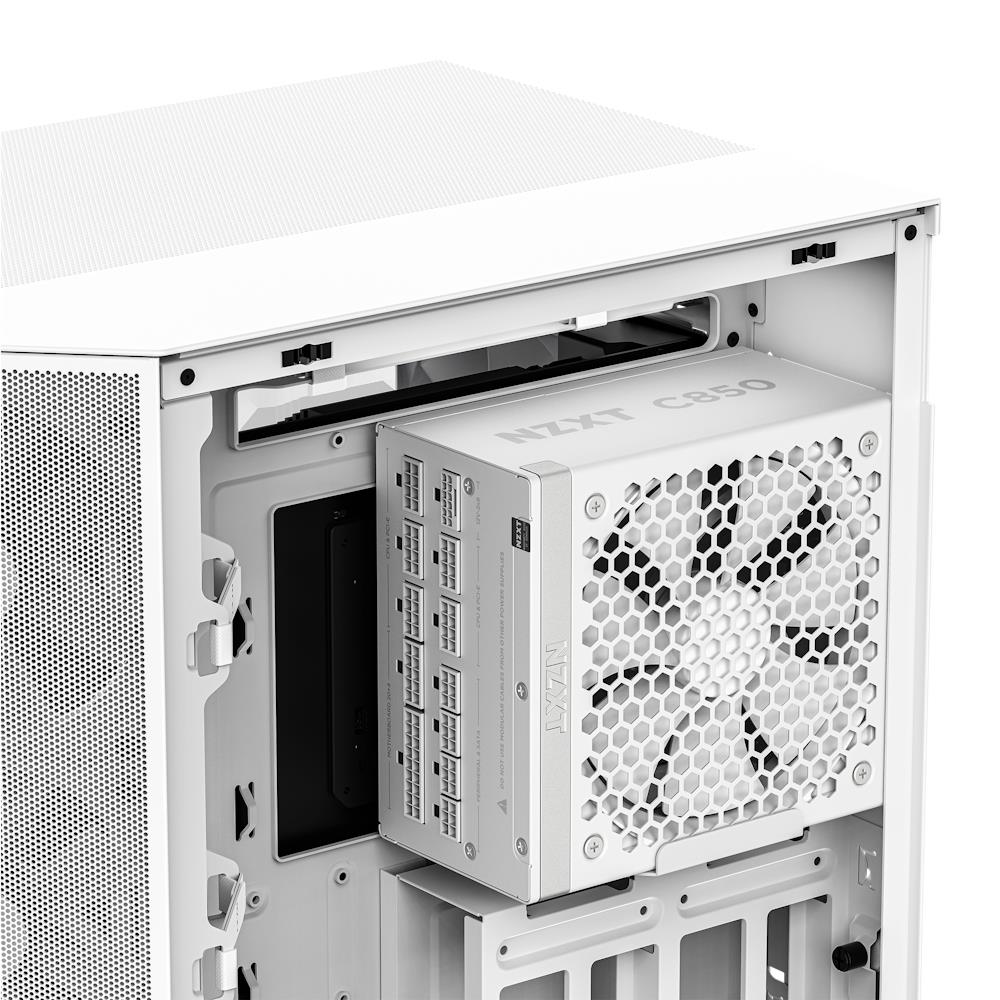

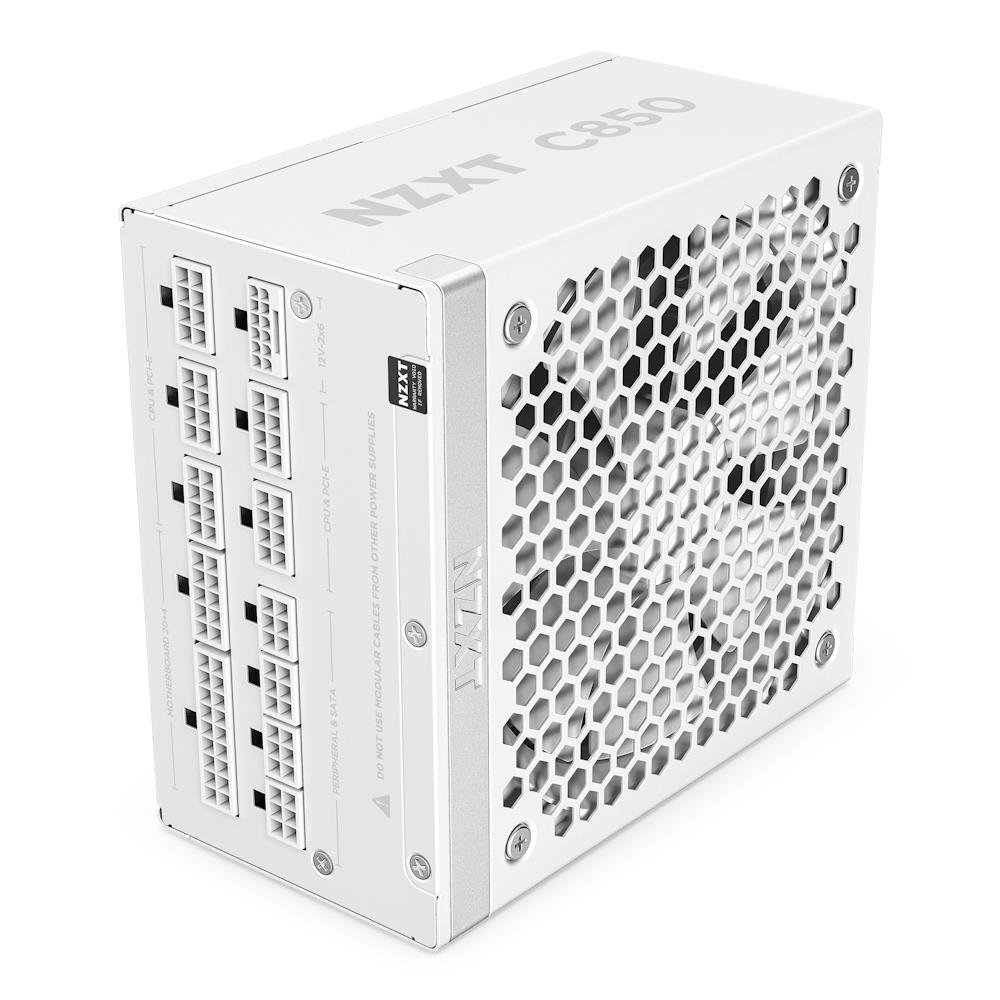

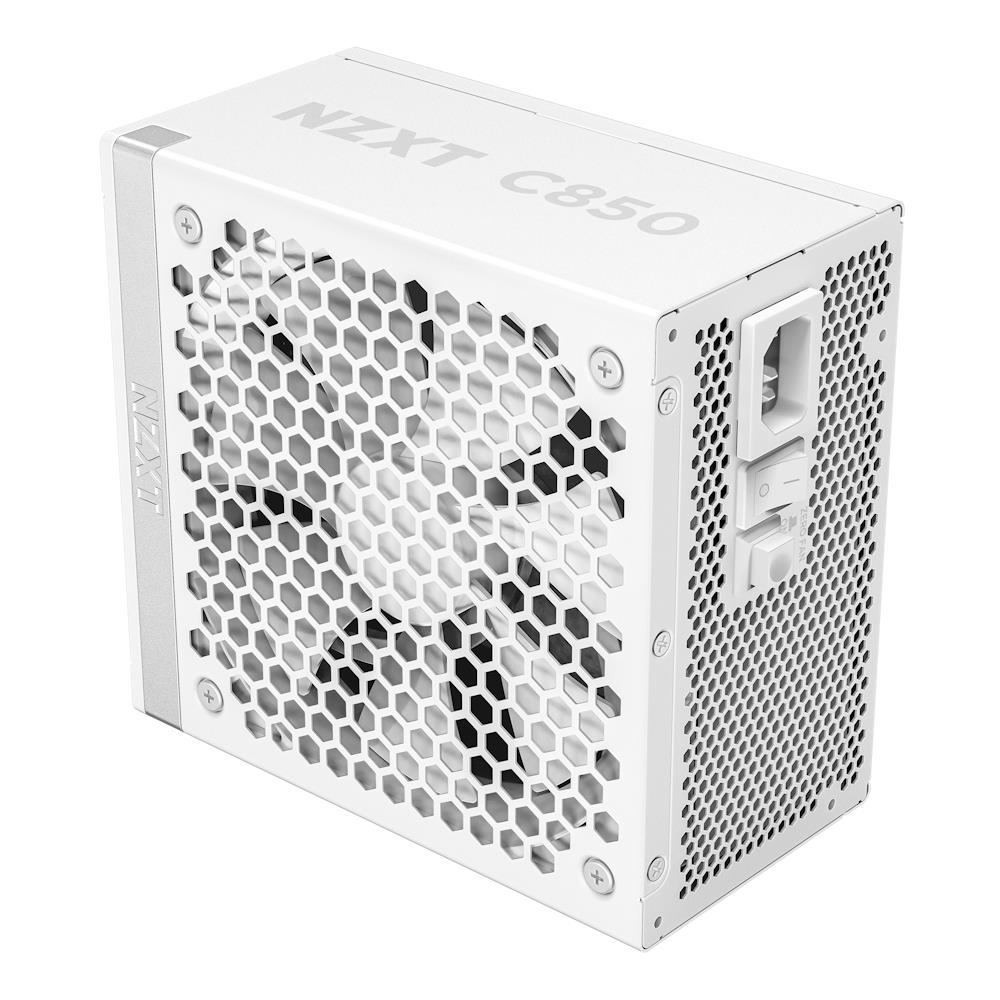

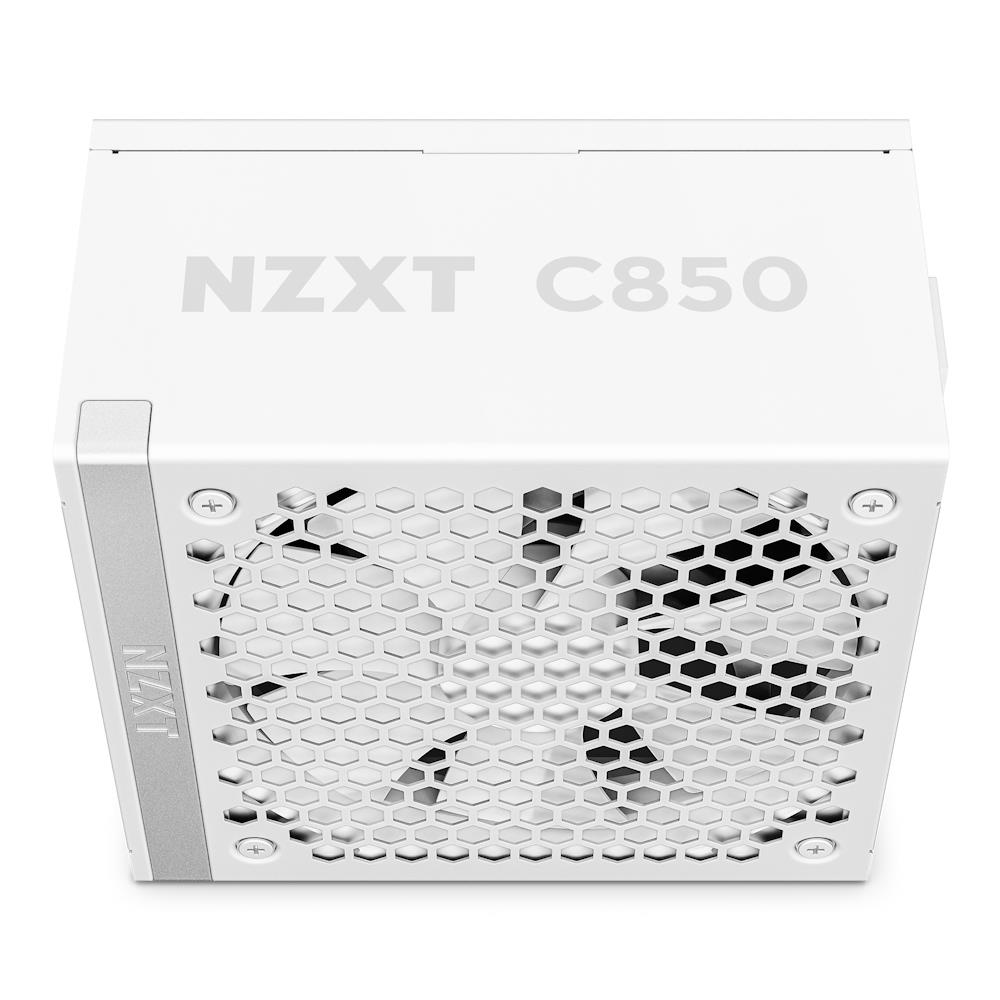

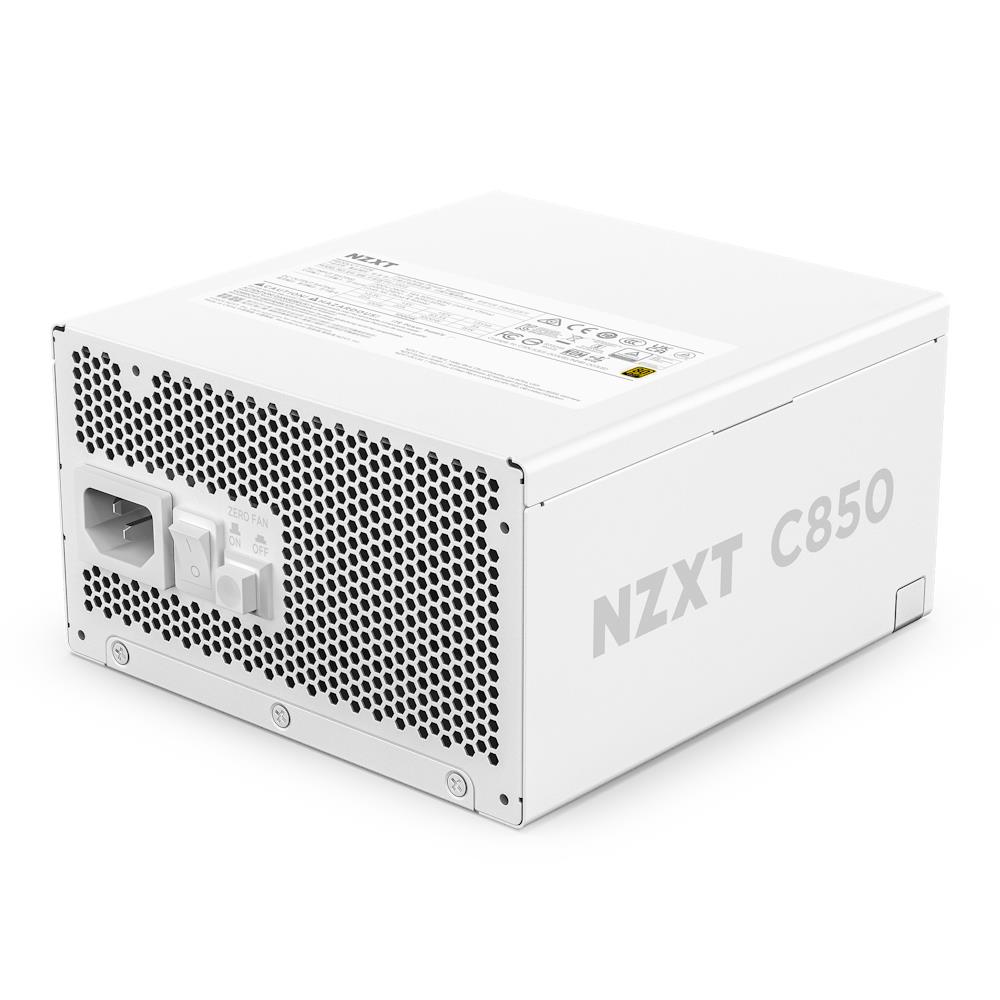

850 Watt 80 PLUS Gold Fully Modular ATX 3.1 PSU
Designed for maximum performance with minimal noise, NZXT C Series Gold ATX 3.1 PSUs are ready to fuel the demands of top-tier GPUs and CPUs.
NZXT Gold ATX 3.1 PSU
ATX 3.1 compliant PSUs featuring high efficiency, low noise, and premium construction.
ATX 3.1 Compliant
ATX 3.1 powers high-performance components with stable delivery and improved efficiency.
40 Series Ready
12V-2×6 cable delivers up to 600 watts of power to NVIDIA® GeForce RTX™ 40 Series GPUs.
Certified for High Efficiency & Low Noise
80 PLUS Gold Efficiency, Cybenetics Gold Efficiency, and Cybenetics A- Noise Level Ratings.
Silence is Golden
135mm FDB fan with Zero Fan Mode stops spinning under 50% load for total silence.
100% Japanese Capacitors
Improved hold-up time and reduced ripple noise for stable, reliable power delivery.

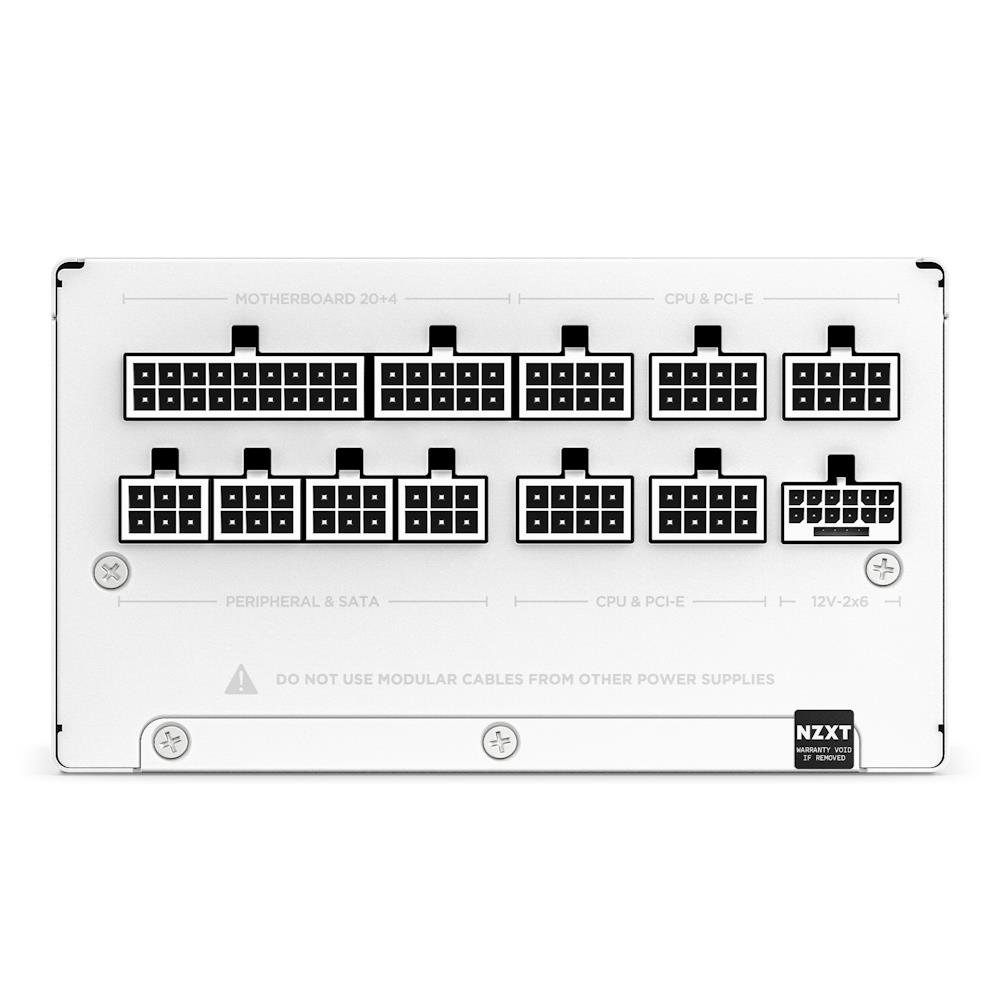

Fully Modular
Only connect the cables needed to keep a tidy build. Full cable set included.
Space-Saving Size
Compact form factor frees up room for cable management and improved airflow.
Peace of Mind
Backed by a 10-year warranty and reliable customer support.
| Vendor | NZXT |
|---|---|
| Summary | NZXT C850 Gold ATX 3.1. Total power: 850 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 150,500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: White, Cooling type: Active, Fan diameter: 13.5 cm. Compliance certificates: BIS, BSMI, CCC, CE, Federal Communications Commission (FCC), KC, RCM, UKCA, cTUVus |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 – 240 V |
| Combined power (+12V) | 850 W |
| Combined power (+3.3V) | 120 W |
| Combined power (+5V) | 15 W |
| Combined power (+5Vsb) | 15 W |
| Efficiency | 91.7 % |
| Input current | 10 – 5 A |
| Max output current (+12V) | 70.83 A |
| Max output current (+3.3V) | 22 A |
| Max output current (+5Vsb) | 3 A |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current/Over power/Over voltage/Overheating/Short circuit/Under voltage |
| Total power | 850 W |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Fully-Modular |
| CPU power cable length | 700 mm |
| CPU power connector (4+4 pin) | Yes |
| Motherboard power cable length | 600 mm |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 12 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (6+2 pin) | 3 |
| Peripheral (Molex) power cable length | 150/500 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| SATA power cable length | 150/500 mm |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.1 |
| Bearing technology | FDB |
| EPS version | 2.92 |
| Mean time between failures (MTBF) | 100000 h |
| Noise level | 44.5 dB |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| Cooling type | Active |
| Fan diameter | 135 mm |
| Fan location | Top |
| Fan speed | 0 – 2300 RPM |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Product colour | White |
| Operating temperature (T-T) | 0 – 50 °C |
| Compliance certificates | BIS/BSMI/CCC/CE/cTUVus/Federal Communications Commission (FCC)/KC/RCM/UKCA |
| Depth | 160 mm |
| Height | 86 mm |
| Width | 150 mm |
| Warranty period | 10 year(s) |
| Units per Shipping Box | 4 |
| Unit Calculated Volume | 0.00988 cubm |
| Unit Calculated Weight | 3.8 kg |
| CnCode | 85044095 |
| Manufacturer Code | PA-8G2BW-EU |
| ELKO Code | 1424633 |
| Warranty | 72 |
