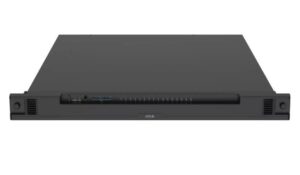

AXIS Camera Station S2224 Appliance
All-in-one recorder with integrated 24 channel PoE switch for high-definition surveillance
All-in-one solution with integrated PoE switch
Flexible storage options including RAID
Ease of installation
Validated with extensive support
AXIS Camera Station licenses included
AXIS Camera Station S2224 Appliance is an all-in-one recording solution with integrated PoE switch designed to deliver reliable high-definition surveillance. This easy-to-install recorder is available as a rack server with 24 video channels, and includes a storage capacity of 12 TB plus the possibility to add extra hard disks. It comes with 24 AXIS Camera Station licenses and preconfigured software to minimize installation time.
| Kaal | 11 kg |
|---|---|
| Vendor | AXIS |
| Rack 1U | Yes |
| Audio-In | 1 |
| Audio-Out | 1 |
| DisplayPort | 1 |
| HDMI | 1 |
| RJ45 | 26 |
| SFP | 1 |
| USB 2.0 | 2 |
| USB 3.1 | 1 |
| Number of Channels | 24 |
| Number of drives/bays | 4 |
| HDD Capacity | 12TB |
| CPU | Intel® Core i5 |
| Memory (RAM) | 8GB |
| PoE ports | 24 |
| Included Accessories | Rack rails, power cord |
| Power supply requirements | 100 – 240 V AC, 6.5-2.5 A, 50/60 Hz |
| Power consumption | 520 Watts |
| Dimensions | 476 x 440 x 45 mm |
| Operating temperature range | 0 °C to 40 °C |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.09135 cubm |
| Product Net Weight | 11 kg |
| Unit Calculated Weight | 14.6 kg |
| CnCode | 84715000 |
| Manufacturer Code | 01583-002 |
| ELKO Code | 1275259 |
| Warranty | 60 |
| Mounting Type — Rack 1U | Yes |
| Input/Output connectors — Audio-In | 1 |
| Input/Output connectors — Audio-Out | 1 |
| Input/Output connectors — DisplayPort | 1 |
| Input/Output connectors — HDMI | 1 |
| Input/Output connectors — RJ45 | 26 |
| Input/Output connectors — SFP | 1 |
| Input/Output connectors — USB 2.0 | 2 |
| Input/Output connectors — USB 3.1 | 1 |
