Axis 02649-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Field of view (FOV) angle: 55°, Camera pixel size: 17 µm. Sensor type: Microbolometer, Sensor type (thermal module): Noise equivalent temperature difference (NETD). Lens diameter: 7 mm
Laost otsas
Laost otsas
Ideal for patrolling large sites, this robust thermal camera lets you remotely monitor temperatures and trigger temperature-based events. It offers early fire detection analytics and built-in cybersecurity features.
What’s the temperature?

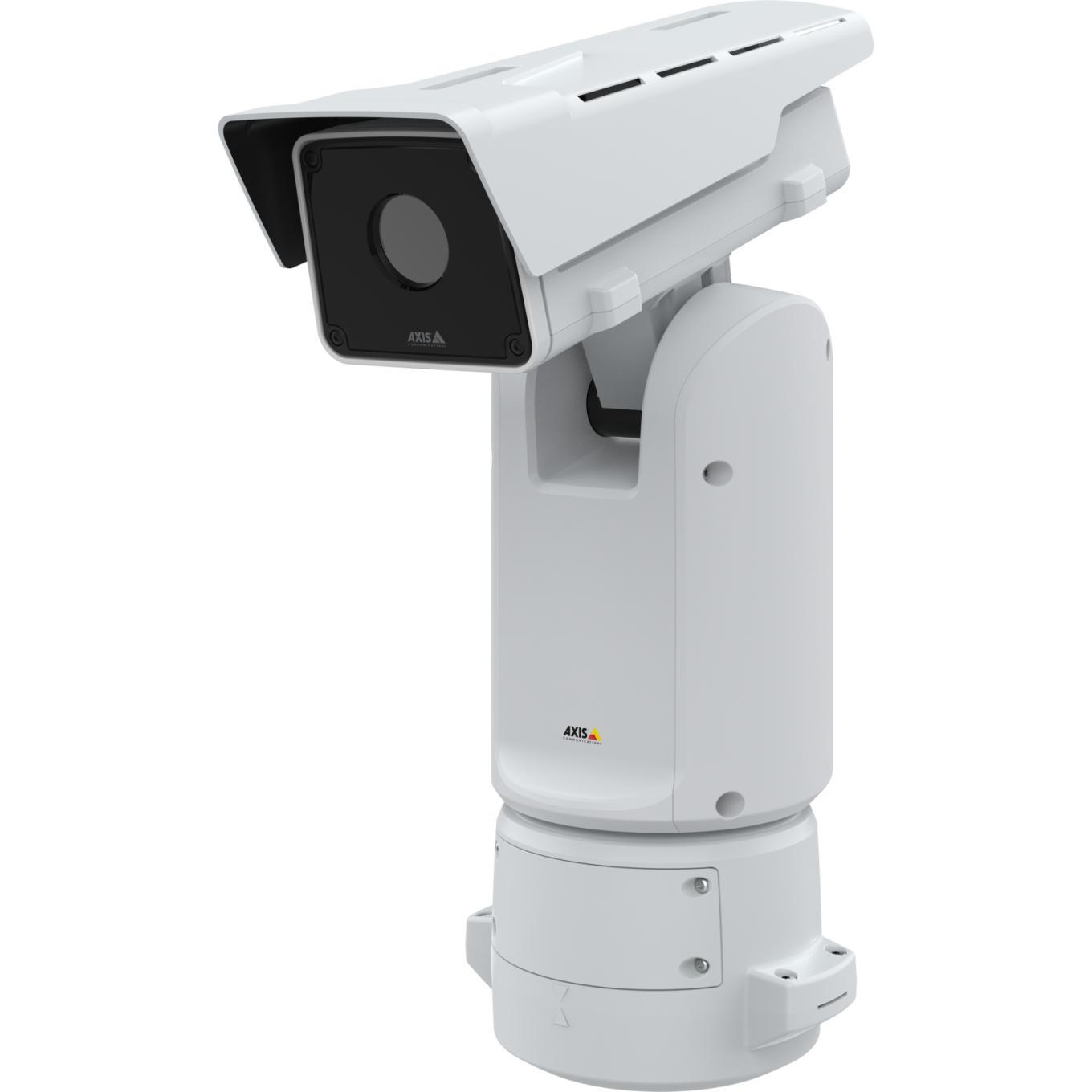

AXIS Q2101-TE lets you remotely monitor temperatures over large areas—automatically or manually with just one camera. It can monitor temperatures from -40 °C to 350 °C (-40 °F to 660 °F) with several trigger types such as lowest and highest temperature or temperature gradient. When mounted on a positioning unit (sold separately), this robust camera provides a 360° unobstructed field of view. This also enables thermometric guard tour with support for up to 256 presets with 10 polygonal detection areas each. Spot temperature reading acts as a visual aid and lets you see the exact temperature in a specific area. Additionally, temperature metadata enables statistics, follow up, and process analysis.
Detect early signs of fire
Built on ARTPEC 8, the latest Axis system-on-chip (SoC), AXIS Q2101-TE offers powerful analytics capabilities. It comes with early fire detection analytics preinstalled making it possible to set triggers and get warnings about early signs of fire or potential overheating. Using smart filtering, the analytics can disregard uninteresting hot objects such as the warm exhausts of passing work vehicles for reduced false alarms.
Depend on it – robust and secure
This reliable, IK10-, NEMA 4X-rated thermal camera is ideal for monitoring critical assets. It includes built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network. It also includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. Thanks to electronic image stabilization (EIS), this robust camera provides smooth video even in scenes with vibrations. And, with four I/O ports and support for edge-to-edge technology it’s possible to connect a network speaker to enable audio alarms.
| Vendor | AXIS |
|---|---|
| Audio-Out | 1 |
| Mic/Line In | 1 |
| MicroSD Card Slot | 1 |
| RJ45 | 1 |
| RS-485 | 1 |
| Terminal block | 1 |
| Model | Q2101-TE 7 mm 8.3 fps |
| Network Camera Type | Outdoor/Thermal |
| Focal Length | 7mm |
| Power options | PoE |
| Power supply requirements | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 2 Class 4 |
| Power consumption | 4.6 Watts |
| Environment | Outdoor |
| Operating temperature range | -40 °C to 50 °C |
| Dimensions | 404 x 159 x 150 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.02608 cubm |
| Product Net Weight | 3.3 kg |
| Unit Calculated Weight | 5 kg |
| Summary | Axis 02649-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Field of view (FOV) angle: 55°, Camera pixel size: 17 µm. Sensor type: Microbolometer, Sensor type (thermal module): Noise equivalent temperature difference (NETD). Lens diameter: 7 mm |
| Built-in processor | Yes |
| Certification | CSA, UL/cUL, UKCA, CE, KC, VCCI, RCM |
| Connectivity technology | Wired |
| Languages support | English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese |
| Number of languages | 12 |
| Placement supported | Indoor |
| Processor model | ARTPEC-8 |
| Thermal module | Yes |
| Thermal sensitivity (NETD) | 40 mK |
| Type | IP security camera |
| Form factor | Box |
| Housing material | Aluminium |
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Mounting type | Wall |
| Product colour | White |
| Camera pan control | Yes |
| Camera pixel size | 17 µm |
| Camera tilt control | Yes |
| Field of view (FOV) angle | 55 ° |
| Sensor type | Microbolometer |
| Sensor type (thermal module) | Noise equivalent temperature difference (NETD) |
| Lens diameter | 7 mm |
| Maximum aperture number | 1.18 |
| Night vision | No |
| Frame rate | 8.3 fps |
| Gain control type | Auto |
| Maximum resolution | 768 x 576 pixels |
| Privacy masking | Yes |
| Video compression formats | H.264/H.265/M-JPEG |
| Video recording | Yes |
| Video streaming | Yes |
| Audio system | 2-way |
| Audio system full duplex | Yes |
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 8192 MB |
| Internal memory | 2048 MB |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 2 |
| RS-485 ports | 2 |
| Terminal block port | Yes |
| Active tampering alarm | Yes |
| Digest authentication | Yes |
| Fire detection | Yes |
| IP address filtering | Yes |
| Mirror | Yes |
| Network access storage (NAS) | Yes |
| Password protection | Yes |
| Pixel counter | Yes |
| Temperature measurement accuracy | 5 °C |
| Temperature measurement range | -40 – 350 °C |
| Temperature sensor | Yes |
| Video motion detection | Yes |
| DC output voltage | 8,9,10,12,15,16,24,28 |
| Power consumption (max) | 25.5 W |
| Power consumption (Power over Ethernet (PoE)) | 4.6 W |
| Power consumption (typical) | 4.1 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 10 – 100 % |
| Operating temperature (T-T) | -40 – 50 °C |
| Storage relative humidity (H-H) | 5 – 95 % |
| Storage temperature (T-T) | -40 – 65 °C |
| Depth | 404 mm |
| Height | 159 mm |
| Weight | 3300 g |
| Width | 150 mm |
| Manual | Yes |
| Number of cameras | 1 |
| Packaging content | TORX T30 bit, TORX T20 screwdriver, terminal block connectors, connector guard, cable gaskets, owner authentication key |
| Manufacturer Code | 02649-001 |
| ELKO Code | 1399293 |
| Warranty | 60 |
