Axis 02164-031. Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, Form factor: Box. Minimum illumination: 0.05 lx, Angle of rotation: 270°, Camera shutter speed: 1/47500 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8″). Maximum resolution: 2688 x 1512 pixels, Video compression formats: H.264, H.265, M-JPEG, Supported graphics resolutions: 2688 x 1512
Laost otsas
Laost otsas

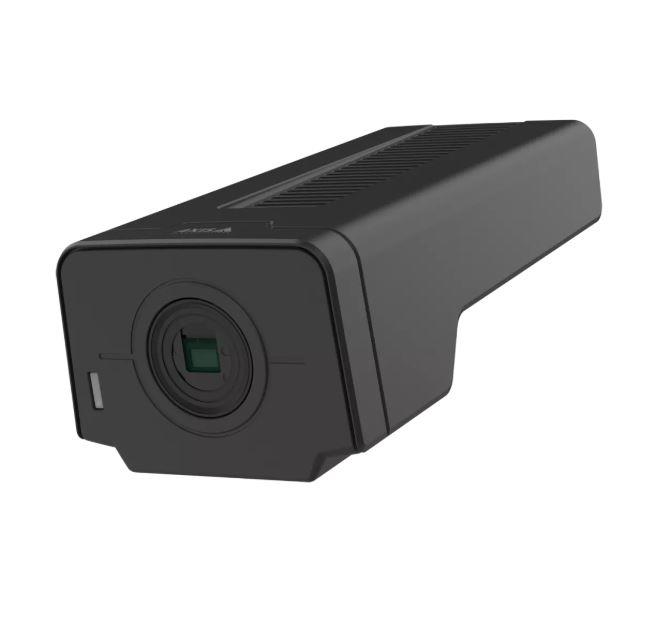

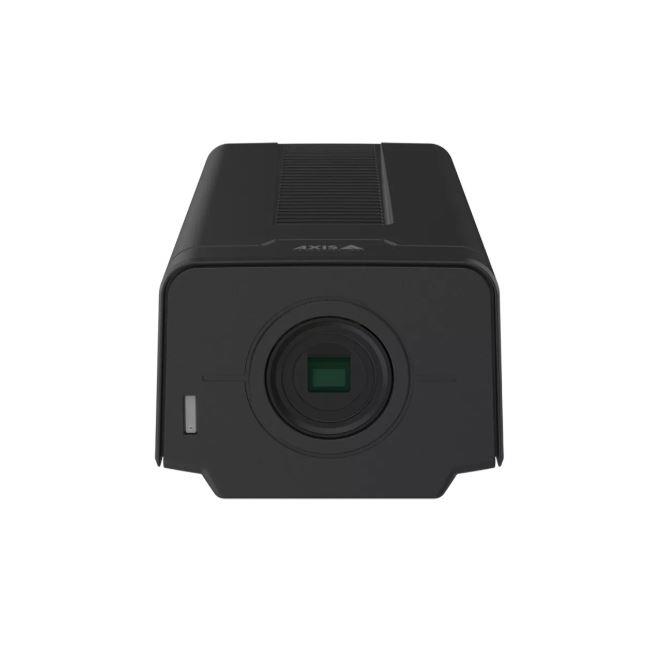

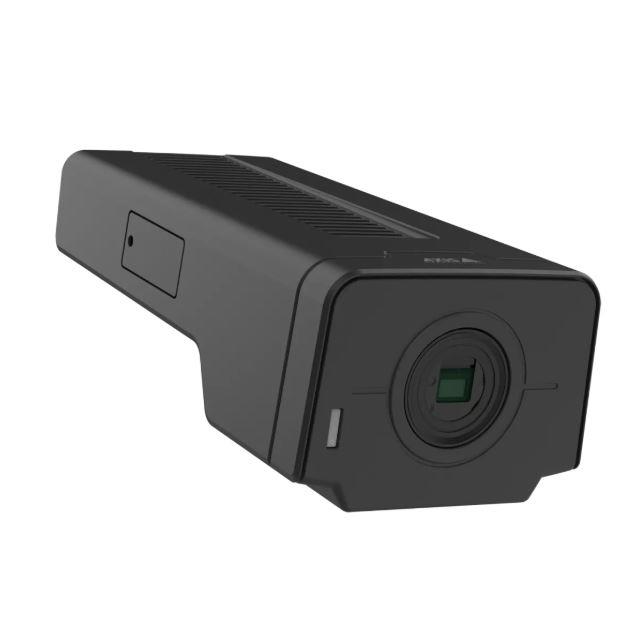

With 4 MP resolution at up to 60 fps, a 1/1.8” sensor, and Lightfinder 2.0, AXIS Q1656-B delivers exceptional video quality even in poor light conditions. Based on the latest Axis system-on-chip (SoC), it offers support for advanced features and applications based on deep learning on the edge. And AXIS Object Analytics provides highly nuanced object classification. With built-in cybersecurity features, it prevents unauthorized access and safeguards your system. This lightweight barebone unit comes without lens for maximum flexibility. It’s designed for retrofitting AXIS T92E20 Outdoor Housing, making it easy to add deep-learning capabilities to existing installations.
| Vendor | AXIS |
|---|---|
| Microphone jack 3.5mm | 1 |
| MicroSD Card Slot | 1 |
| RJ45 | 1 |
| RS-485 | 1 |
| Terminal block | 1 |
| Model | 02164-031 |
| Camera design | Other |
| Network Camera Type | HDTV/Megapixel |
| Resolution | 4 Mega Pixel |
| IR Illumination | Yes |
| Sensor size | 1/1.8" |
| Microphone | Built-in |
| Min. Illumination | 0.01 Lux |
| Effective pixels | 2688×1512 |
| Electronic Shutter Speed | 1/47500s to 1s |
| Power supply requirements | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Environment | Indoor |
| Operating temperature range | -20 °C to 60 °C |
| Included Accessories | Installation guide, Windows® decoder 1-user license, drill hole template, connector kit, RESISTORX® L-key |
| Colour | Black |
| Dimensions | 155 x 80 x 58 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00567 cubm |
| Product Net Weight | 0.4 kg |
| Unit Calculated Weight | 0.73 kg |
| Summary | Axis 02164-031. Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, Form factor: Box. Minimum illumination: 0.05 lx, Angle of rotation: 270°, Camera shutter speed: 1/47500 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Maximum resolution: 2688 x 1512 pixels, Video compression formats: H.264, H.265, M-JPEG, Supported graphics resolutions: 2688 x 1512 |
| Connectivity technology | Wired |
| Infrared (IR) cut-off filter | Yes |
| Placement supported | Indoor & outdoor |
| PTZ control | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Box |
| Mounting type | Wall |
| Product colour | Black |
| Angle of rotation | 270 ° |
| Camera shutter speed | 1/47500 s |
| Minimum illumination | 0.05 lx |
| Optical sensor size | 1/1.8 " |
| Sensor type | CMOS |
| Number of lenses | 1 |
| Gain control type | Auto |
| Image quality adjustment | Brightness/Contrast/Saturation |
| Image stabilizer | Yes |
| Maximum resolution | 2688 x 1512 pixels |
| Noise reduction | Yes |
| Supported graphics resolutions | 2688 x 1512 |
| Video compression formats | H.264/H.265/M-JPEG |
| Video streaming | Yes |
| Audio codecs | 24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz |
| Built-in microphone | Yes |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, MQTT v3.1.1, Sec |
| Card reader integrated | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Terminal block port | Yes |
| Security algorithms | HTTPS/TLS |
| AC input voltage | 10-28 V |
| Power consumption (max) | 7.7 W |
| Power consumption (typical) | 4.6 W |
| Power source type | PoE |
| Operating relative humidity (H-H) | -40 – 65 % |
| Operating temperature (T-T) | -20 – 60 °C |
| Storage relative humidity (H-H) | 5 – 95 % |
| Storage temperature (T-T) | 10 – 85 °C |
| Depth | 80 mm |
| Height | 58 mm |
| Weight | 400 g |
| Width | 155 mm |
| Number of cameras | 1 |
| Doesn't contain | PVC/BFR |
| Manufacturer Code | 02164-031 |
| ELKO Code | 1432852 |
| Warranty | 60 |
