Axis P9117-PV. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Bullet. Minimum illumination: 0.04 lx, Horizontal field of view (thermal module): 176°, Lens viewing angle, vertical: 176°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8″). Focal length range: 1.1 mm
Laost otsas
Laost otsas

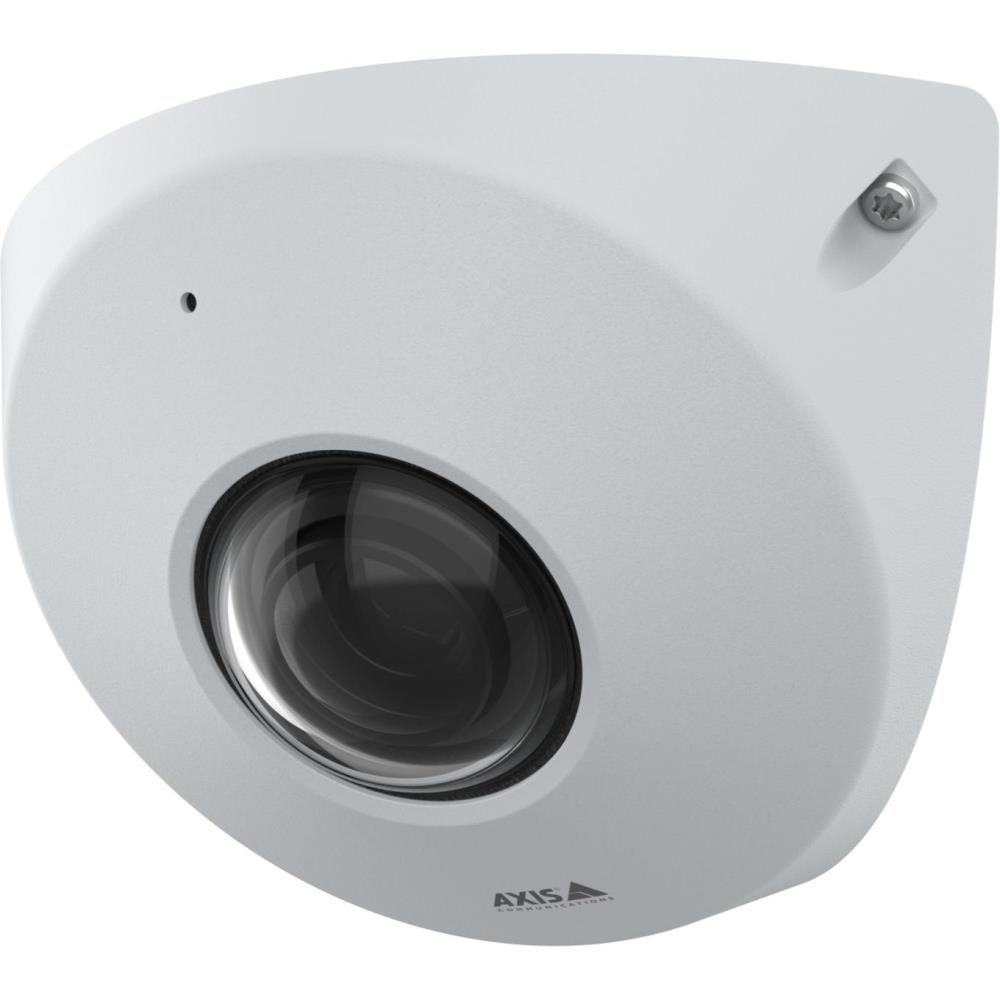

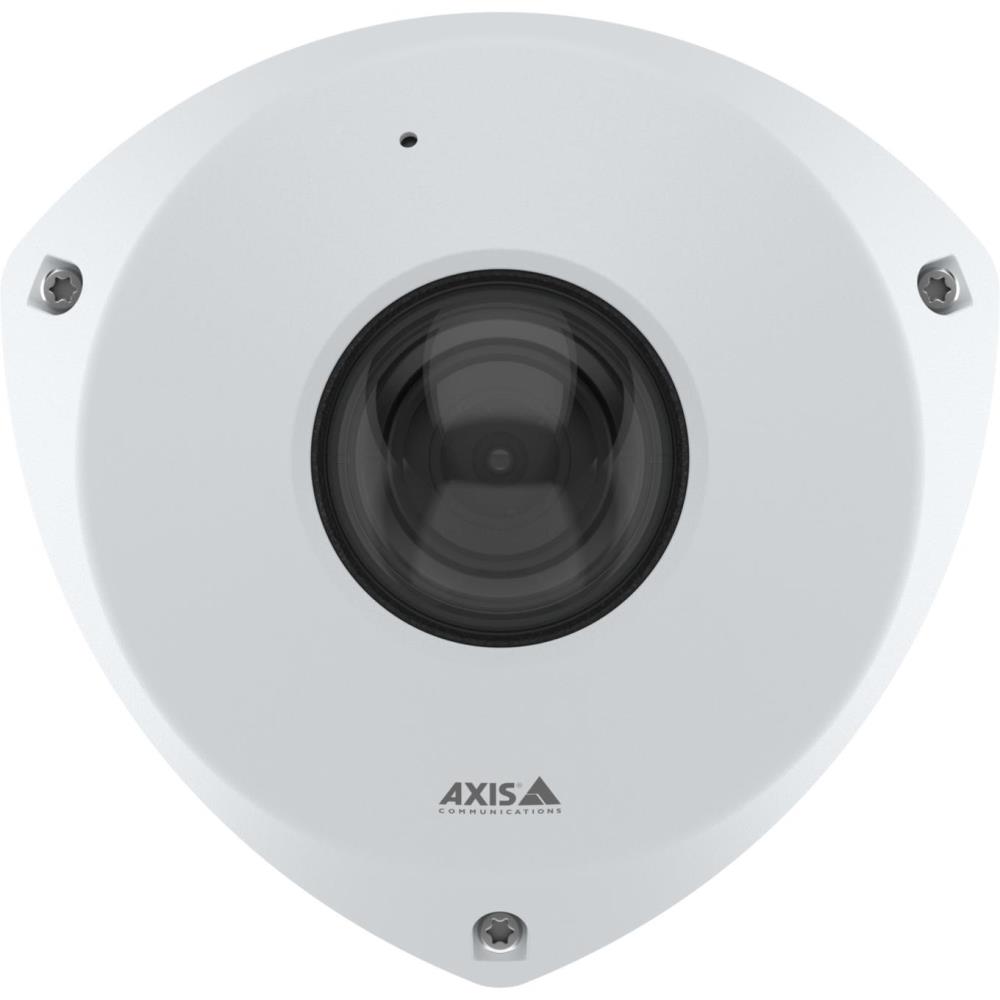

This indoor ligature-resistant (anti-ligature) corner camera delivers 360° panoramic view with no blind spots. Compact and vandal-resistant, it’s easy to clean and install.
Great video performance
AXIS P9117-PV is a 6 MP corner camera that delivers full coverage with no blind spots. It includes Axis Lightfinder 2.0 to capture images with more realistic and saturated colors and sharper images of moving objects. And, with Axis Forensic WDR you’re sure to capture high-quality images even when there’s both dark and light areas in the scene.
Extended possibilities
Built on an Axis system-on-chip, AXIS P9117-PV features Axis edge vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. With this AI-powered camera, you can run advanced analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect and classify different objects of interest. With a built-in microphone, it’s out-of-the-box-ready for AXIS Audio Analytics. In addition, elevator door state detector will display if the elevator door is open unexpectedly which could indicate a safety or service issue.
Easy to install and maintain
AXIS P9117-PV is easy to install, thanks to innovative screw gaskets that hold the screws in place during mounting. With a vandal-resistant, IK10-rated casing, it’s ideal for installation in areas prone to vandalism, such as elevators and stairwells. AXIS TP9801 Cover Steel is also available as an accessory. Furthermore, with an abrasion-and chemical-resistant front cover that’s easy to remove, the window can also be cleaned more thoroughly with detergent or graffiti remover.
| Vendor | AXIS |
|---|---|
| Model | 02864-001 |
| Camera design | Other |
| Resolution | 6 Mega Pixel |
| Focal Length | 1.1 mm |
| Sensor size | 1/1.8” progressive scan RGB CMOS |
| Min. Illumination | 0.04 Lux |
| Electronic Shutter Speed | 1/33500s to 1/5s |
| Power options | PoE |
| Power supply requirements | IEEE802.3af/802.3 at Type 1 Class 3 |
| Operating temperature range | -40°C to 65°C |
| Dimensions | 92 x 146 x 122 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003168 cubm |
| Product Net Weight | 0.76 kg |
| Unit Calculated Weight | 0.95 kg |
| Summary | Axis P9117-PV. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Bullet. Minimum illumination: 0.04 lx, Horizontal field of view (thermal module): 176°, Lens viewing angle, vertical: 176°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 1.1 mm |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Bullet |
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Mounting type | Ceiling |
| Product colour | White |
| Protection features | Vandal proof |
| Camera tilt control | Yes |
| Horizontal field of view (thermal module) | 176 ° |
| Lens viewing angle, vertical | 176 ° |
| Minimum illumination | 0.04 lx |
| Optical sensor size | 1/1.8 " |
| Sensor type | CMOS |
| Focal length range | 1.1 mm |
| Maximum aperture number | 2.2 |
| Number of lenses | 1 |
| Night vision | Yes |
| Maximum resolution | 2160 x 2160 pixels |
| Total megapixels | 6 MP |
| Video formats supported | H.264/H.265/M-JPEG |
| Audio detection | Yes |
| Audio system | 2-way |
| Built-in microphone | Yes |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x |
| Active tampering alarm | Yes |
| HTTPS encryption | Yes |
| Video motion detection | Yes |
| Power source type | PoE |
| Operating temperature (T-T) | -15 – 50 °C |
| Manufacturer Code | 02864-001 |
| ELKO Code | 1421570 |
| Warranty | 60 |
