Axis 01920-001. Type: IP security camera, Connectivity technology: Wired, PTZ modes: Digital PTZ. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 110°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9″). Fixed focal length: 2.8 mm
Laost otsas
Laost otsas

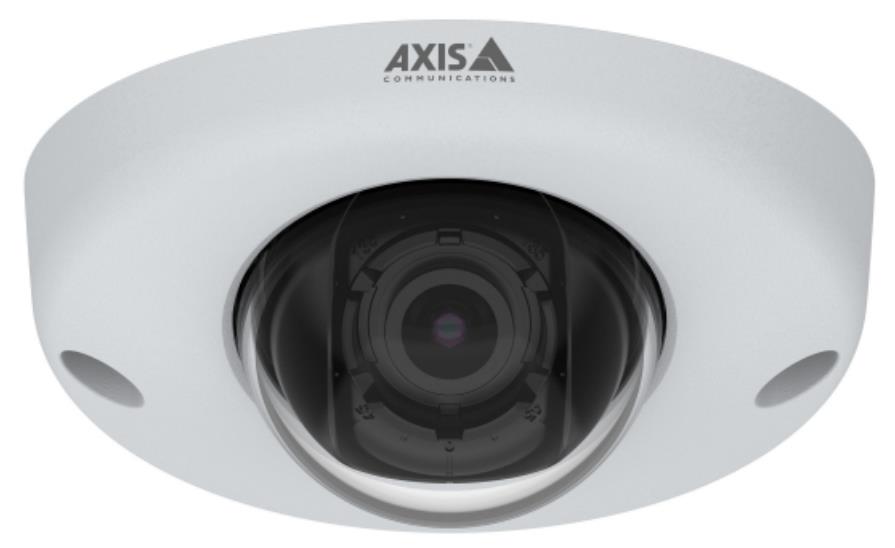

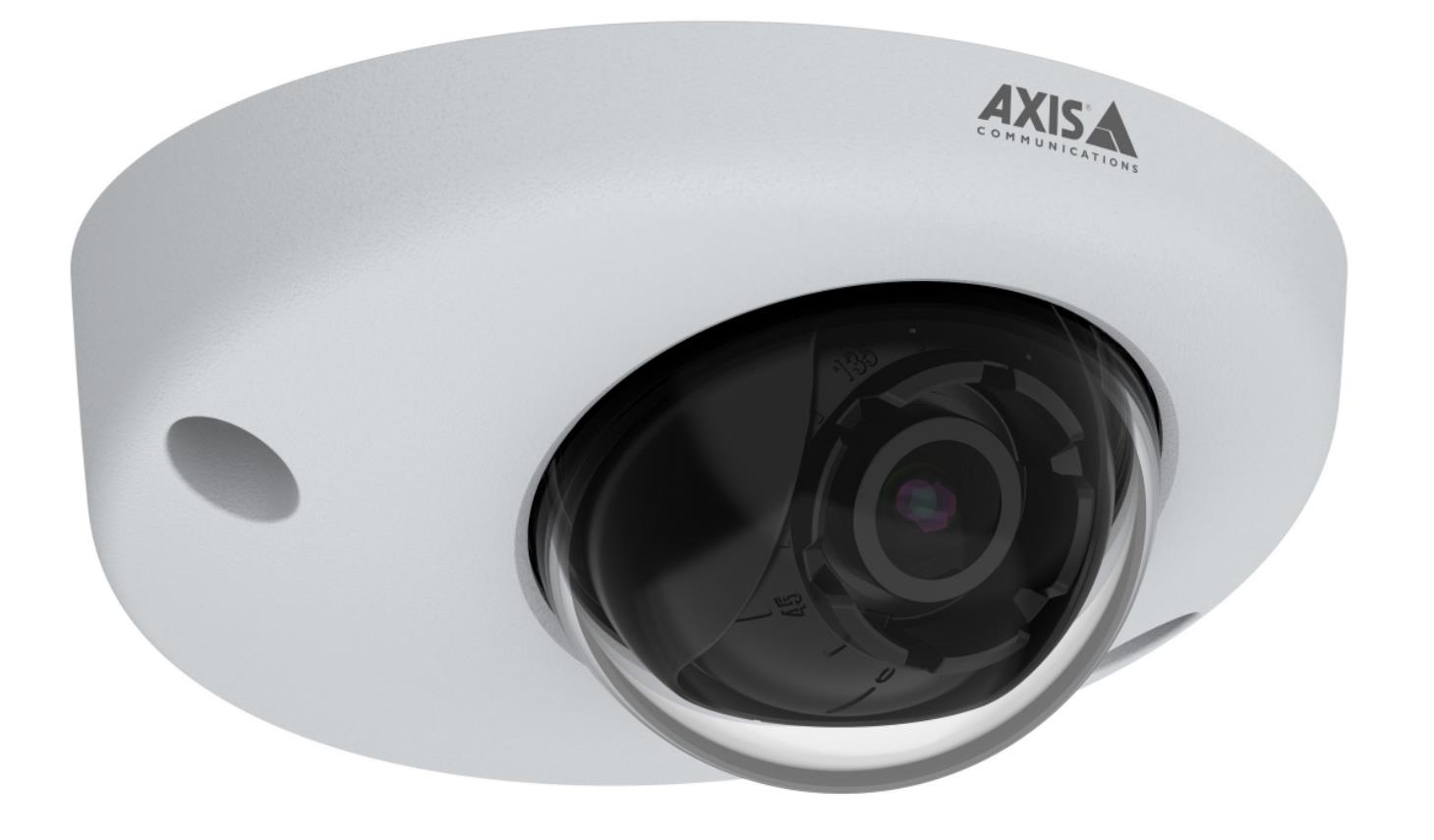

Specifically designed for onboard surveillance, AXIS P3925-R complies with all relevant transportation industry regulations including EN50155, EN45545, and NFPA 130. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. Enclosed in an IK10-, IP66-, IP67-rated metal casing, this robust, vandal-resistant camera offers extended capabilities for analytics. Furthermore, enhanced security features prevent unauthorized access and safeguard your system.
| Vendor | AXIS |
|---|---|
| RJ45 | 1 |
| Model | P3925-R RJ45 |
| Camera design | Other |
| Network Camera Type | HDTV/Megapixel/Outdoor |
| Focal Length | 2.8 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.9” |
| Min. Illumination | 0.01 Lux |
| Electronic Shutter Speed | 1/33500 s to 2 s |
| Supports card capacities up to | 512GB |
| Power options | PoE |
| Power supply requirements | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical 4.2 W, max 6.4 W |
| Power consumption | 6.4 Watts |
| Environment | Outdoor |
| Operating temperature range | -40 °C to 55°C |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.001683 cubm |
| Product Net Weight | 0.4 kg |
| Unit Calculated Weight | 0.54 kg |
| Summary | Axis 01920-001. Type: IP security camera, Connectivity technology: Wired, PTZ modes: Digital PTZ. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.01 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 110°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Fixed focal length: 2.8 mm |
| Certification | 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 rev.05 (E approval), EN 50498, IEC/EN |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Languages support | English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese |
| Number of languages | 1 |
| Preset points | Yes |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Tour recording | Yes |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Fog proof | Yes |
| Form factor | Dome |
| Housing material | Aluminium |
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Mounting type | Ceiling |
| Product colour | Black/White |
| Angle of rotation | 350 ° |
| Camera pan control | Yes |
| Camera shutter speed | 1/33500 – 2 s |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 110 ° |
| Lens viewing angle, vertical | 62 ° |
| Minimum illumination | 0.01 lx |
| Pan range | -30 – 30 ° |
| Tilt angle range | 15 – 90 ° |
| Number of sensors | 1 |
| Optical sensor size | 1/2.9 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Fixed focal length | 2.8 mm |
| Maximum aperture number | 1.6 |
| Number of lenses | 1 |
| Bit rate control | Variable Bit Rate (VBR) |
| Frame rate | 45 fps |
| Image quality adjustment | Brightness/Contrast/Sharpness |
| Image stabilizer | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Privacy masking | Yes |
| Supported graphics resolutions | 1280 x 960/160 x 120/160 x 90/1920 x 1080 (HD 1080) |
| Text caption overlay | Yes |
| Total megapixels | 2 MP |
| Video compression formats | AVC/H.264/H.265/HEVC/M-JPEG/MPEG4 |
| Video streaming | Yes |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Number of users | 8 user(s) |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, MQTT |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 512 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Active tampering alarm | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Password protection | Yes |
| Video motion detection | Yes |
| Power consumption (max) | 6.4 W |
| Power consumption (typical) | 4.2 W |
| Power source type | PoE |
| Operating relative humidity (H-H) | 10 – 95 % |
| Operating temperature (T-T) | -40 – 55 °C |
| Storage temperature (T-T) | -40 – 65 °C |
| Depth | 110 mm |
| Height | 49.5 mm |
| Weight | 410 g |
| Width | 110 mm |
| Doesn't contain | PVC |
| Harmonized System (HS) code | 85258900 |
| Manufacturer Code | 01920-001 |
| ELKO Code | 1354814 |
| Warranty | 60 |
