Axis 02090-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Housing material: Aluminium, Tempered glass. Minimum illumination: 0.02 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 56°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9″). Night vision distance: 20 m, Infra-red wavelength: 850 nm
Laost otsas
Laost otsas

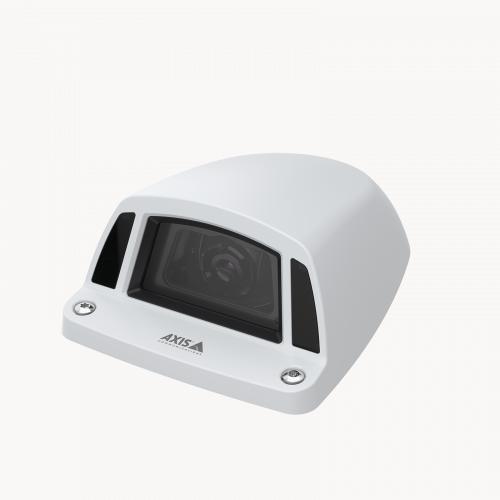

AXIS P3925-LRE specially designed for side view monitoring on buses, trains, and transportation vehicles. It can also be used for identifying maintenance needs on rolling stock, for example, wear and tear of pantograph collector strips. This robust and compact camera features a tempered glass window and complies with transport industry standards and IK10+, IP66, IP67, and IP6K9K. It delivers HDTV 1080p with Lightfinder for color images in poor light and Forensic WDR for maximal forensic usability in mixed light conditions. Plus, built-in IR Illumination enables monitoring in complete darkness. Furthermore, it supports exchangeable lenses for full flexibility.
| Kaal | 0,77 kg |
|---|---|
| Vendor | AXIS |
| Model | P3925-LRE |
| Camera design | Other |
| Network Camera Type | HDTV/Megapixel/Outdoor |
| Focal Length | 6mm |
| IR Illumination | Yes |
| Sensor size | 1/2.9” |
| Min. Illumination | 0.07 Lux |
| Electronic Shutter Speed | 1/33500 s to 2 s |
| Power options | PoE |
| Power consumption | 53.4 Watts |
| Environment | Outdoor |
| Operating temperature range | -40 to 55 °C |
| Colour | White |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00238 cubm |
| Product Net Weight | 0.77 kg |
| Unit Calculated Weight | 1 kg |
| Summary | Axis 02090-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Housing material: Aluminium, Tempered glass. Minimum illumination: 0.02 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 56°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Night vision distance: 20 m, Infra-red wavelength: 850 nm |
| Certification | 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35, EN 50121-4, EN 50121-3-2, IEC 62236-4, ECE R10 rev.06 (E approval), EN 50498, IEC/EN |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Languages support | English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese |
| Number of languages | 11 |
| Placement supported | Indoor |
| Preset points | Yes |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Fog proof | Yes |
| Housing material | Aluminium/Tempered glass |
| IK code | IK10+ |
| International Protection (IP) code | IP66, IP67 |
| Mounting type | Ceiling/wall |
| Product colour | Black/White |
| Angle of rotation | 350 ° |
| Camera pan control | Yes |
| Camera shutter speed | 1/33500 – 2 s |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 56 ° |
| Lens viewing angle, vertical | 30 ° |
| Minimum illumination | 0.02 lx |
| Pan range | -20 – 20 ° |
| Tilt angle range | 0 – 50 ° |
| Number of sensors | 1 |
| Optical sensor size | 1/2.9 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Number of lenses | 1 |
| Infra-red wavelength | 850 nm |
| Night vision | Yes |
| Night vision distance | 20 m |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 45 fps |
| Image quality adjustment | Brightness/Contrast/Sharpness |
| Image stabilizer | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Privacy masking | Yes |
| Supported graphics resolutions | 1280 x 960/160 x 120/160 x 90/1920 x 1080 (HD 1080) |
| Supported video modes | 720p |
| Text caption overlay | Yes |
| Total megapixels | 2 MP |
| Video compression formats | AVC/H.264/H.265/HEVC/M-JPEG/MPEG4 |
| Video streaming | Yes |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS , HTTP/2, SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, MQTT v3.1. |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 512 MB |
| Internal memory | 1000 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alert notification type | |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Password protection | Yes |
| Security algorithms | 802.1x RADIUS |
| Power consumption (max) | 11.8 W |
| Power consumption (typical) | 6.3 W |
| Power source type | PoE |
| Operating relative humidity (H-H) | 10 – 95 % |
| Operating temperature (T-T) | -40 – 55 °C |
| Storage temperature (T-T) | -40 – 65 °C |
| Depth | 116 mm |
| Height | 63 mm |
| Weight | 770 g |
| Width | 160 mm |
| Manual | Yes |
| Number of cameras | 1 |
| Doesn't contain | PVC |
| Harmonized System (HS) code | 85258900 |
| Manufacturer Code | 02090-001 |
| ELKO Code | 1396002 |
| Warranty | 60 |
