Axis 02329-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.13 lx, Tilt angle range: -10 – 80°, Pan range: -190 – 190°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″). Focal length range: 3 – 8 mm
Laost otsas
Laost otsas

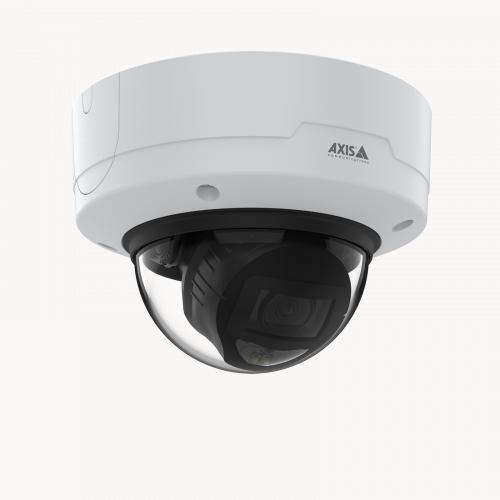

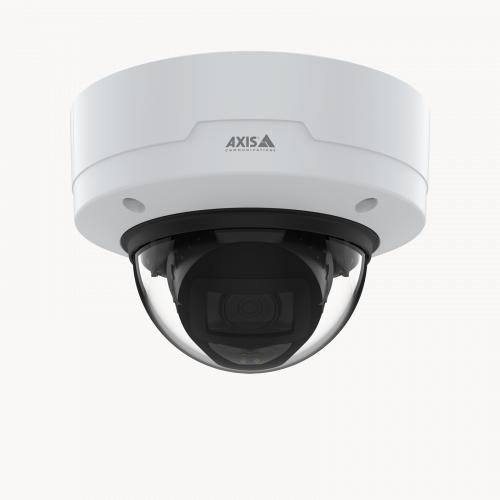

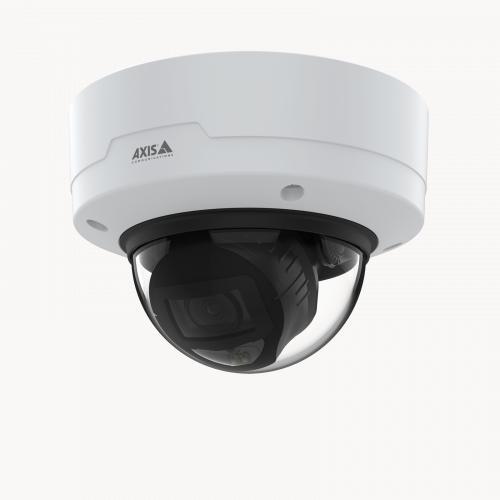

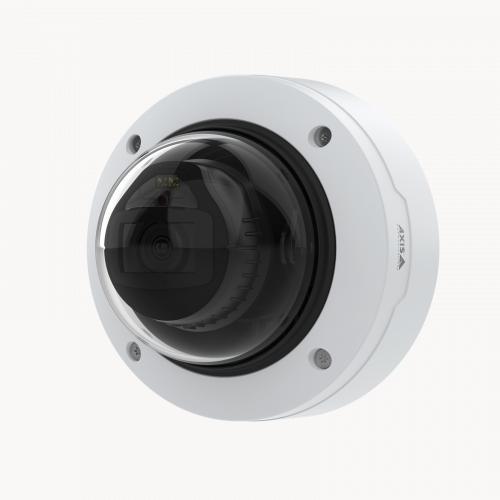

Featuring Lightfinder 2.0, Forensic WDR, and OptimizedIR, AXIS P3267-LV delivers excellent image quality under any light conditions. Based on the latest Axis system-on-chip (SoC), it includes a deep learning processing unit enabling advanced features and powerful analytics based on deep learning on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Featuring audio and I/O connectivity, you can integrate equipment and extend the value of your system. Furthermore, this robust, IK10-rated camera includes built-in cybersecurity to help prevent unauthorized access and safeguard your system.
| Vendor | AXIS |
|---|---|
| RJ45 | 1 |
| Model | P3267-LV |
| Camera design | Dome |
| Network Camera Type | Fixed Dome/HDTV/Megapixel |
| Focal Length | 3–8 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.7” |
| Min. Illumination | 0.13 Lux |
| Electronic Shutter Speed | 1/33500 s to 1/5 s |
| Power options | PoE |
| Power supply requirements | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 6.4 W, max 9.0 W |
| Power consumption | 9 Watts |
| Environment | Indoor |
| Operating temperature range | 0 °C to 50 °C |
| Dimensions | D149 x 107 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0039 cubm |
| Product Net Weight | 0.8 kg |
| Unit Calculated Weight | 1.01 kg |
| Summary | Axis 02329-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.13 lx, Tilt angle range: -10 – 80°, Pan range: -190 – 190°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 3 – 8 mm |
| Certification | EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Languages support | English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese |
| Number of languages | 12 |
| Placement supported | Indoor |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Dome |
| Housing material | Polycarbonate (PC) |
| IK code | IK10 |
| International Protection (IP) code | IP52 |
| LED indicators | Yes |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Camera pan control | Yes |
| Camera shutter speed | 1/33500 – 1/5 s |
| Camera tilt control | Yes |
| Minimum illumination | 0.13 lx |
| Pan range | -190 – 190 ° |
| Tilt angle range | -10 – 80 ° |
| Number of sensors | 1 |
| Optical sensor size | 1/2.7 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Focal length range | 3 – 8 mm |
| Number of lenses | 1 |
| Zoom capability | Yes |
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 40 m |
| Bit rate | Configurable bit rate |
| Flip & mirror | Yes |
| Frame rate | 30 fps |
| Gain control type | Auto |
| Maximum resolution | 2592 x 1944 pixels |
| Privacy masking | Yes |
| Text caption overlay | Yes |
| Total megapixels | 5 MP |
| Video compression formats | H.264/H.265 |
| Video recording | Yes |
| Video streaming | Yes |
| Audio detection | Yes |
| Audio formats supported | AAC-LC/ADPCM/G.711/G.726/LPCM/OPUS/PCM |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SS |
| Wi-Fi | No |
| Built-in HDD | No |
| Built-in SSD | No |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD |
| Flash memory | 8192 MB |
| Internal memory | 2048 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Terminal block port | Yes |
| Active tampering alarm | Yes |
| Alert notification type | E-mail,Text alert message |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Password protection | Yes |
| Security algorithms | 256-bit AES-XTS/EAP-TLS |
| Video motion detection | Yes |
| Power consumption (max) | 9 W |
| Power consumption (typical) | 6.4 W |
| Power source type | PoE |
| Operating relative humidity (H-H) | 10 – 85 % |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage relative humidity (H-H) | 5 – 95 % |
| Storage temperature (T-T) | -40 – 65 °C |
| Windows operating systems supported | Yes |
| Diameter | 149 mm |
| Height | 107 mm |
| Weight | 800 g |
| Number of cameras | 1 |
| Doesn't contain | BFR/PVC |
| Manufacturer Code | 02329-001 |
| ELKO Code | 1371768 |
| Warranty | 60 |
