Axis P1387. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Minimum illumination: 0.008 lx, Lens viewing angle, horizontal: 24 – 112°, Lens viewing angle, vertical: 18 – 80°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″). Focal length range: 2.8 – 13 mm, Detect distance (wide): 56.2 m, Detect distance (tele): 244.2 m
Laost otsas
Laost otsas

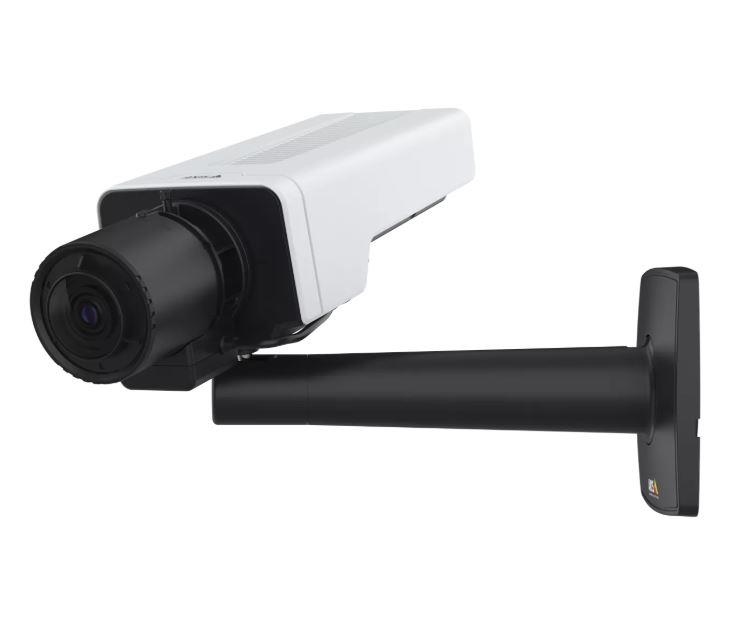

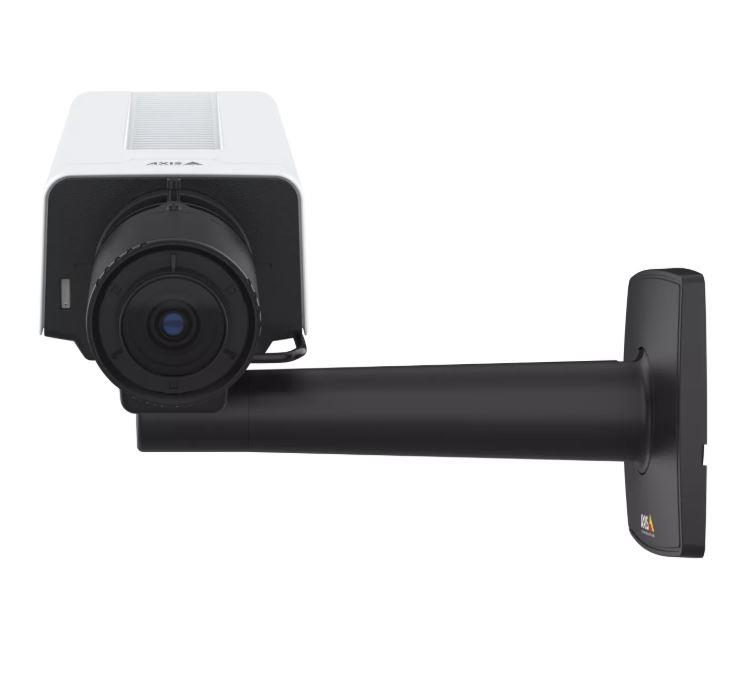

This box camera delivers excellent 5 MP image quality. Ideal for various surveillance situations, it offers an exchangeable lens so you can change the lens to suit your needs. Plus, it’s designed for use outdoors in housing.
A camera you can count on
With electronic image stabilization, AXIS P1387 ensures stable images despite vibration. Scene profiles can be automatically optimized to suit specific scenarios. And thanks to shock detection and a tampering alarm, you’ll be informed if there’s any attempts to interfere with the camera. Barrel distortion correction delivers great image quality, even at the edges of the image. Plus, corridor format ensures the video is perfectly adapted to monitored corridors or tunnels. With support for PoE and redundant DC power, this box camera offers flexible installation. Furthermore, it’s designed to fit into outdoor housing.
More light or less
With an exchangeable lens and i-CS support, you can easily change the lens, making this camera ideal for various surveillance situations. Use our lens calculator to select a lens that meets your specific needs. This box camera offers excellent image quality in 5 MP. With Lightfinder 2.0, and Forensic WDR it delivers true colors and great detail in challenging light or near darkness. In addition, P-Iris ensures images with better contrast, clarity, resolution, and depth of field.
Secure and powerful
AXIS P1387 offers Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and protects sensitive information from unauthorized access. Built on an Axis system-on-chip, it includes a deep learning processing unit (DLPU) so you can run advanced features and powerful analytics on the edge. For instance, AXIS Object Analytics can detect and classify different types of objects. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.
| Vendor | AXIS |
|---|---|
| Model | AXIS P1387 Box Camera |
| Network Camera Type | Fixed Dome |
| Resolution | 5 Mega Pixel |
| Focal Length | 2.8 – 13 mm |
| Sensor size | 1/2.7” |
| Microphone | Built-in |
| Min. Illumination | 0.02 Lux |
| Electronic Shutter Speed | 1/66500 s to 2 s with 50Hz |
| Power options | 12V/PoE |
| Power supply requirements | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type1 Class3 |
| Operating temperature range | –10°C to 55°C |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.006379 cubm |
| Product Net Weight | 0.775 kg |
| Unit Calculated Weight | 1.08 kg |
| Summary | Axis P1387. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: White, Form factor: Box. Minimum illumination: 0.008 lx, Lens viewing angle, horizontal: 24 – 112°, Lens viewing angle, vertical: 18 – 80°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.8 – 13 mm, Detect distance (wide): 56.2 m, Detect distance (tele): 244.2 m |
| Built-in processor | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Infrared (IR) cut-off filter | Yes |
| Languages support | Multi |
| Placement supported | Indoor |
| Processor model | ARTPEC-8 |
| PTZ control | Yes |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Box |
| Housing material | Aluminium |
| Mounting type | Wall |
| Product colour | White |
| Camera pixel size | 2 µm |
| Camera shutter speed | 1/66500 – 2 s |
| Lens viewing angle, horizontal | 24 – 112 ° |
| Lens viewing angle, vertical | 18 – 80 ° |
| Minimum illumination | 0.008 lx |
| Optical sensor size | 1/2.7 " |
| Sensor type | CMOS |
| Auto focus | Yes |
| Detect distance (tele) | 244.2 m |
| Detect distance (wide) | 56.2 m |
| Focal length range | 2.8 – 13 mm |
| Identify distance (tele) | 24.4 m |
| Identify distance (wide) | 5.6 m |
| Minimum aperture number | 1.4 |
| Number of lenses | 1 |
| Observe distance (tele) | 96.9 m |
| Observe distance (wide) | 22.3 m |
| Recognize distance (tele) | 48.8 m |
| Recognize distance (wide) | 11.2 m |
| Bit rate control | Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Frame rate | 60 fps |
| Gain control type | Auto |
| Image quality adjustment | Brightness/Contrast/Sharpness |
| Image stabilizer | Yes |
| Maximum resolution | 2592 x 1944 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Privacy masking | Yes |
| Supported graphics resolutions | 160 x 120/160 x 90/2592 x 1944 |
| Total megapixels | 5 MP |
| Video compression formats | H.264/H.265/M-JPEG/MPEG4 |
| Video streaming | Yes |
| Audio detection | Yes |
| Audio formats supported | G.711/G.726/LPCM/OPUS |
| Audio system | 2-way |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet/Gigabit Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 8192 MB |
| Internal memory | 2048 MB |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | Yes |
| RS-422 ports | 1 |
| RS-485 ports | 1 |
| Terminal block port | Yes |
| Active tampering alarm | Yes |
| Alarm input channels | 2 |
| Alarm output channels | 2 |
| Intelligent Video Surveillance (IVS) system features | Face detection/Human detection/Line crossing detection/Scene change/Vehicle detection |
| Video motion detection | Yes |
| DC output voltage | 10,28 |
| Power consumption (max) | 10.57 W |
| Power consumption (Power over Ethernet (PoE)) | 11.73 W |
| Power consumption (typical) | 4.26 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 10 – 85 % |
| Operating temperature (T-T) | -10 – 55 °C |
| Storage relative humidity (H-H) | 5 – 95 % |
| Storage temperature (T-T) | -40 – 65 °C |
| Depth | 225 mm |
| Height | 63.5 mm |
| Weight | 480 g |
| Weight (with stand) | 775 g |
| Width | 80 mm |
| Compliance certificates | CE/cUL/EAC/KC/RCM/REACH/RoHS/UKCA/UL/VCCI |
| Manual | Yes |
| Mounting kit | Yes |
| Number of cameras | 1 |
| Terminal block included | Yes |
| Doesn't contain | BFR |
| Manufacturer Code | 02735-001 |
| ELKO Code | 1420413 |
| Warranty | 60 |
