Axis P1245 Mk II. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Covert. Minimum illumination: 0.2 lx, Lens viewing angle, horizontal: 111°, Lens viewing angle, vertical: 61°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9″). Fixed focal length: 2.8 mm, Closest focusing distance: 0.2 m
Laost otsas
Laost otsas

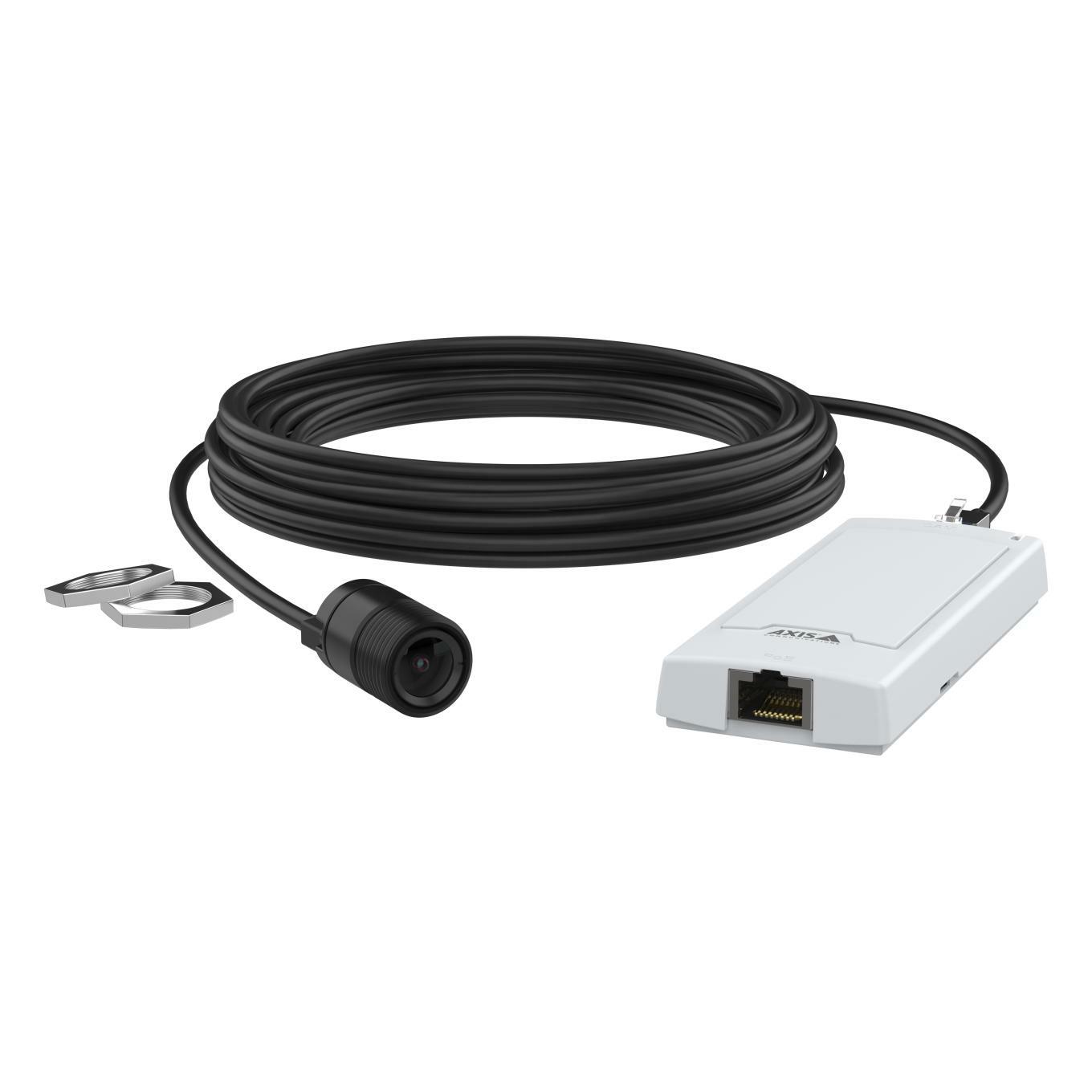

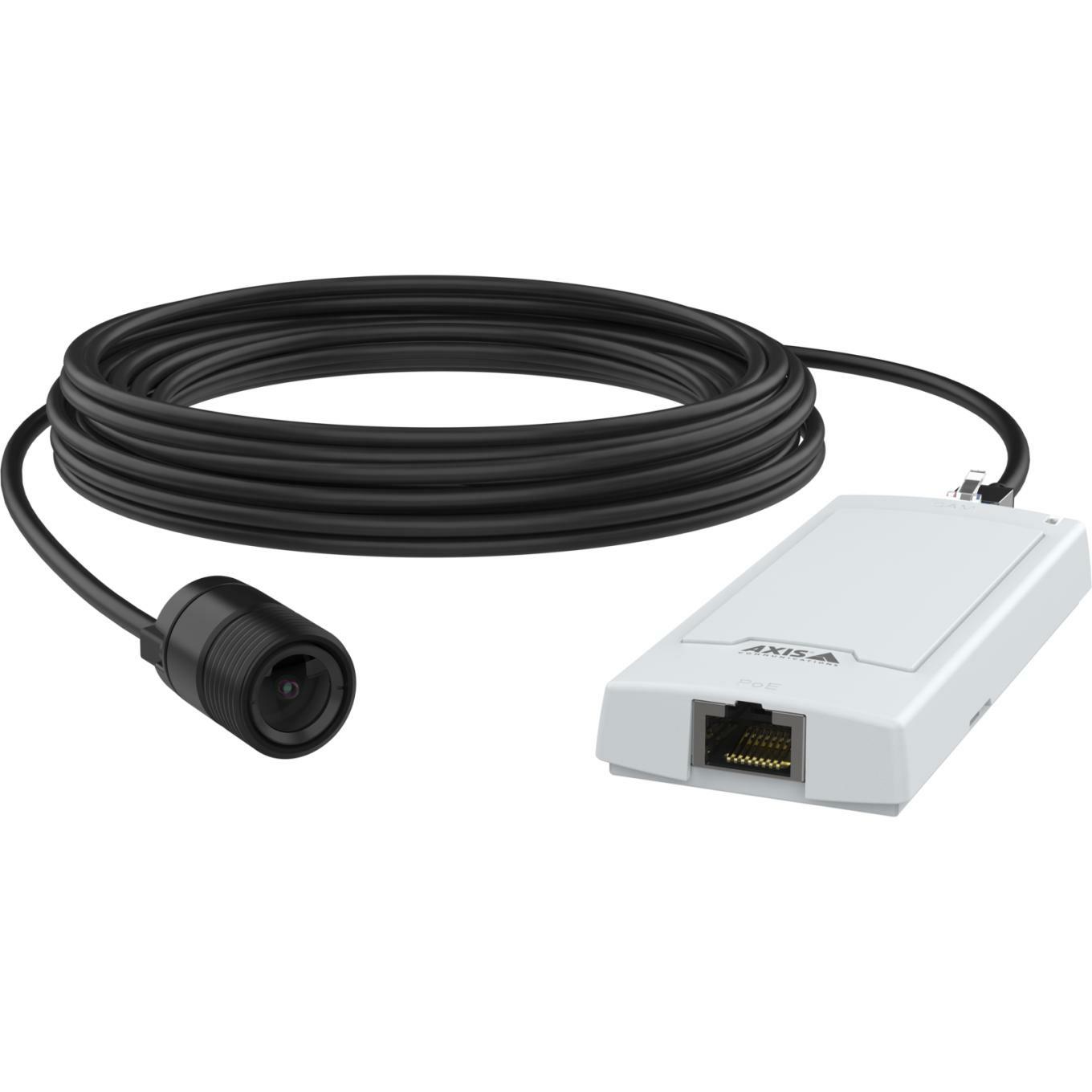

AXIS P1245 Mk II Modular Standard Camera
Ideal for mounting in tight spaces, AXIS P1245 Mk II features a small, thumb-sized sensor unit that’s easy to install and blends into any indoor environment. Featuring a deep learning processing unit, it enables the use of advanced analytics.
Compact and discreet
With a small, thumb-sized sensor unit, AXIS P1245 Mk II can be recessed mounted to blend into almost any indoor environment. The sensor unit connects via cable to the main unit, so the two parts can be placed separately from each other for even more discreet installation.
Highly flexible
Based on the divided modular camera concept, AXIS P1245 Mk II can be installed in tight spaces, such as behind metal or glass. It´s ideal for installation in areas where larger surveillance cameras won’t fit. Plus, it can be mounted on a bracket, swivel mount, or similar. And it’s easy to integrate with other devices. Including a standard sensor unit, this indoor camera suits a wide range of applications such as video surveillance at ATMs, ticketing machines, self-checkouts, automated parcel lockers, and medical machines. The sensor unit can be mounted up to 15 m from the main unit. Plus, a detachable cable ensures flexible installation, maintenance, and upgrade
Great image quality and support for advanced analytics
AXIS P1245 Mk II offers 1080p resolution with a wide, 111° field of view. Axis Zipstream significantly reduces bandwidth and storage requirements. And WDR ensures clarity even when there’s both dark and light areas in a scene. Plus, a deep learning processing unit enables the use of advanced analytics. For instance, AXIS Object Analytics can detect and classify different types of objects. And, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge. Furthermore, AXIS Live Privacy Shield makes it easy to monitor activities while safeguarding privacy
| Vendor | AXIS |
|---|---|
| Model | 02857-001 |
| Camera design | Other |
| Network Camera Type | HDTV/Megapixel |
| Resolution | 2 Mega Pixel |
| Focal Length | 2.8 mm |
| Sensor size | 1/2.9” progressive scan RGB CMOS |
| Lens Mount | M12 |
| Min. Illumination | 0.2 Lux |
| Effective pixels | 1920×1080 |
| Electronic Shutter Speed | 1/16500 to 1/5s |
| Power options | PoE |
| Power supply requirements | IEEE 802.3af/802.3at Type 1 Class 2 |
| Power consumption | 3.4 Watts |
| Operating temperature range | -20 — 45 °C |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002023 cubm |
| Product Net Weight | 0.1 kg |
| Unit Calculated Weight | 0.35 kg |
| Summary | Axis P1245 Mk II. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Covert. Minimum illumination: 0.2 lx, Lens viewing angle, horizontal: 111°, Lens viewing angle, vertical: 61°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Fixed focal length: 2.8 mm, Closest focusing distance: 0.2 m |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Covert |
| Housing material | Plastic/Steel |
| International Protection (IP) code | IPX3 |
| LED indicators | Yes |
| Mounting type | Ceiling |
| Product colour | Black/White |
| Camera shutter speed | 1/6500 – 1/5 s |
| Lens viewing angle, horizontal | 111 ° |
| Lens viewing angle, vertical | 61 ° |
| Minimum illumination | 0.2 lx |
| Number of sensors | 1 |
| Optical sensor size | 1/2.9 " |
| Sensor type | CMOS |
| Closest focusing distance | 0.2 m |
| Fixed focal length | 2.8 mm |
| Maximum aperture number | 2 |
| Number of lenses | 1 |
| Bit rate control | Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Frame rate | 30 fps |
| Image quality adjustment | Brightness/Contrast/Saturation/Sharpness |
| Maximum resolution | 1920 x 1080 pixels |
| Privacy masking | Yes |
| Supported graphics resolutions | 1024 x 640/1024 x 768 (XGA)/1920 x 1080 (HD 1080)/480 x 360/640 x 360 |
| Text caption overlay | Yes |
| Video formats supported | AVC/H.264/HEVC/M-JPEG/MPEG4 |
| Video streaming | Yes |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, A |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 512 MB |
| Internal memory | 1024 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alert notification type | |
| Human and vehicle targets classification | Yes |
| Intelligent Video Surveillance (IVS) system features | Face detection/Human detection/Vehicle detection |
| Pixel counter | Yes |
| Security algorithms | 802.1x RADIUS/EAP-TLS/HTTPS/PEAP/TLS |
| Video motion detection | Yes |
| Behavior analysis | Line crossing detection,Scene change detection |
| Power consumption (max) | 4.1 W |
| Power consumption (typical) | 3.4 W |
| Power source type | PoE |
| Operating relative humidity (H-H) | 10 – 85 % |
| Operating temperature (T-T) | -20 – 45 °C |
| Storage relative humidity (H-H) | 5 – 95 % |
| Storage temperature (T-T) | -40 – 65 °C |
| Weight | 75 g |
| Compliance certificates | RoHS |
| Manual | Yes |
| Number of cameras | 1 |
| Doesn't contain | PVC |
| Manufacturer Code | 02857-001 |
| ELKO Code | 1421566 |
| Warranty | 60 |
