Axis 02345-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.1 lx, Tilt angle range: 0 – 90°, Tilt speed: 100 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8″). Optical zoom: 5x, Digital zoom: 12x, Focal length range: 2.2 – 11.0 mm
Laost otsas
Laost otsas

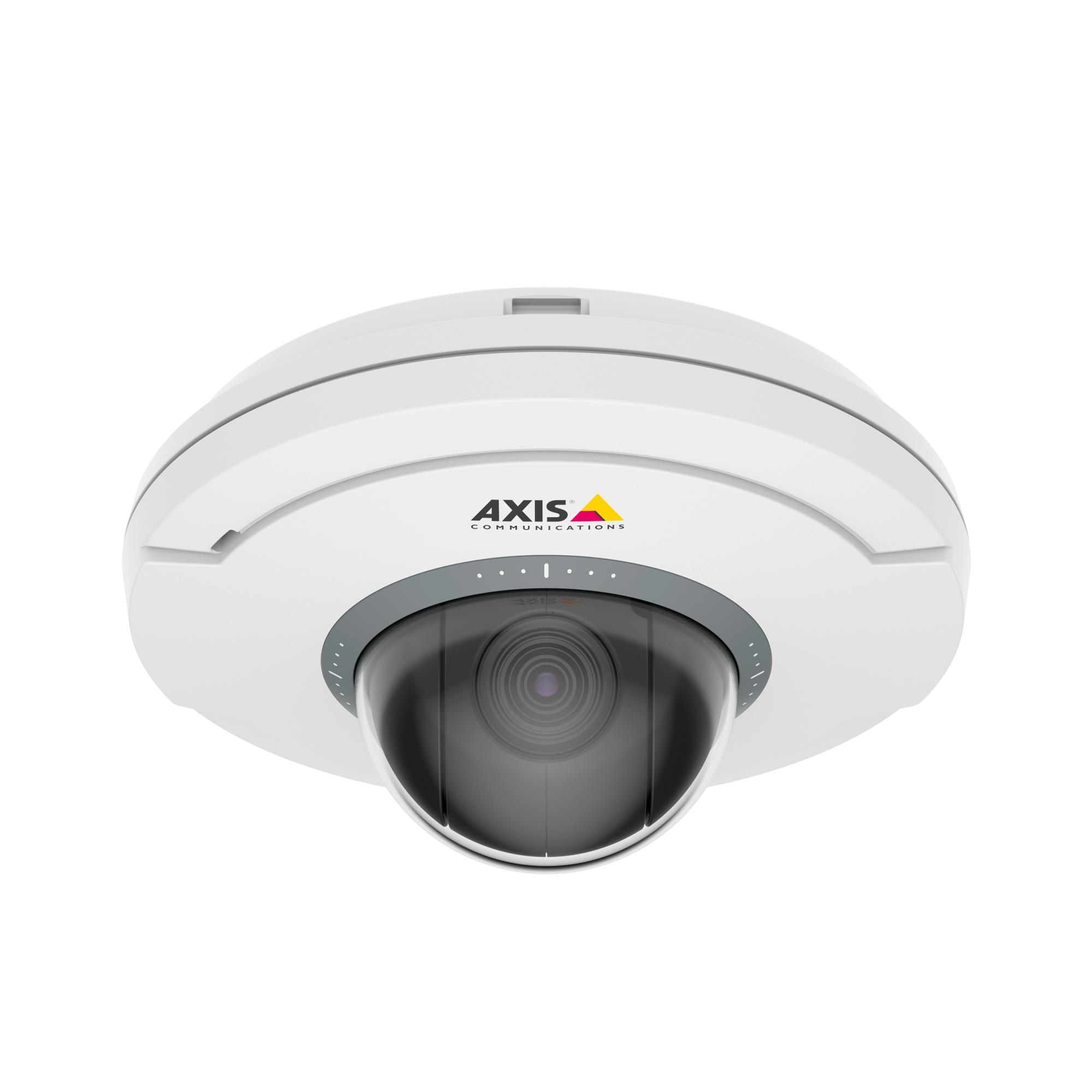

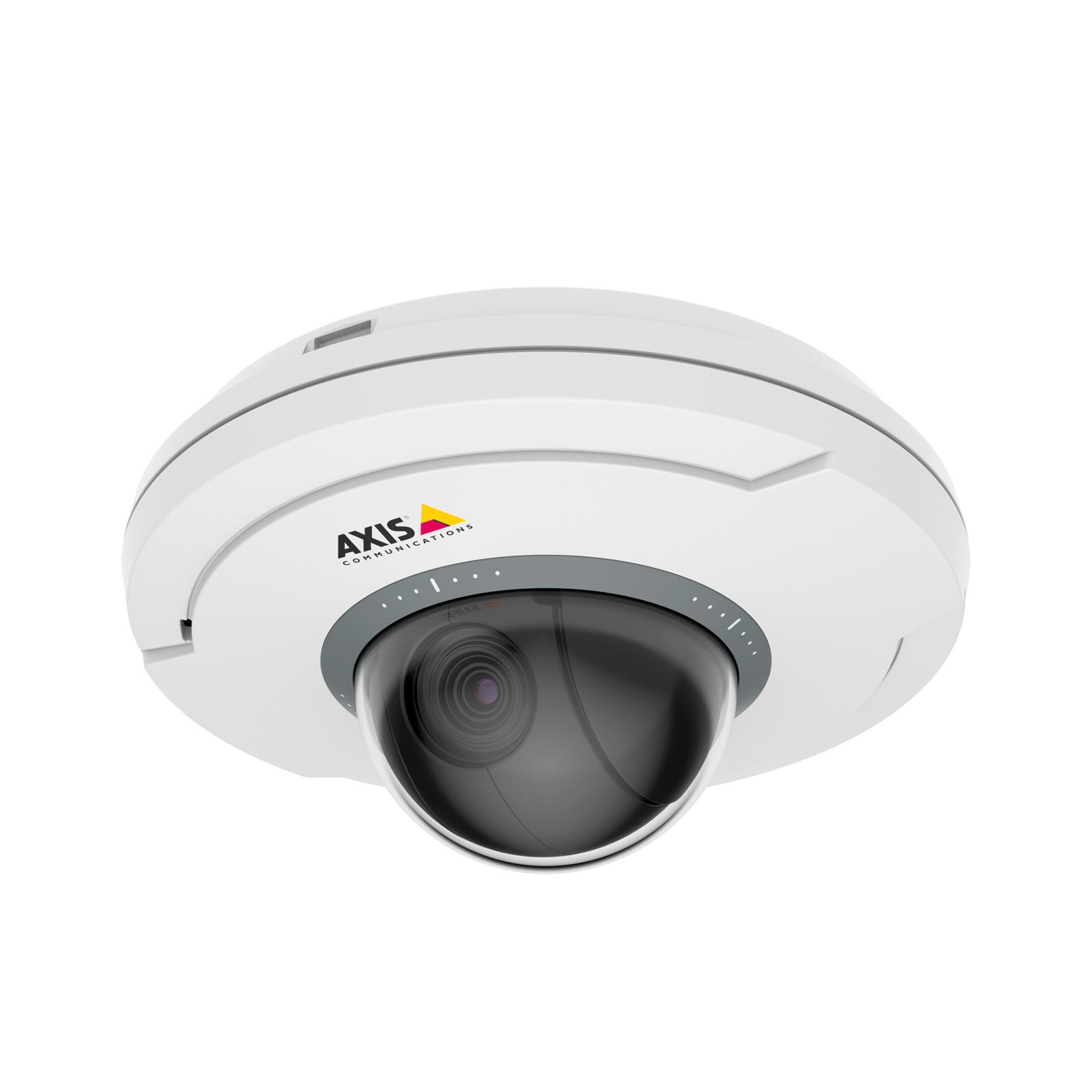

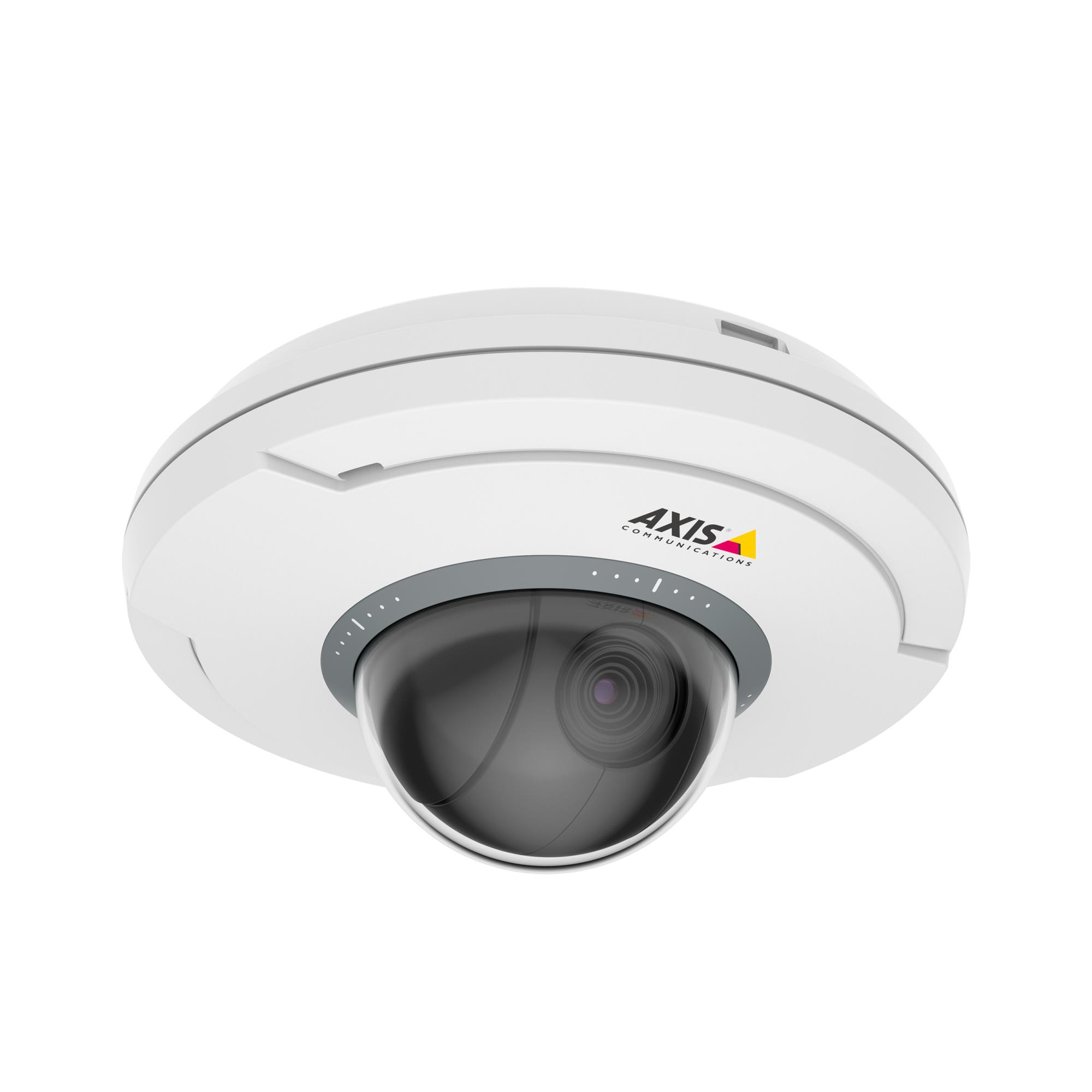

AXIS M5074 is a discreet, palm-sized PTZ camera designed to fit in anywhere. It delivers sharp, detailed video in HDTV 720p/1MP resolution. Thanks to PTZ functionality with 5x optical zoom and 12x digital zoom you can benefit from sweeping overviews and zoom in to get the details. Featuring a built-in microphone, this plug & play solution also includes analytics such as scream detection to alert you whenever a scream is detected in the camera’s proximity. Furthermore, built-in cybersecurity features help prevent unauthorized access and safeguard your system.
| Vendor | AXIS |
|---|---|
| MicroSD Card Slot | 1 |
| RJ45 | 1 |
| Model | M5074 |
| Camera design | PT/PTZ |
| Network Camera Type | PTZ |
| Focal Length | 2.2–11.0 mm |
| Optical zoom | 5 x |
| Sensor size | 1/2.8” progressive scan RGB CMOS |
| Electronic Shutter Speed | 1/17000 s to 2 s |
| Power options | PoE |
| Power supply requirements | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 4.2 W, max 9.3 W |
| Power consumption | 4.2 Watts |
| Operating temperature range | °C to 45 °C |
| Included Accessories | AXIS M50 Mounting Kit, Installation Guide, Windows decoder 1-user license |
| Dimensions | Ø130 x 63 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.001792 cubm |
| Product Net Weight | 0.38 kg |
| Unit Calculated Weight | 1 kg |
| Summary | Axis 02345-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.1 lx, Tilt angle range: 0 – 90°, Tilt speed: 100 °/sec. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Optical zoom: 5x, Digital zoom: 12x, Focal length range: 2.2 – 11.0 mm |
| Certification | EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Languages support | English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese |
| Number of languages | 12 |
| Placement supported | Indoor |
| Processor model | ARTPEC-7 |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Form factor | Dome |
| Housing material | Polyvinyl chloride (PVC) |
| International Protection (IP) code | IP51 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Camera pan control | Yes |
| Camera shutter speed | 1/17000 – 2 s |
| Camera tilt control | Yes |
| Minimum illumination | 0.1 lx |
| Pan range | -179 – 179 ° |
| Pan speed | 100 °/sec |
| Tilt angle range | 0 – 90 ° |
| Tilt speed | 100 °/sec |
| Number of sensors | 1 |
| Optical sensor size | 1/2.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Auto focus | Yes |
| Digital zoom | 12 x |
| Focal length range | 2.2 – 11.0 mm |
| Number of lenses | 1 |
| Zoom capability | Yes |
| Bit rate | Configurable bit rate |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Frame rate | 60 fps |
| Maximum resolution | 1280 x 720 pixels |
| Privacy masking | Yes |
| Supported video modes | 720p |
| Total megapixels | 1 MP |
| Video compression formats | H.264/H.265 |
| Video formats supported | M-JPEG |
| Video recording | Yes |
| Video streaming | Yes |
| Audio detection | Yes |
| Audio formats supported | AAC-LC/ADPCM/LPCM/OPUS/PCM |
| Audio system | 1-way |
| Built-in microphone | Yes |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af |
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SS |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Flash memory | 512 MB |
| Internal memory | 1024 MB |
| Active tampering alarm | Yes |
| Alert notification type | |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Password protection | Yes |
| Security algorithms | EAP-TLS/HTTPS/SNMP |
| Video motion detection | Yes |
| Power consumption (max) | 9.3 W |
| Power consumption (typical) | 4.2 W |
| Power source type | PoE |
| Operating relative humidity (H-H) | 10 – 90 % |
| Operating temperature (T-T) | 0 – 45 °C |
| Storage relative humidity (H-H) | 5 – 95 % |
| Storage temperature (T-T) | -30 – 60 °C |
| Diameter | 130 mm |
| Length | 63 mm |
| Weight | 380 g |
| Manual | Yes |
| Mounting kit | Yes |
| Number of cameras | 1 |
| Harmonized System (HS) code | 85258900 |
| Manufacturer Code | 02345-001 |
| ELKO Code | 1396001 |
| Warranty | 60 |
