Axis M4317-PLR. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 182°, Lens viewing angle, vertical: 182°, Camera shutter speed: 1/33500 – 0.2 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8″). Sensor type (panoramic camera): CMOS, Supported graphics resolutions (panoramic camera): 384 x 288, 2560 x 1440, 2560 x 1920
Laost otsas
Laost otsas

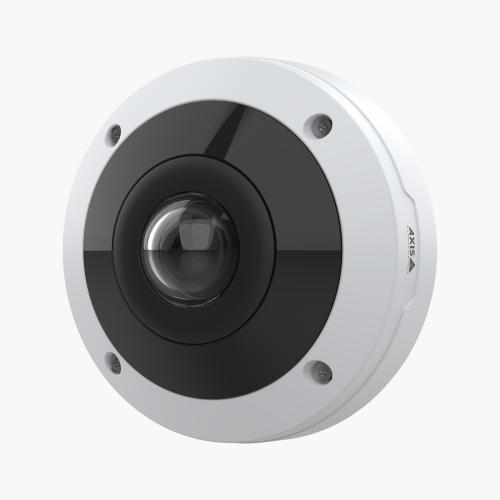

Optimized for surveillance onboard buses, this discreet, fisheye camera delivers outstanding images in any light conditions. It offers built-in cybersecurity features and support for advanced analytics based on deep learning on the edge.
360° view with just one camera
Designed to withstand strong shock and vibrations, this fisheye camera is optimized for surveillance onboard buses. And you don’t need to invest in several cameras—with AXIS M4317-PLR you get a complete 180° or 360° overview for total situational awareness. Plus, there’s just one camera to install, one cable to drop, one IP address, one video management software (VMS) license, and just one license for any analytics you choose to install. Furthermore, this cost-efficient camera ensures a lower power budget.
Outstanding images
With a stereographic lens and Sharpdome 360, AXIS M4317-PLR delivers greater sharpness at the edges of the image. It features a 6 MP sensor and offers great image quality around the clock, regardless of the light conditions. Forensic WDR provides clarity when there’s both dark and light areas in the scene. And Lightfinder for sharp, color images in low light. Thanks to built-in IR illumination with individually controllable LEDs, it delivers clear, reflection-free footage even in low light or complete darkness. Furthermore, it supports up to four digital PTZ views as well as dewarped panorama, quad, corner, and corridor views.
Secure and easy
AXIS M4317-PLR offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Axis Zipstream with H.264/H.265 significantly reduces bandwidth and storage requirements. Furthermore, with a deep learning processing unit (DLPU), this high-performance camera delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video.
| Vendor | AXIS |
|---|---|
| RJ45 | 1 |
| Model | M4317-PLR |
| Camera design | Dome |
| Network Camera Type | Fixed Dome/Outdoor |
| Resolution | 6 Mega Pixel |
| Focal Length | 1.1 mm |
| IR Illumination | Yes |
| Sensor size | 1/1.8" |
| Min. Illumination | 0.03 Lux |
| Electronic Shutter Speed | 1/33500 s to 0.2 s |
| Power options | PoE |
| Power consumption | 12.95 Watts |
| Environment | Outdoor |
| Operating temperature range | -40 to 50 °C |
| Colour | White |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002887 cubm |
| Product Net Weight | 0.86 kg |
| Unit Calculated Weight | 1 kg |
| Summary | Axis M4317-PLR. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Lens viewing angle, horizontal: 182°, Lens viewing angle, vertical: 182°, Camera shutter speed: 1/33500 – 0.2 s. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Sensor type (panoramic camera): CMOS, Supported graphics resolutions (panoramic camera): 384 x 288, 2560 x 1440, 2560 x 1920 |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Placement supported | Outdoor |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Dome |
| Housing material | Aluminium/Polycarbonate (PC) |
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Mounting type | Ceiling |
| Product colour | White |
| Camera shutter speed | 1/33500 – 0.2 s |
| Lens viewing angle, horizontal | 182 ° |
| Lens viewing angle, vertical | 182 ° |
| Optical sensor size | 1/1.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Sensor type (panoramic camera) | CMOS |
| Supported graphics resolutions (panoramic camera) | 2560 x 1440/2560 x 1920/384 x 288 |
| LED type | IR |
| Night vision | Yes |
| Frame rate | 60 fps |
| Maximum resolution | 2560 x 1920 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Privacy masking | Yes |
| Supported graphics resolutions | 1920 x 1440/256 x 144/2560 x 1440/2560 x 1920/384 x 288 |
| Total megapixels | 6 MP |
| Video compression formats | H.264/H.265 |
| Video streaming | Yes |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 8192 MB |
| Internal memory | 2048 MB |
| IP address filtering | Yes |
| Security algorithms | EAP-TLS/MSCHAPv2/PEAP/TLS |
| Power consumption (Power over Ethernet (PoE)) | 5.7 W |
| Power source type | PoE |
| Operating relative humidity (H-H) | 10 – 100 % |
| Operating temperature (T-T) | -40 – 50 °C |
| Storage relative humidity (H-H) | 5 – 95 % |
| Storage temperature (T-T) | -40 – 65 °C |
| Diameter | 149 mm |
| Height | 70 mm |
| Weight | 860 g |
| Number of cameras | 1 |
| Manufacturer Code | 02833-001 |
| ELKO Code | 1408686 |
| Warranty | 60 |
