Axis 02113-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.18 lx, Tilt angle range: -40 – 65°, Pan range: -180 – 180°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″). Focal length range: 3 – 6 mm
Laost otsas
Laost otsas

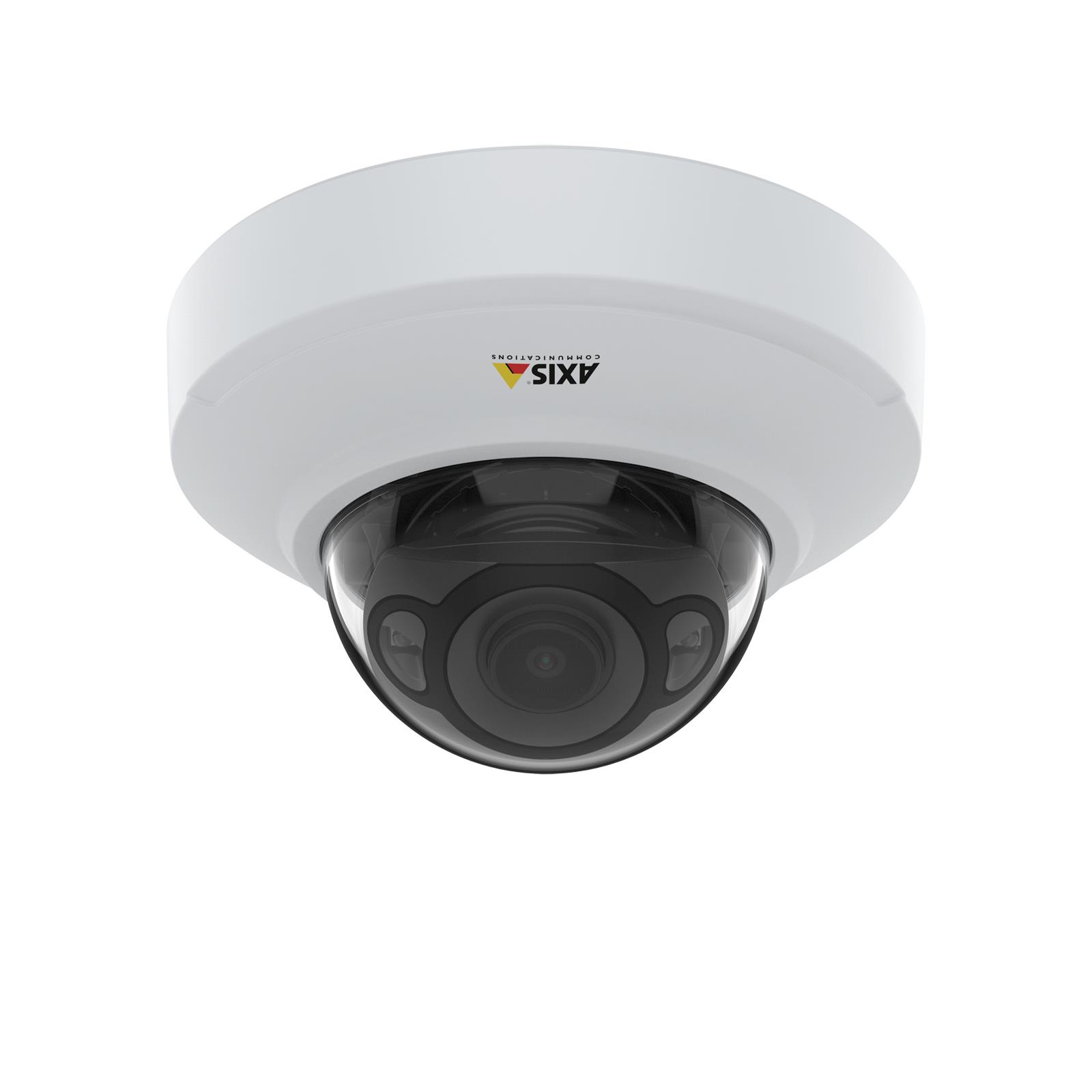

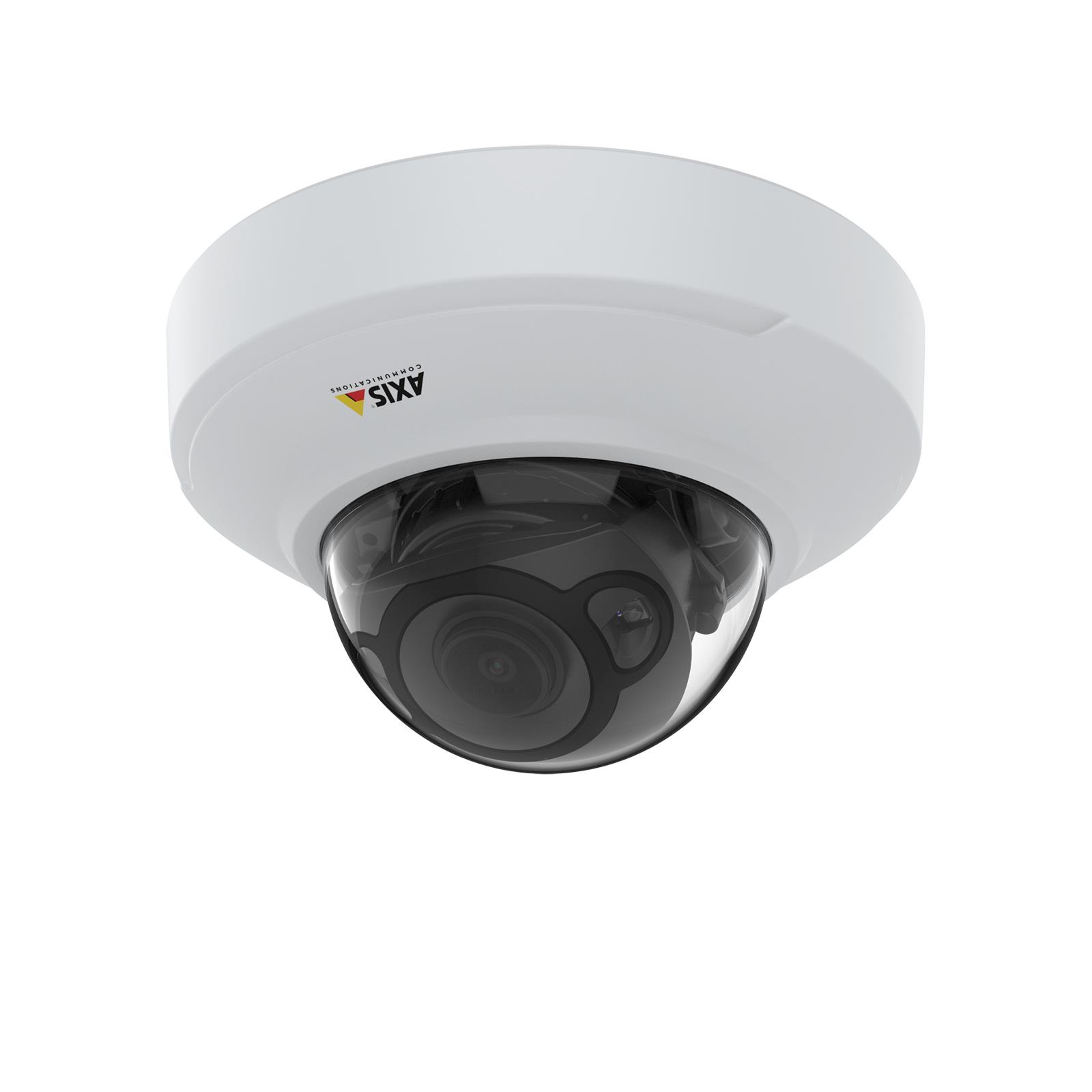

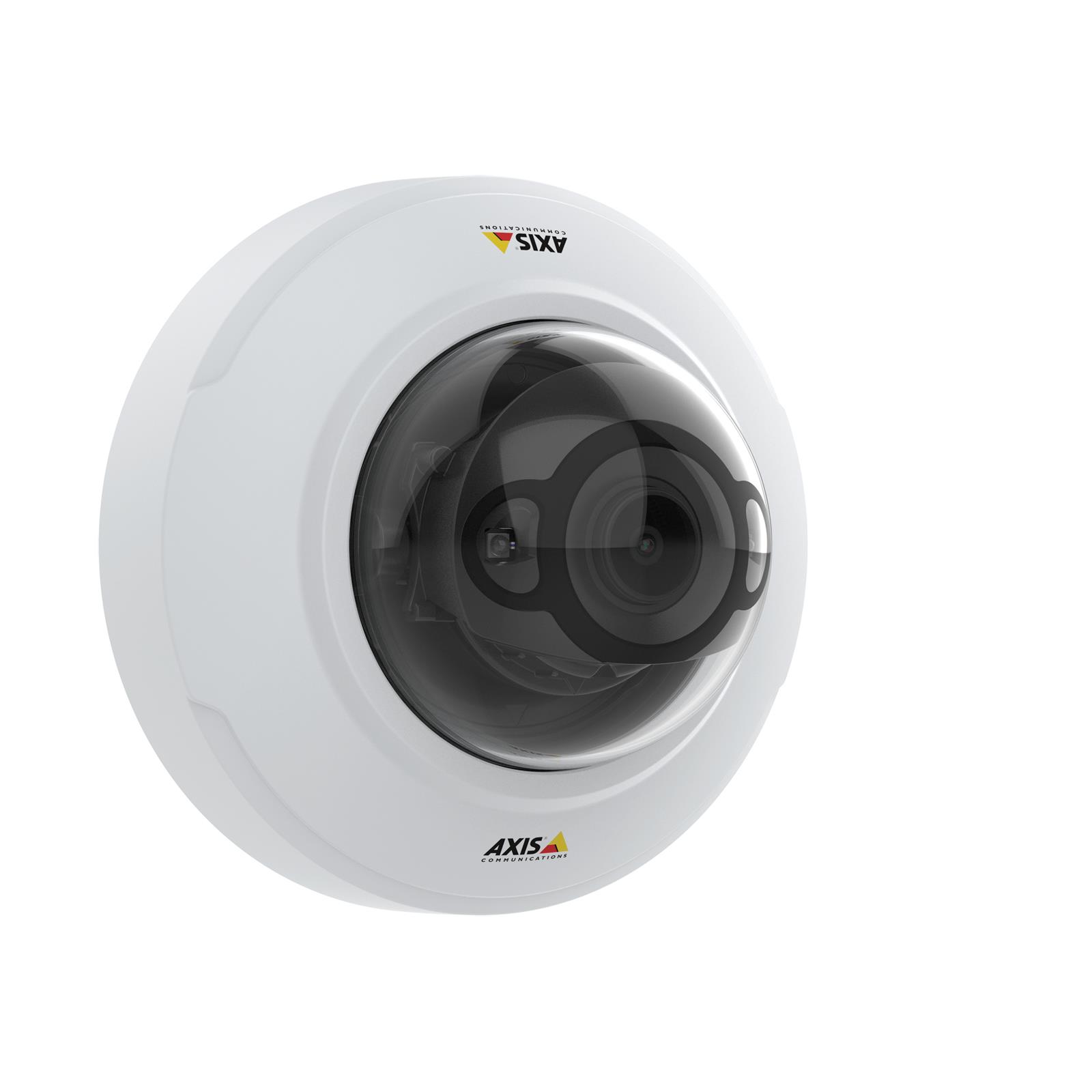

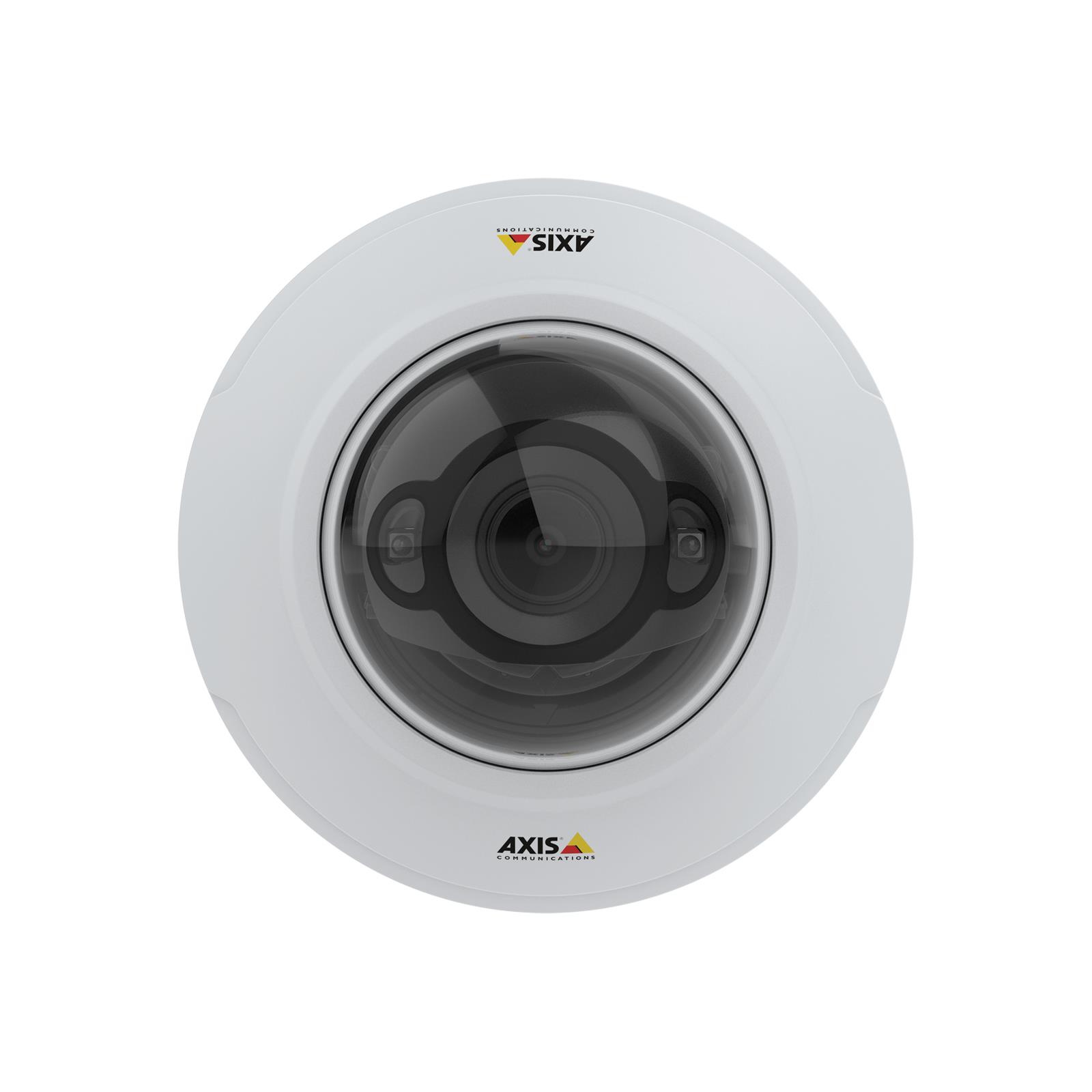

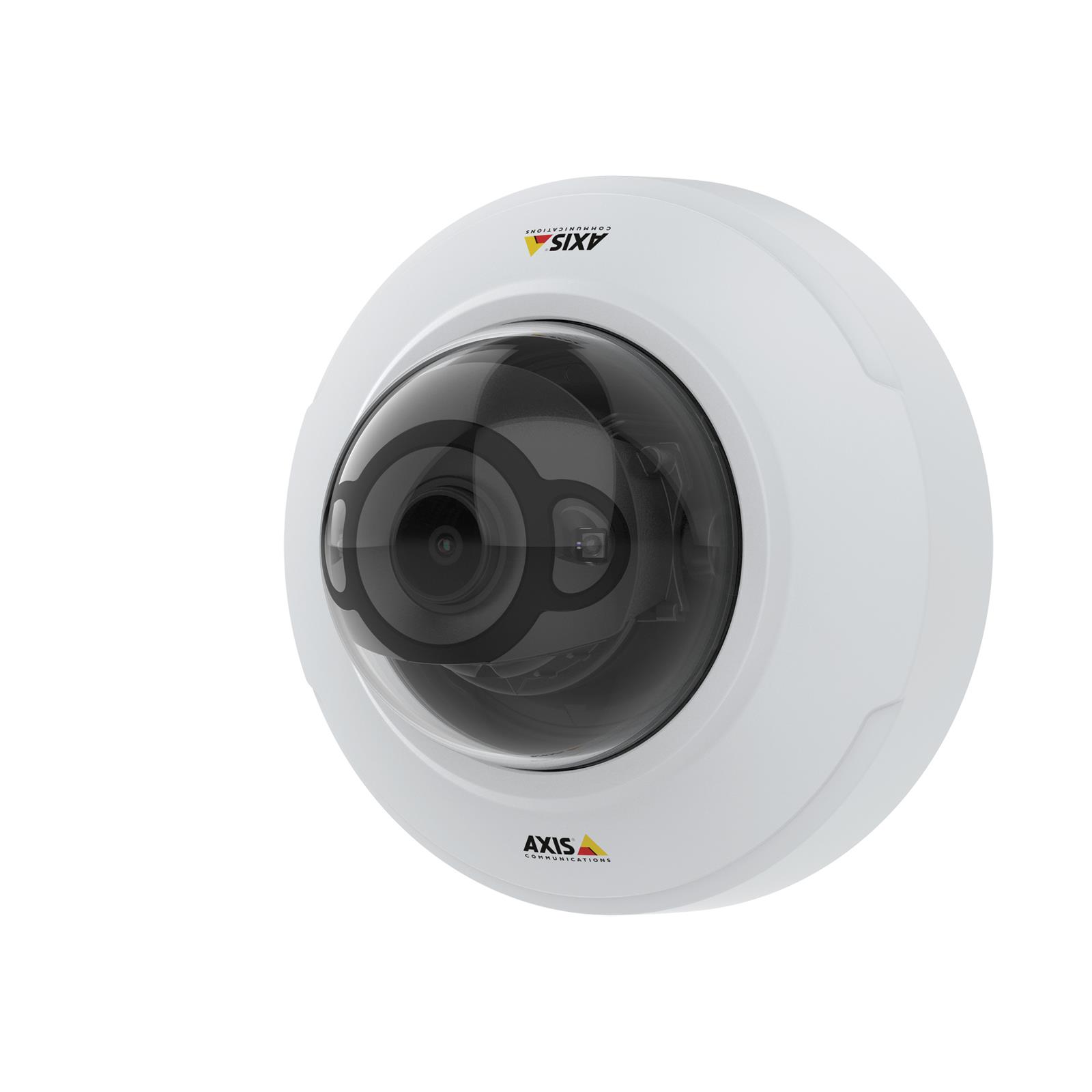

The compact and discreet AXIS M4216-LV delivers great images, day and night. With a deep learning processing unit (DLPU), it’s possible to take advantage of intelligent applications based on deep learning on the edge. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Designed to blend seamlessly into any environment, the camera can be repainted and offers a wide range of accessories for discreet monitoring. It features an HDMI port and offers the flexibility to add audio and I/O connectivity using accessories.
| Vendor | AXIS |
|---|---|
| RJ45 | 1 |
| Model | M4216-LV |
| Camera design | Dome |
| Network Camera Type | Fixed Dome/HDTV/Megapixel |
| Focal Length | 3–6 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.7” |
| Min. Illumination | 0.03 Lux |
| Electronic Shutter Speed | 1/37500 s to 1/5 s |
| Power options | PoE |
| Power supply requirements | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 5 W, max 9.7 W |
| Power consumption | 9.7 Watts |
| Environment | Indoor |
| Operating temperature range | 0 °C to 45 °C |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.001248 cubm |
| Product Net Weight | 0.375 kg |
| Unit Calculated Weight | 0.5 kg |
| Summary | Axis 02113-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.18 lx, Tilt angle range: -40 – 65°, Pan range: -180 – 180°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 3 – 6 mm |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Languages support | English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese |
| Number of languages | 11 |
| Placement supported | Indoor |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Dome |
| Housing material | Aluminium/Polycarbonate (PC) |
| IK code | IK08 |
| International Protection (IP) code | IP42 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Camera pan control | Yes |
| Camera shutter speed | 1/37500 – 1/5 s |
| Camera tilt control | Yes |
| Minimum illumination | 0.18 lx |
| Pan range | -180 – 180 ° |
| Tilt angle range | -40 – 65 ° |
| Number of sensors | 1 |
| Optical sensor size | 1/2.7 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Focal length range | 3 – 6 mm |
| Number of lenses | 1 |
| Zoom capability | Yes |
| Infra-red wavelength | 855 nm |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 20 m |
| Flip & mirror | Yes |
| Frame rate | 30 fps |
| Maximum resolution | 2304 x 1728 pixels |
| Privacy masking | Yes |
| Supported video modes | 1080p/720p |
| Text caption overlay | Yes |
| Total megapixels | 4 MP |
| Video compression formats | H.264/H.265 |
| Video streaming | Yes |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI, LLDP |
| Wi-Fi | No |
| Built-in HDD | No |
| Built-in SSD | No |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD |
| Flash memory | 512 MB |
| Internal memory | 1024 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Active tampering alarm | Yes |
| Alert notification type | E-mail,Text alert message |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Password protection | Yes |
| Security algorithms | EAP-TLS |
| Video motion detection | Yes |
| Power consumption (max) | 9.7 W |
| Power consumption (typical) | 5 W |
| Power source type | PoE |
| Operating relative humidity (H-H) | 10 – 85 % |
| Operating temperature (T-T) | 0 – 45 °C |
| Storage relative humidity (H-H) | 5 – 95 % |
| Storage temperature (T-T) | -40 – 65 °C |
| Windows operating systems supported | Yes |
| Diameter | 121 mm |
| Height | 71 mm |
| Weight | 375 g |
| Number of cameras | 1 |
| Doesn't contain | BFR/PVC |
| Manufacturer Code | 02113-001 |
| ELKO Code | 1363245 |
| Warranty | 60 |
