Axis M3905-R. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.02 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 107°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9″). Detect distance: 21.1 m, Observe distance: 7.4 m, Recognize distance: 4.2 m
Laost otsas
Laost otsas

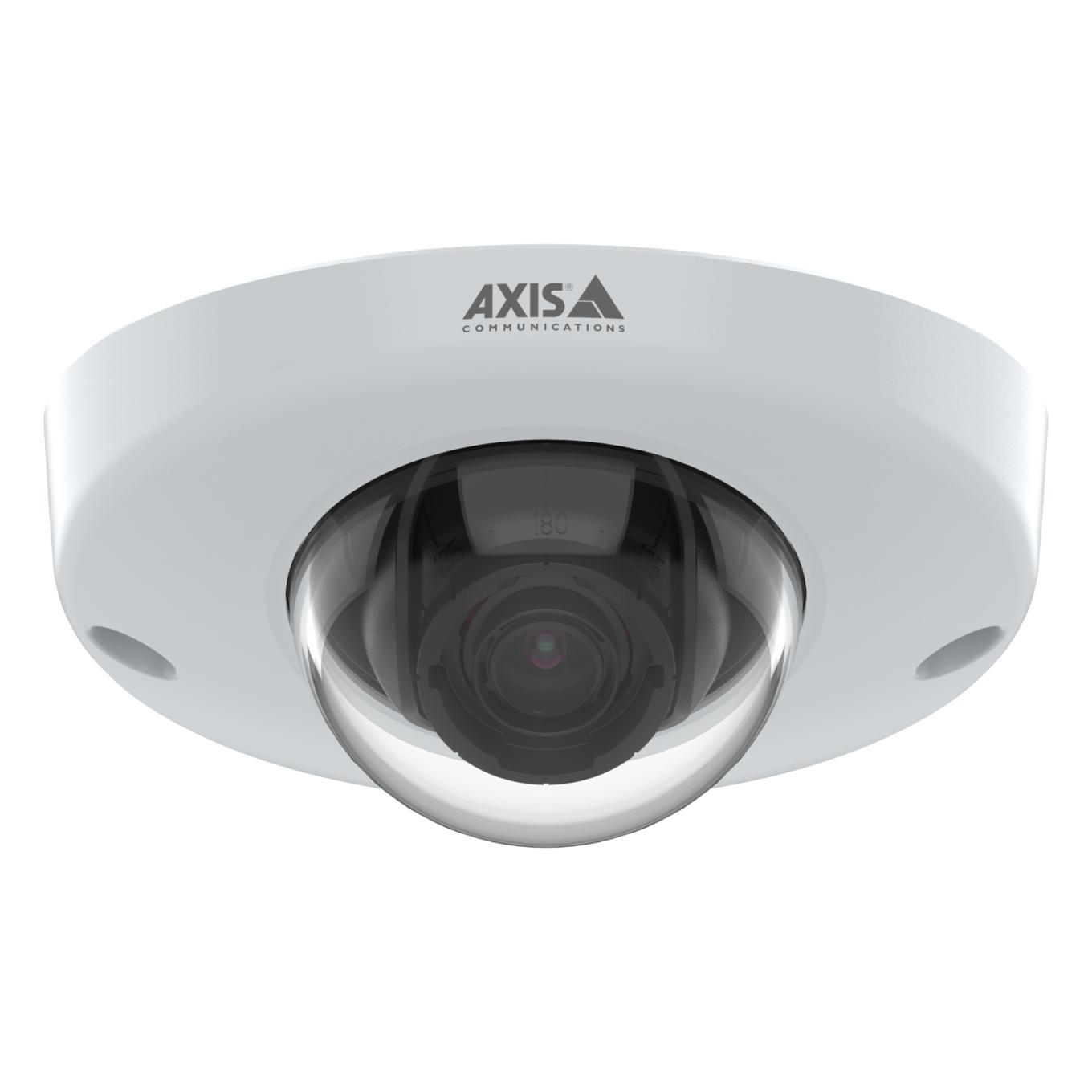

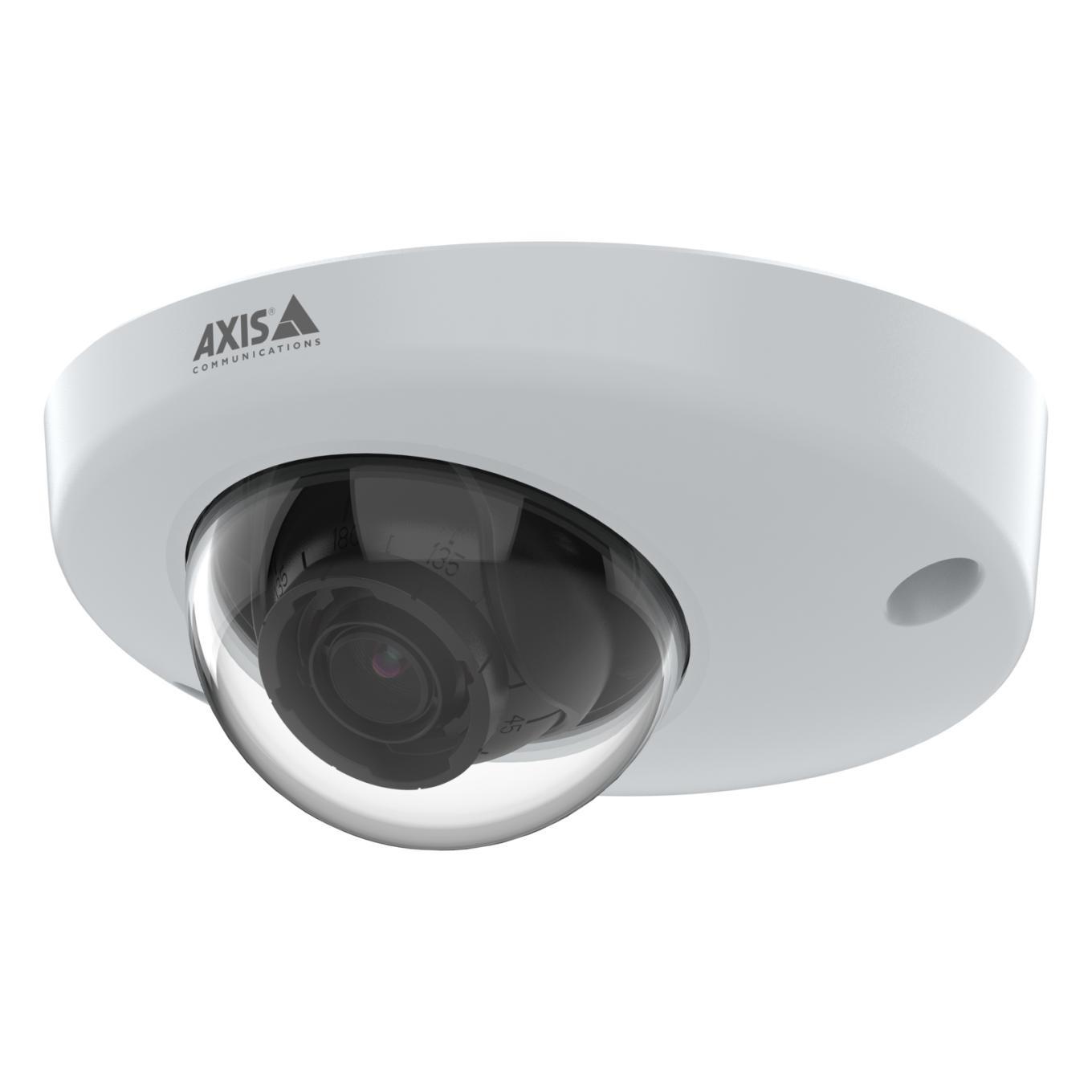

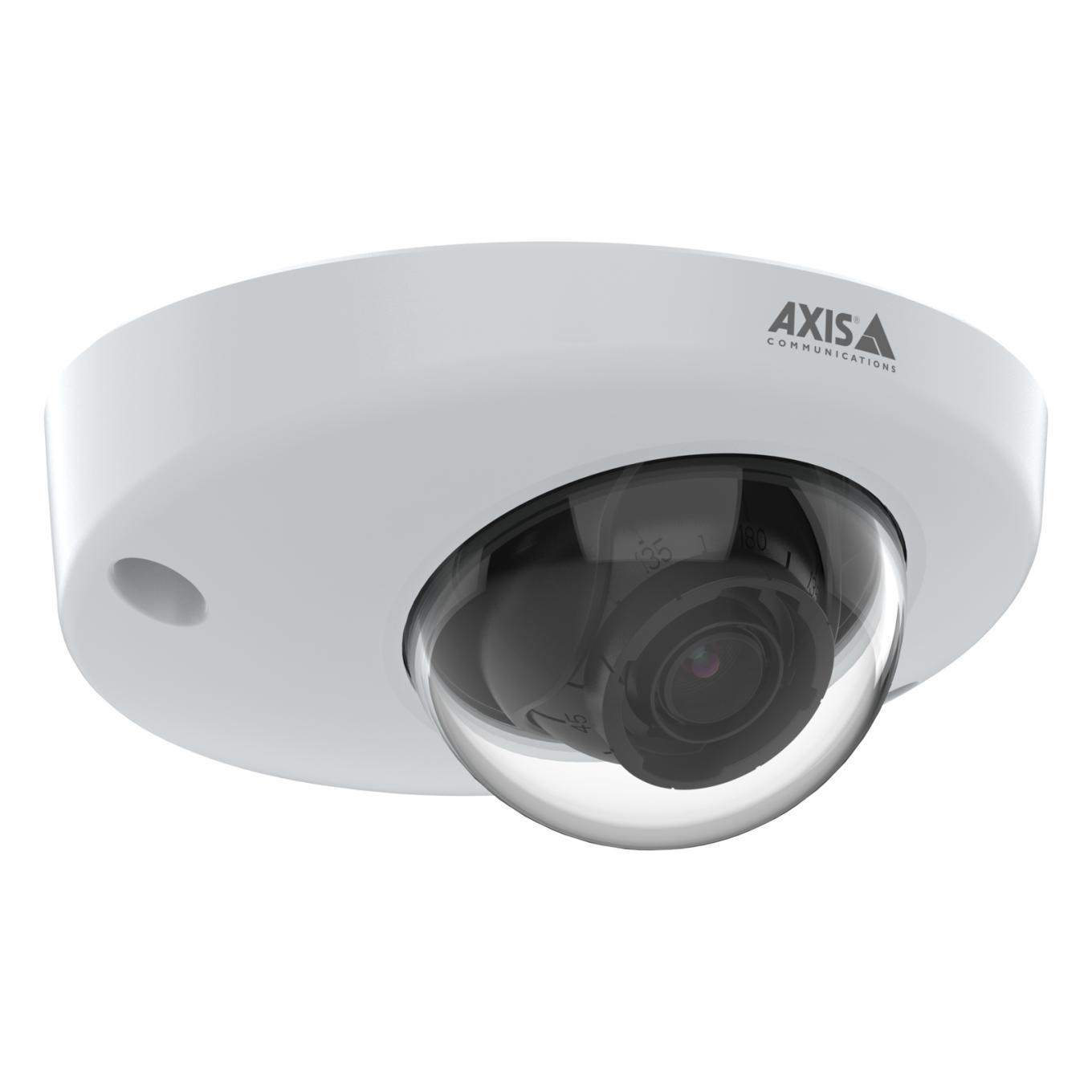

AXIS M3905-R Dome Camera
Specifically designed for indoor surveillance onboard buses, this rugged dome camera can withstand shock and vibrations and ensures high-performance in various light conditions.
Optimized for surveillance onboard buses
This 2 MP onboard camera ensures high-performance even in changing light conditions. With Forensic WDR you get clarity even when there are both dark and light areas in the scene. And, Axis Lightfinder captures full-color images in extremely low light. Thanks to traffic light mode, AXIS M3905-R can distinguish the color of traffic lights in dark scenes. Furthermore, this product comes in two different product variations with different lens options. And additionally, there are various lens options available as accessories for customized monitoring purposes.
For tough onboard conditions
AXIS M3905-R complies with transportation-industry regulations for buses including fire-safety. This rugged indoor camera is IK10, IP66-, IP67-rated and comes with either M12 or RJ45 connector for flexible installation. Additionally, when used together with AXIS TP3826-E Housing it can be mounted on the outside of a vehicle to withstand tough weather.
Secure and cost-effective
This onboard indoor camera offers built-in cybersecurity features to help prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Thanks to Zipstream technology, it significantly reduces storage and bandwidth requirements without compromising image quality. The result is high-forensic usability, significant savings, and a camera that’s perfect for onboard conditions.
| Vendor | AXIS |
|---|---|
| Model | M3905-R |
| Camera design | Dome |
| Network Camera Type | Fixed Dome/HDTV/Megapixel/Outdoor |
| Resolution | 2 Mega Pixel |
| Focal Length | 2.8 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.9” |
| Lens Mount | M12 |
| Min. Illumination | 0.04 Lux |
| Power options | PoE |
| Power consumption | 3.8 Watts |
| Environment | Outdoor |
| Operating temperature range | -30 to 55 °C |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.001734 cubm |
| Product Net Weight | 0.241 kg |
| Unit Calculated Weight | 0.373 kg |
| Summary | Axis M3905-R. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, White, Form factor: Dome. Minimum illumination: 0.02 lx, Angle of rotation: 350°, Lens viewing angle, horizontal: 107°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Detect distance: 21.1 m, Observe distance: 7.4 m, Recognize distance: 4.2 m |
| Certification | CE, ECE, KC, RCM, UL/cUL, UKCA, VCCI, WEEE |
| Connectivity technology | Wired |
| Languages support | Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese |
| Placement supported | Indoor |
| Preset points | Yes |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Tour recording | Yes |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Dome |
| Housing material | Aluminium |
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Mounting type | Ceiling |
| Product colour | Black/White |
| Angle of rotation | 350 ° |
| Camera pixel size | 2.8 µm |
| Camera shutter speed | 1/19000 – 1/5 s |
| Lens viewing angle, horizontal | 107 ° |
| Lens viewing angle, vertical | 56 ° |
| Minimum illumination | 0.02 lx |
| Number of Privacy masking areas | 32 |
| Pan range | -30 – 30 ° |
| Tilt angle range | 15 – 90 ° |
| Number of sensors | 1 |
| Optical sensor size | 1/2.9 " |
| Sensor type | CMOS |
| Closest focusing distance | 0.3 m |
| Detect distance | 21.1 m |
| Fixed focal length | 2.8 mm |
| Identify distance | 2.1 m |
| Maximum aperture number | 1.2 |
| Number of lenses | 1 |
| Observe distance | 7.4 m |
| Recognize distance | 4.2 m |
| Bit rate control | Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Image quality adjustment | Brightness/Contrast/Sharpness |
| Maximum resolution | 1920 x 1080 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Privacy masking | Yes |
| Supported graphics resolutions | 1280 x 800/1280 x 960/1920 x 1080 (HD 1080)/320 x 240/640 x 360/640 x 400 |
| Total megapixels | 2 MP |
| Video formats supported | H.264/H.265/M-JPEG |
| Video streaming | Yes |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1AE/IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 512 MB |
| Internal memory | 1024 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alert notification type | |
| Digest authentication | Yes |
| Password protection | Yes |
| Pixel counter | Yes |
| Security algorithms | 256-bit AES-XTS/EAP-TLS/HTTPS/MSCHAPv2/PEAP |
| Video motion detection | Yes |
| Power consumption (max) | 3.8 W |
| Power consumption (typical) | 2.2 W |
| Power source type | PoE |
| Operating relative humidity (H-H) | 10 – 100 % |
| Operating temperature (T-T) | -30 – 55 °C |
| Storage temperature (T-T) | -40 – 65 °C |
| Depth | 110 mm |
| Height | 50 mm |
| Weight | 241 g |
| Width | 110 mm |
| Compliance certificates | REACH/RoHS |
| Manual | Yes |
| Number of cameras | 1 |
| Doesn't contain | CFR/PVC/BFR |
| Manufacturer Code | 03118-001 |
| ELKO Code | 1434253 |
| Warranty | 60 |
