Axis 02501-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.04 lx, Angle of rotation: 250°, Lens viewing angle, horizontal: 88°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9″). Lens diameter: 3.6 mm, Closest focusing distance: 0.3 m
Laost otsas
Laost otsas

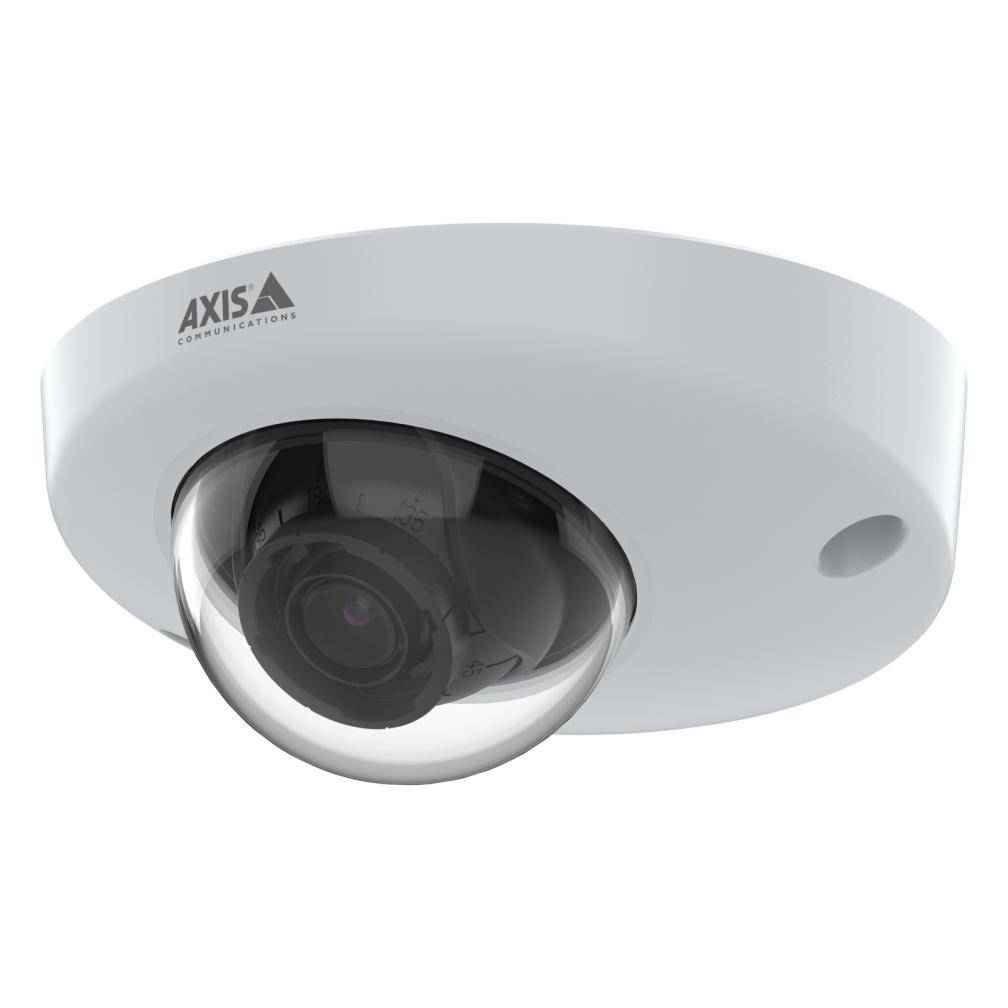

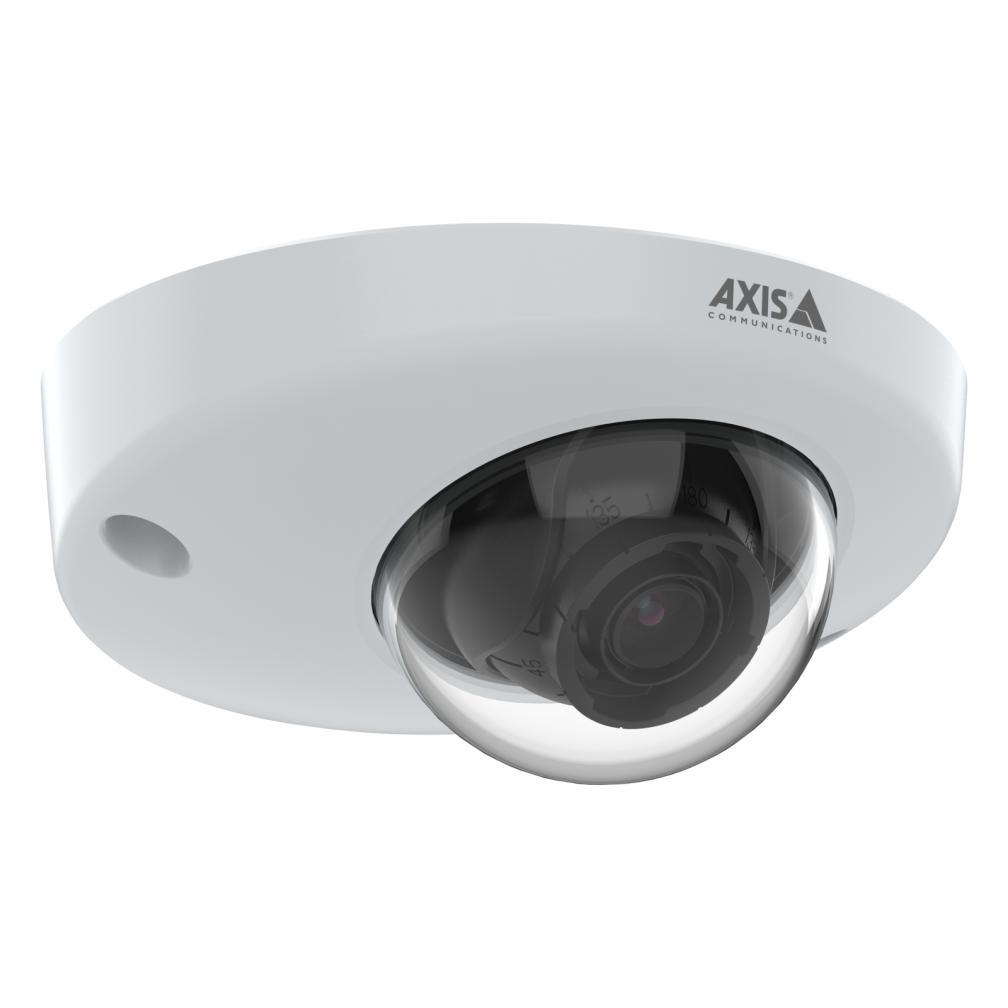

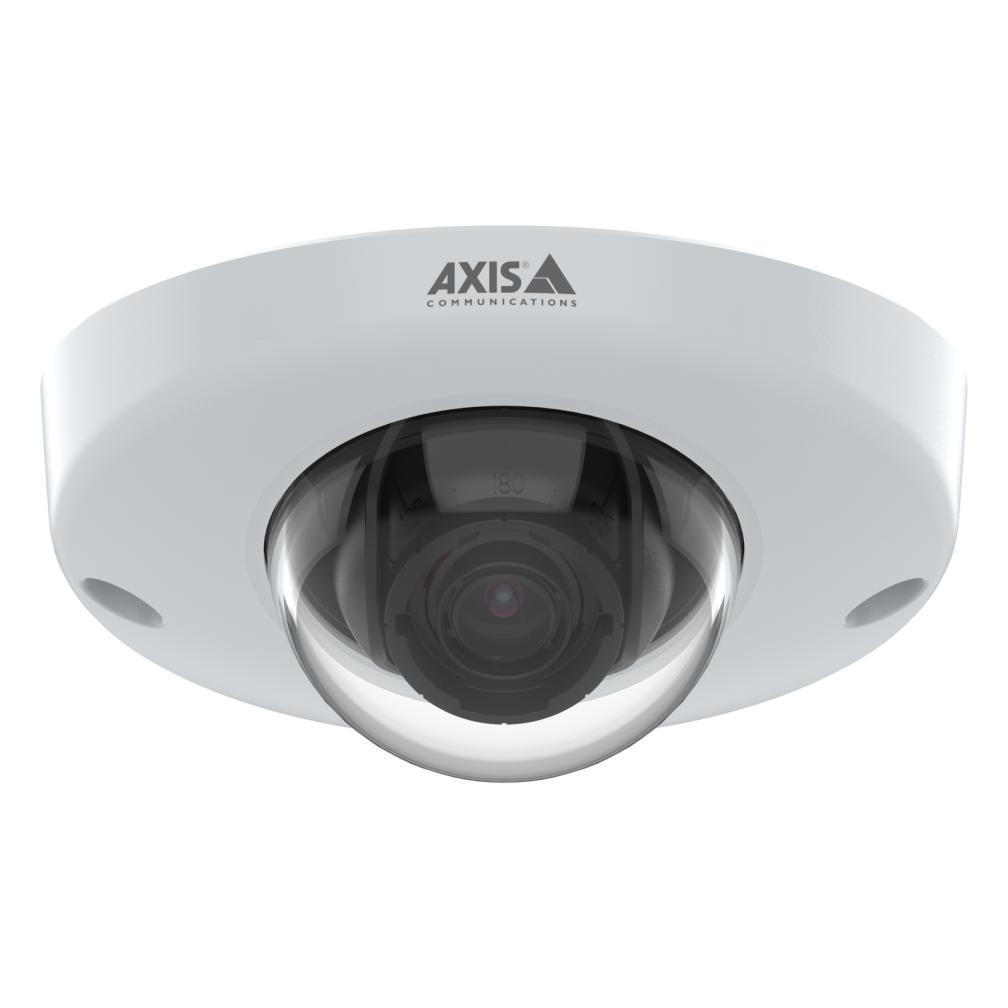

This compact and discreet 2 MP onboard camera complies with transportation-industry regulations including fire-safety for buses. It can withstand vibrations and a wide range of temperatures. Additionally, with AXIS TP3826-E housing this dome camera can be mounted on the outside of a bus. Thanks to Lightfinder and Forensic WDR, it provides details even in challenging light conditions. And with traffic light mode it can distinguish the color of traffic lights in dark scenes. Optional M12 lenses are available to adjust field of view for customized monitoring purposes.
| Vendor | AXIS |
|---|---|
| Model | M3905-R |
| Camera design | Dome |
| Network Camera Type | Fixed Dome/HDTV/Megapixel/Outdoor |
| Resolution | 2 Mega Pixel |
| Focal Length | 3.6 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.9” |
| Lens Mount | M12 |
| Min. Illumination | 0.04 Lux |
| Power options | PoE |
| Power consumption | 3.8 Watts |
| Environment | Outdoor |
| Operating temperature range | -30 to 55 °C |
| Unit Calculated Volume | 0.001655 cubm |
| Product Net Weight | 0.241 kg |
| Unit Calculated Weight | 0.37 kg |
| Summary | Axis 02501-001. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Minimum illumination: 0.04 lx, Angle of rotation: 250°, Lens viewing angle, horizontal: 88°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Lens diameter: 3.6 mm, Closest focusing distance: 0.3 m |
| Built-in processor | Yes |
| Connectivity technology | Wired |
| Languages support | Czech/Dutch/English/Finnish/French/German/Italian/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese |
| Number of languages | 18 |
| Placement supported | Indoor |
| Preset points | Yes |
| Processor model | S6LM55 |
| PTZ control | Yes |
| PTZ modes | Digital PTZ |
| Tour recording | Yes |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Dome |
| Housing material | Aluminium/Polycarbonate (PC) |
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Mounting type | Ceiling |
| Product colour | White |
| Angle of rotation | 250 ° |
| Camera pan control | Yes |
| Camera shutter speed | 1/19000 – 1/5 s |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 88 ° |
| Lens viewing angle, vertical | 47 ° |
| Minimum illumination | 0.04 lx |
| Pan range | -30 – 30 ° |
| Tilt angle range | 15 – 90 ° |
| Number of sensors | 1 |
| Optical sensor size | 1/2.9 " |
| Sensor type | CMOS |
| Closest focusing distance | 0.3 m |
| Lens diameter | 3.6 mm |
| Maximum aperture number | 2 |
| Number of lenses | 1 |
| Night vision | No |
| Frame rate | 30 fps |
| Image quality adjustment | Brightness/Contrast/Mirror/Sharpness |
| Maximum resolution | 1920 x 1080 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction,3D noise reduction |
| Total megapixels | 2 MP |
| Video compression formats | AVC/H.264/H.265/HEVC/M-JPEG/MPEG4 |
| Video streaming | Yes |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Streaming method | Multicast |
| Supported network protocols | IPv4, IPv6 USGv6, HTTP, HTTPSc , HTTP/2, TLSc , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, |
| Wi-Fi | No |
| Built-in HDD | No |
| Flash memory | 512 MB |
| Internal memory | 1024 MB |
| Digest authentication | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Password protection | Yes |
| Pixel counter | Yes |
| Security algorithms | 802.1x RADIUS |
| Power consumption (max) | 3.8 W |
| Power consumption (Power over Ethernet (PoE)) | 2.2 W |
| Power source type | PoE |
| Operating relative humidity (H-H) | 10 – 100 % |
| Operating temperature (T-T) | -30 – 55 °C |
| Storage temperature (T-T) | -40 – 65 °C |
| Diameter | 110 mm |
| Height | 50 mm |
| Weight | 241 g |
| Compliance certificates | CE/KC/REACH/RoHS/Trade Agreements Act (TAA)/UKCA/WEEE |
| Sustainability compliance | Yes |
| Manual | Yes |
| Number of cameras | 1 |
| Doesn't contain | BFR/PVC |
| Units per Shipping Box | 1 |
| Manufacturer Code | 02501-001 |
| ELKO Code | 1395997 |
| Warranty | 60 |
