Axis 02916-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 95°, Lens viewing angle, horizontal: 110°, Lens viewing angle, vertical: 60°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8″). Detect distance: 40 m, Observe distance: 15.9 m, Recognize distance: 8 m
Laost otsas
Laost otsas

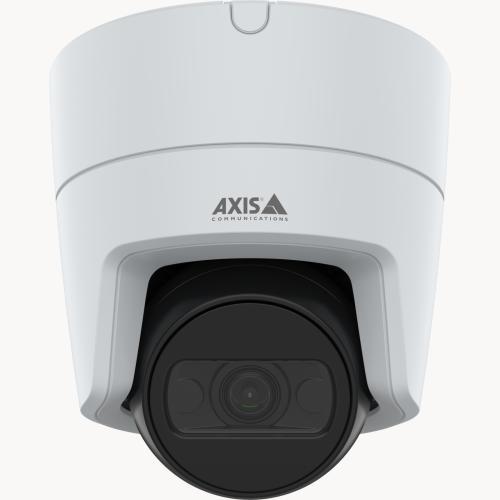

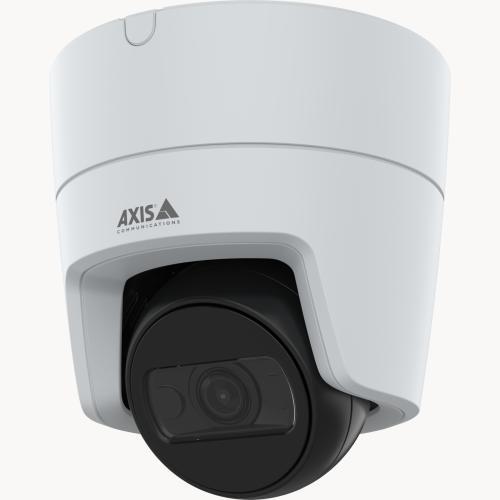

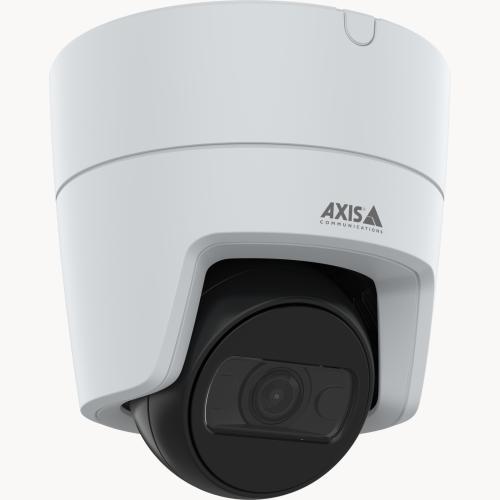

This turret-style, AI-powered dome camera delivers great 2 MP image quality. With AXIS Object Analytics it can detect and classify objects like humans and vehicles. It offers flexible installation both indoors and outdoors.
Great image quality
AXIS M3125-LVE offers great 2 MP resolution with 110° field of view. Built-in OptimizedIR allows for surveillance in complete darkness up to 20 m (65 ft) or more depending on the scene. So, there’s no need for extra lighting—you get unobtrusive surveillance both day and night. In addition, WDR preserves details when there are both light and dark areas in a scene. And Axis Lightfinder technology ensures increased light sensitivity and clear colors in low light.
Powerful with strong security
Including a deep learning processing unit (DLPU), this AI-based camera lets you run powerful analytics on the edge. For instance, it comes preinstalled with AXIS Object Analytics to detect, classify, track and count objects like humans and vehicles. This DLPU also delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-3 Level 3 certified, secure cryptographic key storage and operations.
Flexible and outdoor-ready
This flat-faced dome is designed to suppress light reflections and deliver great image quality and usability. It offers flexible installation both indoors and outdoors. Plus, with a versatile set of mounting accessories including pendant kits, conduit back boxes, and recessed mount kits, it can be mounted on walls or ceilings. Compact and discreet, it’s available in black or white to blend in with different environments. Additionally, this weatherproof camera is IP66-rated and has an operating temperature range from -30 °C to 50 °C (-22 °F to 122 °F).
| Kaal | 0,39 kg |
|---|---|
| Vendor | AXIS |
| Model | M3125-LVE |
| Camera design | Dome |
| Network Camera Type | Fixed Dome/HDTV/Megapixel |
| Resolution | 2 Mega Pixel |
| Focal Length | 2.9 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.8" |
| Lens Mount | M12 |
| Min. Illumination | 0.03 Lux |
| Effective pixels | 1920×1080 |
| Electronic Shutter Speed | 1/25000 s to 2 s |
| Power options | PoE |
| Power supply requirements | (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Power consumption | 10.5 Watts |
| Environment | Outdoor |
| Operating temperature range | -30 °C to 50 °C |
| Included Accessories | Camera, installation guide, connector guard, cable gaskets, owner authentication key |
| Colour | White |
| Dimensions | 111.5 x 99.5 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.001728 cubm |
| Product Net Weight | 0.39 kg |
| Unit Calculated Weight | 0.5 kg |
| Summary | Axis 02916-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Angle of rotation: 95°, Lens viewing angle, horizontal: 110°, Lens viewing angle, vertical: 60°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Detect distance: 40 m, Observe distance: 15.9 m, Recognize distance: 8 m |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 110 dB |
| Languages support | Czech/Dutch/English/Finnish/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Swedish/Thai/Traditional Chinese/Turkish/Vietnamese |
| Placement supported | Indoor & outdoor |
| PTZ control | Yes |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Dome |
| IK code | IK08 |
| International Protection (IP) code | IP66 |
| Mounting type | Ceiling |
| Product colour | White |
| Angle of rotation | 95 ° |
| Camera shutter speed | 1/25000 – 2 s |
| Lens viewing angle, horizontal | 110 ° |
| Lens viewing angle, vertical | 60 ° |
| Pan range | -180 – 180 ° |
| Tilt angle range | 0 – 60 ° |
| Optical sensor size | 1/2.8 " |
| Sensor type | CMOS |
| Detect distance | 40 m |
| Fixed focal length | 2.9 mm |
| Identify distance | 4 m |
| Observe distance | 15.9 m |
| Recognize distance | 8 m |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 20 m |
| Frame rate | 60 fps |
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264/H.265/M-JPEG |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb , HTTP/2, TLSb , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC/SD |
| Flash memory | 512 MB |
| Internal memory | 1024 MB |
| Power source type | PoE |
| Operating relative humidity (H-H) | 10 – 100 % |
| Operating temperature (T-T) | -30 – 50 °C |
| Storage relative humidity (H-H) | 5 – 95 % |
| Storage temperature (T-T) | -40 – 65 °C |
| Weight | 390 g |
| Number of cameras | 1 |
| Manufacturer Code | 02916-001 |
| ELKO Code | 1426005 |
| Warranty | 60 |
