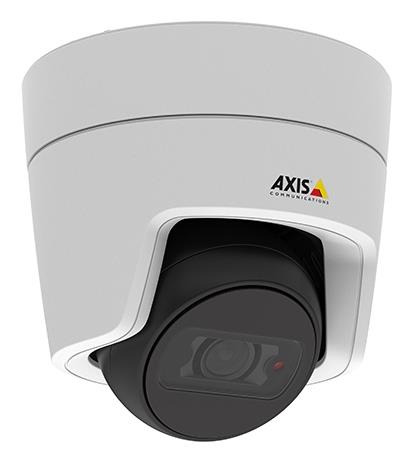

Axis M3105-L. Type: IP security camera, Connectivity technology: Wired, Languages support: Multi. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Angle of rotation: 190°, Lens viewing angle, horizontal: 115°, Lens viewing angle, vertical: 64°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8″). Fixed focal length: 2.8 mm
Laost otsas
Laost otsas
With its built-in IR illumination AXIS M3105-L is ideal for situations where it’s sometimes dark or the lighting can be poor. Its innovative flat-faced design suppresses light reflections to maximize image usability when recording in the dark. AXIS M3105-L also offers Wide Dynamic Range (WDR) – Forensic Capture, for excellent detail when light levels vary greatly, for example at entrances with bright daylight outside and dimmer light inside.
Axis quality at an attractive price
AXIS M3105-L gives you sharp HDTV 1080p image quality and a 115° field of view. It features Axis’ Zipstream technology, which greatly reduces storage and bandwidth needs, while capturing important details in full image quality. AXIS M3105-L also supports video analytics such as Video Motion Detection and Active tampering alarm. Thanks to the AXIS Camera Application Platform, you can also choose to install AXIS Cross Line Detection, and AXIS Digital Autotracking, as well as third-party analytics solutions such as people counting.
Fits in anywhere

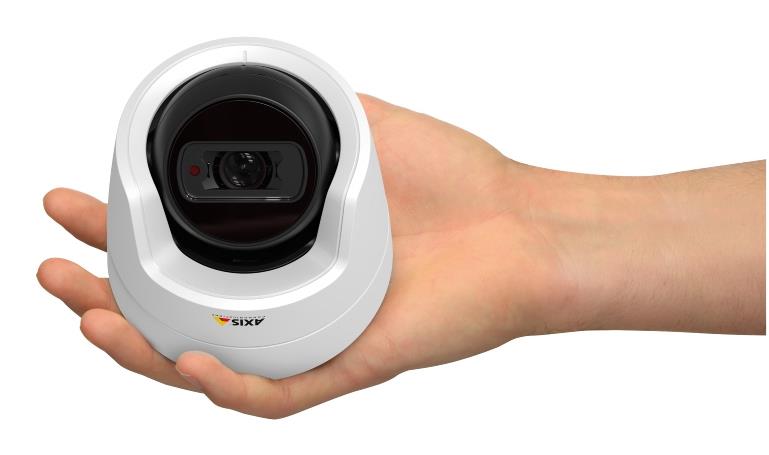

Small and flexible, AXIS M3105-L can be mounted on walls or ceilings as you prefer. Its smart design makes it easy to repaint to fit into any environment. And a long list of accessories, including black casing and various mounting kits, means it can be put up just about anywhere.
| Kaal | 0,36 kg |
|---|---|
| Vendor | AXIS |
| MicroSD Card Slot | 1 |
| RJ45 | 1 |
| Camera design | Dome |
| Network Camera Type | Fixed Dome |
| Resolution | 2 Mega Pixel |
| Focal Length | 2.8 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.8" |
| Lens Mount | M12 |
| Min. Illumination | 0.2 Lux |
| Effective pixels | 1920×1080 |
| Electronic Shutter Speed | 1/65000 s to 2 s |
| Power options | PoE |
| Power consumption | 4.2 Watts |
| Operating temperature range | 0 °C to 50 °C |
| Dimensions | D100 x 85 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002016 cubm |
| Product Net Weight | 0.36 kg |
| Unit Calculated Weight | 0.493 kg |
| Summary | Axis M3105-L. Type: IP security camera, Connectivity technology: Wired, Languages support: Multi. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Angle of rotation: 190°, Lens viewing angle, horizontal: 115°, Lens viewing angle, vertical: 64°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Fixed focal length: 2.8 mm |
| Certification | EN 55022 Class B, EN 55024, IEC 62471, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Languages support | Multi |
| Type | IP security camera |
| Form factor | Dome |
| Housing material | Polymer |
| International Protection (IP) code | IP42 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Protection features | Dust resistant/Water resistant |
| Angle of rotation | 190 ° |
| Camera shutter speed | 1/65000 – 2 s |
| Lens viewing angle, horizontal | 115 ° |
| Lens viewing angle, vertical | 64 ° |
| Pan range | -180 – 180 ° |
| Tilt angle range | 0 – 60 ° |
| White balance | Auto |
| Optical sensor size | 1/2.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Fixed focal length | 2.8 mm |
| Focus adjustment | 2.0 |
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 15 m |
| Full HD | Yes |
| Image quality adjustment | Brightness/Colour depth/Contrast/Sharpness |
| Maximum resolution | 1920 x 1080 pixels |
| Privacy masking | Yes |
| Supported graphics resolutions | 176 x 120/1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Text caption overlay | Yes |
| Video compression formats | AVC/H.264/M-JPEG/MPEG4 |
| Cabling technology | 10/100Base-T(X) |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u |
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Active tampering alarm | Yes |
| Alert notification type | |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Password protection type | User |
| Security algorithms | 802.1x RADIUS/HTTPS/SSH/SSL/TLS |
| Video motion detection | Yes |
| Firmware upgradeable | Yes |
| Web-based management | Yes |
| Power consumption (max) | 6.2 W |
| Power consumption (typical) | 4.2 W |
| Power over Ethernet (PoE) | Yes |
| Operating relative humidity (H-H) | 10 – 85 % |
| Operating temperature (T-T) | 0 – 50 °C |
| Storage temperature (T-T) | -40 – 65 °C |
| Windows operating systems supported | Yes |
| Depth | 100 mm |
| Diameter | 360 mm |
| Height | 85 mm |
| Width | 100 mm |
| Number of cameras | 1 |
| Quick installation guide | Yes |
| Screws included | Yes |
| Lens mount interface | M12 |
| Removable IR-cut filter | Yes |
| Harmonized System (HS) code | 85258900 |
| Manufacturer Code | 0867-001 |
| ELKO Code | 1191042 |
| Warranty | 60 |
