Axis M3104-LVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.04 lx, Angle of rotation: 95°, Lens viewing angle, horizontal: 80°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8″). Fixed focal length: 2.8 mm
Laost otsas
Laost otsas
– Built-in IR illumination
– HDTV 720p video quality
– Axis’ Zipstream technology
– Supports video analytics
– Discreet, flexible and outdoor-ready
– Fast, easy, cost-effective installation

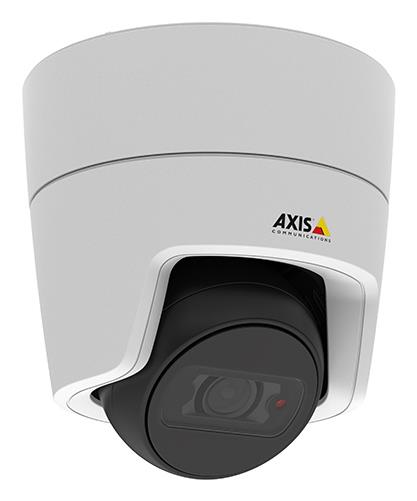

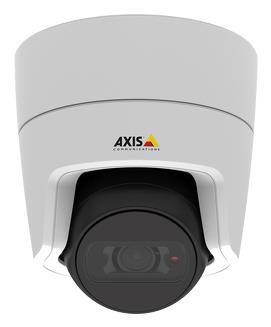

AXIS M3104-LVE is a flexible mini dome that gives you built-in IR illumination and HDTV 720p video quality at an attractive price. It’s outdoor ready and perfect at the back entrance of a store or hotel, for instance.
More light – or less?
With its built-in IR illumination, AXIS M3104-LVE is ideal for situations where it’s sometimes dark or the lighting can be poor. Its innovative flat-faced design suppresses light reflections to maximize image usability when recording in the dark. AXIS M3104-LVE also offers Wide Dynamic Range (WDR) – Forensic Capture for excellent detail when light levels vary greatly, for example at entrances with bright daylight outside and dimmer light inside.
Axis quality at an attractive price
AXIS M3104-LVE gives you sharp HDTV 720p image quality and an 80° field of view. It features Axis’ Zipstream technology, which greatly reduces storage and bandwidth needs, while capturing important details in full image quality. AXIS M3104-LVE also supports video analytics such as Video Motion Detection and Active tampering alarm. Thanks to the AXIS Camera Application Platform, you can also choose to install AXIS Cross Line Detection, and AXIS Digital Autotracking, as well as third-party analytics solutions such as people counting.
Fits in anywhere
Small and flexible, AXIS M3104-LVE can be mounted on walls or ceilings as you prefer. Its smart design makes it easy to repaint to fit into any environment. And a long list of accessories, including black casing and various mounting kits, means it can be put up just about anywhere.
| Vendor | AXIS |
|---|---|
| Alarm In | 1 |
| Alarm Out | 1 |
| RJ45 | 1 |
| Network Camera Type | Fixed Dome |
| Resolution | 1 Mega Pixel |
| Focal Length | 2.8mm |
| IR Illumination | Yes |
| Sensor size | 1/2.8" |
| Microphone | No |
| Lens Mount | M12 |
| Min. Illumination | 0.04 Lux |
| Effective pixels | 921600 |
| Electronic Shutter Speed | 1/8000 s to 1/6 s |
| Power supply requirements | Power over Ethernet IEEE 802.3af/802.3a Type 1 Class 2 max 6.3W |
| Operating temperature range | -30 °C to 50 °C |
| Colour | White |
| Dimensions | D132 x 93 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002016 cubm |
| Product Net Weight | 0.5 kg |
| Unit Calculated Weight | 0.52 kg |
| Summary | Axis M3104-LVE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.04 lx, Angle of rotation: 95°, Lens viewing angle, horizontal: 80°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Fixed focal length: 2.8 mm |
| Certification | EN 55022 Class B, EN 55024, IEC 62471, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class B, KN35, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78, IEC 60068-2-14, IEC 60068- |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Languages support | English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Dome |
| Housing material | Acrylonitrile styrene acrylate (ASA) |
| International Protection (IP) code | IP66 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Protection features | Dust resistant/Water resistant |
| Angle of rotation | 95 ° |
| Camera shutter speed | 1/66500 – 2 s |
| Lens viewing angle, horizontal | 80 ° |
| Lens viewing angle, vertical | 45 ° |
| Minimum illumination | 0.04 lx |
| Pan range | -180 – 180 ° |
| Tilt angle range | 0 – 60 ° |
| Optical sensor size | 1/2.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Fixed focal length | 2.8 mm |
| Maximum aperture number | 2 |
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 15 m |
| Flip & mirror | Yes |
| Frame rate | 30 fps |
| Image quality adjustment | Brightness/Colour depth/Contrast/Sharpness |
| Maximum resolution | 1280 x 720 pixels |
| Privacy masking | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720) |
| Supported video modes | 720p |
| Video compression formats | H.264/M-JPEG |
| Cabling technology | 10/100Base-T(X) |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Supported network protocols | IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Password protection type | User |
| Power consumption (max) | 6.2 W |
| Power consumption (typical) | 4.2 W |
| Power over Ethernet (PoE) | Yes |
| Operating relative humidity (H-H) | 10 – 100 % |
| Operating temperature (T-T) | -30 – 50 °C |
| Storage temperature (T-T) | -40 – 65 °C |
| Diameter | 101 mm |
| Height | 94 mm |
| Weight | 380 g |
| Number of cameras | 1 |
| User guide | Yes |
| Iris | Yes |
| Lens mount interface | M12 |
| Removable IR-cut filter | Yes |
| Manufacturer Code | 0866-001 |
| ELKO Code | 1191041 |
| Warranty | 60 |
