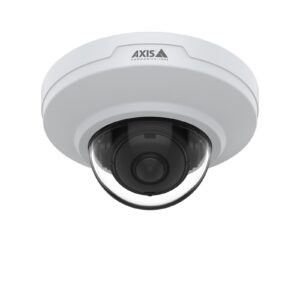

Axis M3046-V. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.3 lx, Angle of rotation: 352°, Lens viewing angle, horizontal: 128°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3″). Fixed focal length: 2.4 mm
Laost otsas
Laost otsas

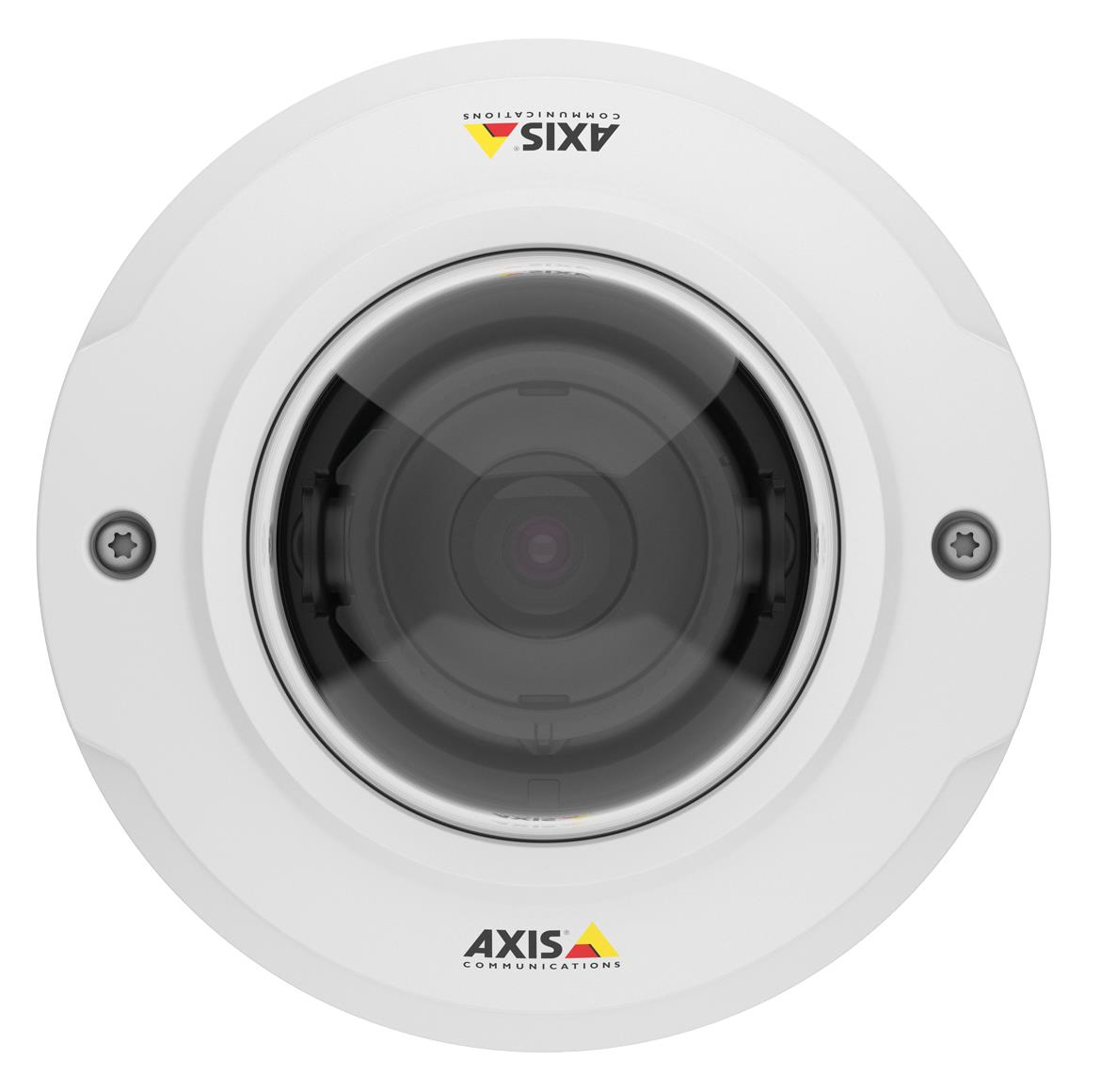

Quad HD / 4 MP, AXIS M3046-V provides exceptional video quality at an affordable price. AXIS M3046-V is perfect for stores, hotels, schools, banks and offices. And it features an HDMI output for live streaming to a public monitor.
AXIS M3046-V gives you sharp Quad HD video quality. It provides a horizontal field of view of 128°. And it comes with Wide Dynamic Range (WDR) technology for good detail even when light levels vary.
Sharp images. Low bandwidth
Axis’ Zipstream technology reduces storage and bandwidth by up to 50%, while capturing important details in full image quality. Video streams can be encoded in H.264 and Motion JPEG. And for monitoring long, narrow areas, Axis’ Corridor Format provides a portrait-shaped video stream. It maximizes image quality, while eliminating bandwidth and storage waste.
See the big picture – and the details – with a single camera
Thanks to digital pan/tilt/zoom (PTZ) capabilities and multi-view streaming, AXIS M3046-V lets you view separate video streams of zoomed-in sections of an image at the same time as you view the full overview image. This can be done with a single camera, which keeps installation and maintenance time and costs low, plus minimizes bandwidth and storage needs. AXIS M3046-V can also be used as an alternative to a camera with varifocal lens – its 4MP resolution and digital PTZ capability enable sharp, cropped out views in HDTV 1080p, for example, with a horizontal field of view between 95° and 128°.
Live streaming to a public monitor
AXIS M3046-V features an HDMI output that lets you connect your network cameras to a public monitor to show you have video surveillance in place.

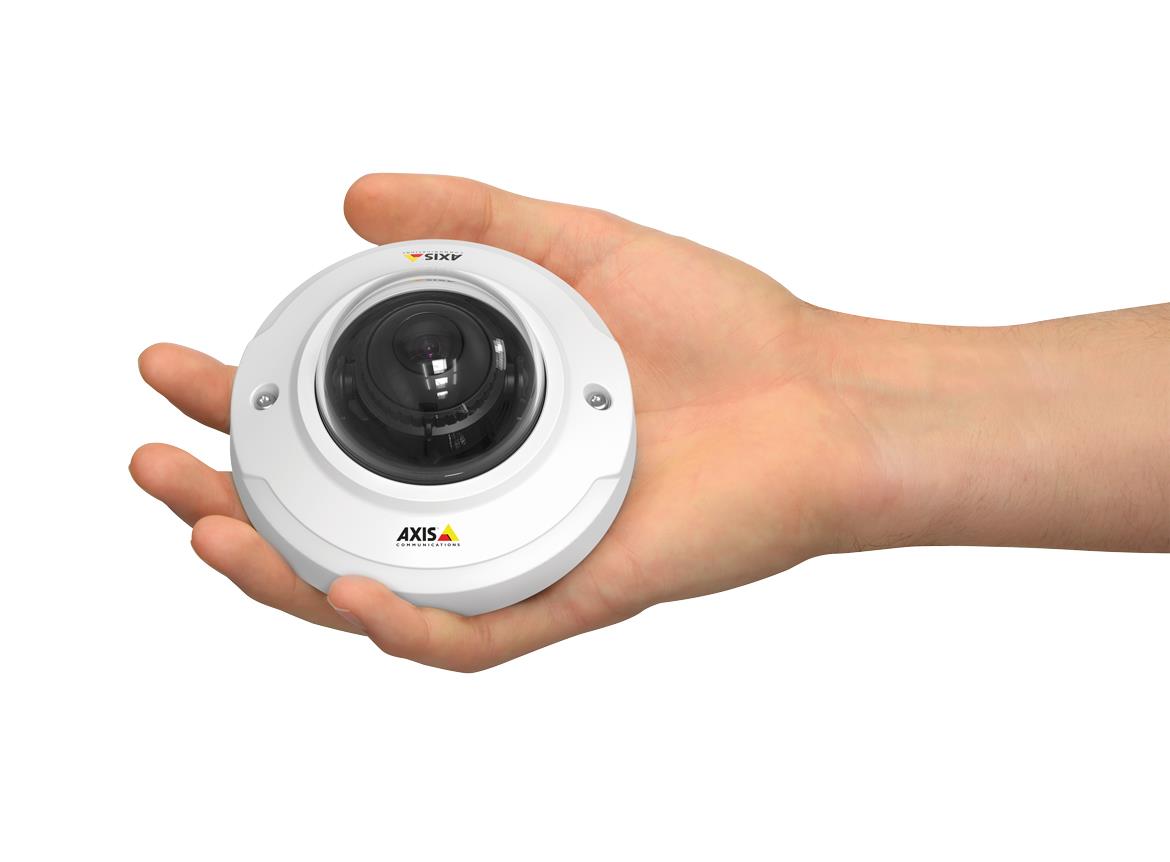

Fits in your hand – fits in anywhere
Small and compact, AXIS M3046-V can be mounted on walls or ceiling as you prefer. And you can easily repaint it to blend in with any environment. A black casing is also available as an accessory.
Installation that’s as easy as 1, 2, 3
To keep implementation costs low, AXIS M3046-V is designed for fast and easy installation. No focusing is required because it comes factory focused. And with its 3-axis camera-angle adjustment, it can be easily leveled and directed in any direction. AXIS M3046-V is also vandal and dust resistant for optimal performance and minimal downtime.
| Vendor | AXIS |
|---|---|
| MicroSD Card Slot | 1 |
| RJ45 | 1 |
| Network Camera Type | Fixed Dome/HDTV/Megapixel/PTZ |
| Focal Length | 2.4mm |
| Sensor size | 1/3" progressive scan RGB CMOS |
| Lens Mount | M12 |
| Min. Illumination | 0.3 Lux |
| Operating temperature range | 0°C to 40°C |
| Included Accessories | Instalation Guide, Windows decoder 1-user license, Torx L-key |
| Dimensions | ø101 x 56mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.001047 cubm |
| Product Net Weight | 0.18 kg |
| Unit Calculated Weight | 0.274 kg |
| Summary | Axis M3046-V. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.3 lx, Angle of rotation: 352°, Lens viewing angle, horizontal: 128°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Fixed focal length: 2.4 mm |
| Auto-tracking | Yes |
| Certification | EN 55032 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A / B, |
| Connectivity technology | Wired |
| Languages support | English/French/German/Italian/Japanese/Korean/Portuguese/Russian/Simplified Chinese/Spanish |
| Number of languages | 10 |
| Placement supported | Indoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Dome |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| International Protection (IP) code | IP42 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Protection features | Dust resistant/Water resistant |
| Angle of rotation | 352 ° |
| Camera shutter speed | 1/32500 – 1/5 s |
| Lens viewing angle, horizontal | 128 ° |
| Lens viewing angle, vertical | 69 ° |
| Minimum illumination | 0.3 lx |
| Pan range | -177 – 177 ° |
| Tilt angle range | -65 – 65 ° |
| White balance | Auto |
| Optical sensor size | 1/3 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Fixed focal length | 2.4 mm |
| Focus adjustment | 2.2 |
| Night vision | No |
| Maximum resolution | 2688 x 1520 pixels |
| Privacy masking | Yes |
| Supported graphics resolutions | 2688 x 1520/320 x 240 |
| Supported video modes | 1080p/720p |
| Text caption overlay | Yes |
| Total megapixels | 4 MP |
| Video compression formats | H.264/M-JPEG/MPEG4 |
| Cabling technology | 10/100Base-T(X) |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u |
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP TM , SNMPv1/v2c/v3 (MIB-II),DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP,ARP, SOCKS, SSH |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Active tampering alarm | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Motion sensor | Yes |
| Password protection type | User |
| Security algorithms | 802.1x RADIUS/HTTPS/SSH/SSL/TLS |
| Video motion detection | Yes |
| Web-based management | Yes |
| Power consumption (max) | 3.2 W |
| Power consumption (typical) | 2.8 W |
| Power over Ethernet (PoE) | Yes |
| Power source type | PoE |
| Operating relative humidity (H-H) | 15 – 85 % |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage relative humidity (H-H) | 15 – 85 % |
| Storage temperature (T-T) | -40 – 70 °C |
| Windows operating systems supported | Yes |
| Depth | 101 mm |
| Height | 56 mm |
| Weight | 180 g |
| Width | 101 mm |
| Bundled software | AXIS Camera Companion, AXIS Camera Station, Video |
| Number of cameras | 1 |
| Quick installation guide | Yes |
| Screws included | Yes |
| Iris | Yes |
| Manufacturer Code | 0806-001 |
| ELKO Code | 1190266 |
| Warranty | 60 |
