Axis M3026-VE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.06 lx, Angle of rotation: 180°, Lens viewing angle, horizontal: 106°. Sensor type: CMOS, Optical sensor size: 25.4 / 3.6 mm (1 / 3.6″). Lens diameter: 2 mm
Laost otsas
Laost otsas
Outdoor-ready, day/night fixed mini domes with HDTV performance.
– Compact, vandal-resistant, outdoor-ready design
– 3 MP / HDTV 1080p
– Day/night functionality
– Multi-view streaming
– Enhanced capacity for video analytics
– Input/output ports for external devices
– Power over Ethernet
– Edge storage
Outdoor-ready, day & night

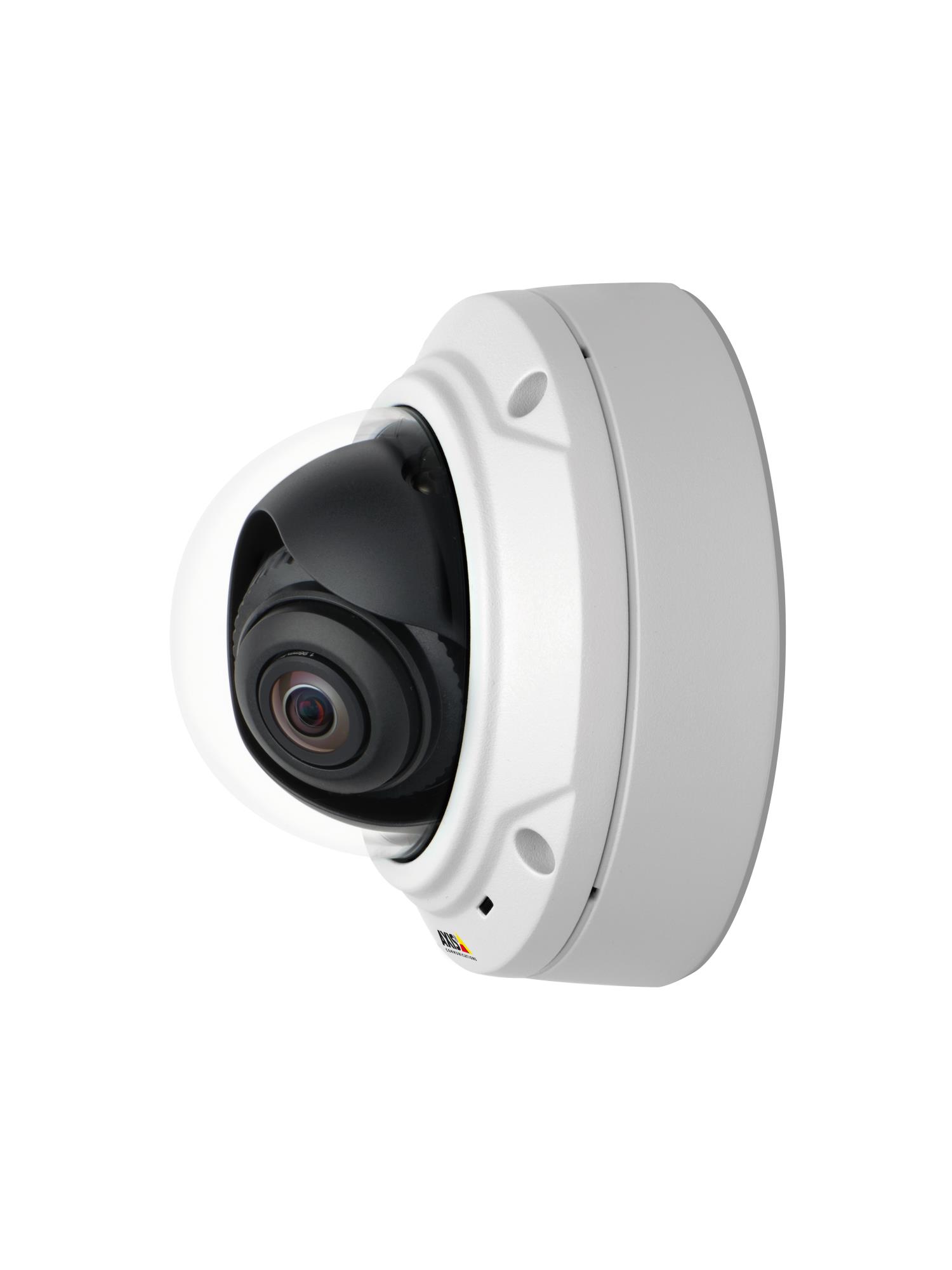

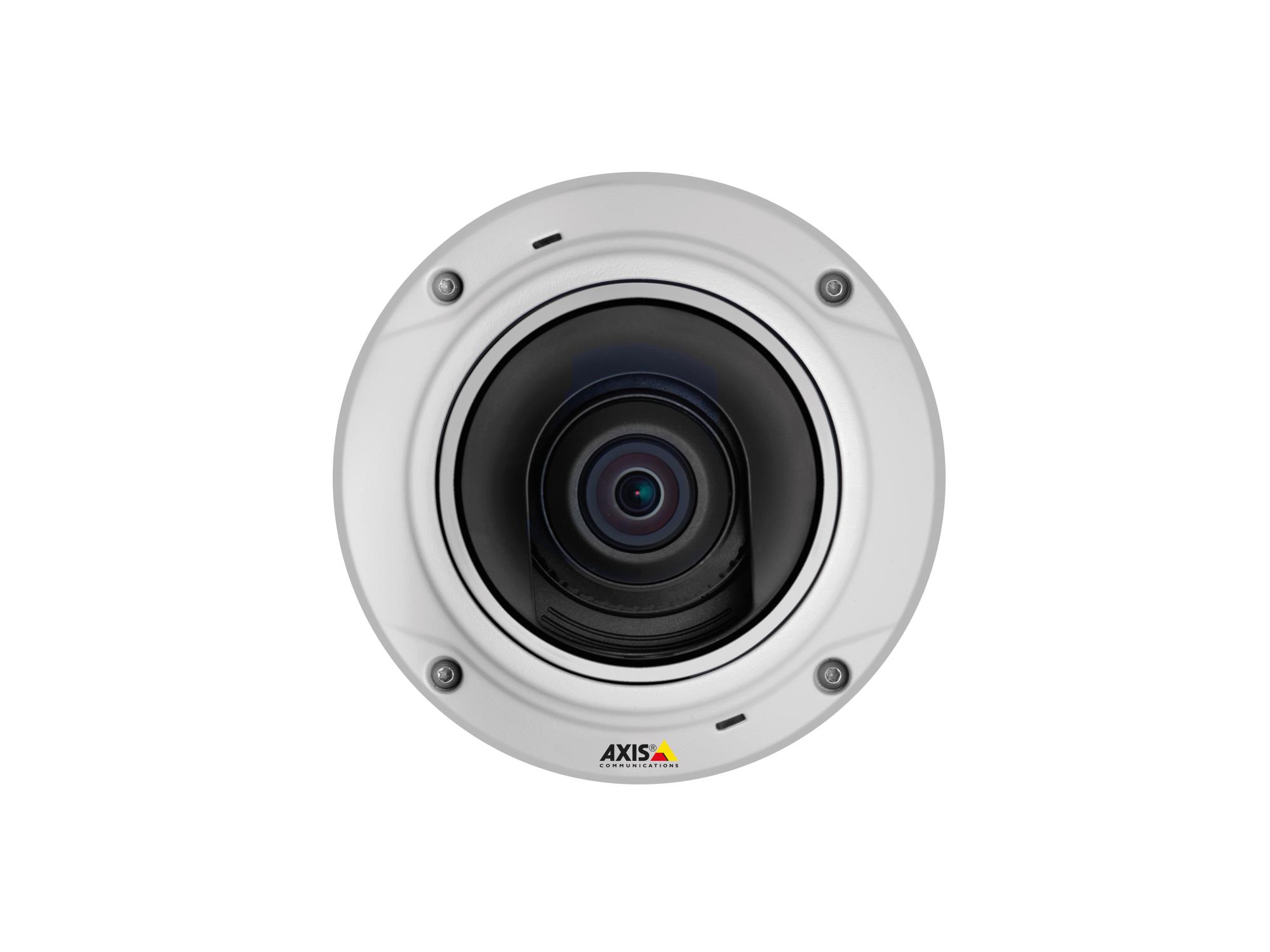

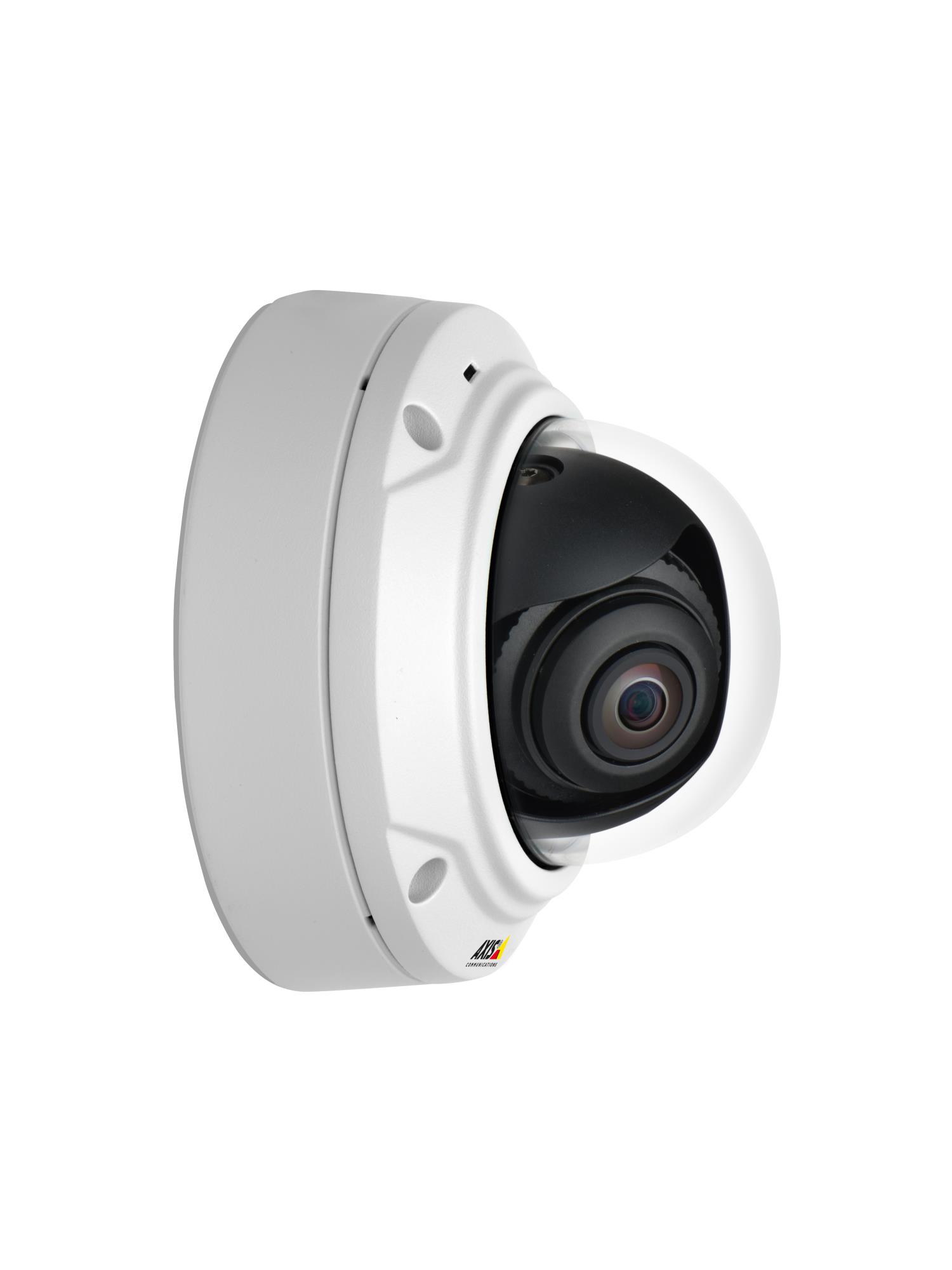

AXIS M3026-VE Network Camera, which is part of the AXIS M30 Series, is an affordably priced, light-sensitive 3-megapixel/HDTV 1080p fixed dome that provides detailed wide-angle views day and night. The camera is ideal for installation indoors or outdoors at hotels, gas stations, boutiques, restaurants, offices and schools.
The mini dome is outdoor-ready and vandal-resistant, with IP66, NEMA 4X and IK10 ratings. It has day/night functionality with an automatically removable infrared-cut filter. When the filter is removed, the camera takes advantage of invisible near-infrared light from available light sources to produce good quality black and white video.
Multi-view streaming and intelligent video
AXIS M3026-VE offers multi-view streaming, which enables different areas in the camera’s field of view to be cropped from the full view and streamed simultaneously for viewing or recording. Multi-view streaming can help reduce bandwidth and storage use while enabling a large area to be covered with just one camera.
The fixed dome has enhanced capacity for intelligent video applications that are based on the AXIS Camera Application Platform. It also has input/output ports for connection to external devices for alarm management.
The camera offers a convenient video management solution with its built-in memory card slot for edge storage and support for software such as the complimentary AXIS Camera Companion.
Easy to install
AXIS M3026-VE can be mounted on walls, ceilings or pendants. It has a 3-axis camera angle adjustment for flexible installation and comes focused at delivery. The camera also supports Axis’ Corridor Format for vertically oriented video streams that maximize coverage of areas such as along walls or aisles.
The camera comes with a 2 m (6.6 ft.) network cable and is powered using Power over Ethernet (IEEE 802.3af).
| Vendor | AXIS |
|---|---|
| RJ45 | 1 |
| Terminal block | 1 |
| Network Camera Type | Fixed Dome/HDTV/Megapixel/Outdoor |
| Focal Length | 2mm |
| Sensor size | 1/3.6" (effective) progressive scan RGB CMOS |
| Lens Mount | M12 |
| Min. Illumination | 0.3 Lux |
| Electronic Shutter Speed | 1/30500 s to 2 s |
| Included Accessories | Installation Guide, Installation and Management Software CD, |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0039 cubm |
| Product Net Weight | 0.74 kg |
| Unit Calculated Weight | 1.06 kg |
| Summary | Axis M3026-VE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.06 lx, Angle of rotation: 180°, Lens viewing angle, horizontal: 106°. Sensor type: CMOS, Optical sensor size: 25.4 / 3.6 mm (1 / 3.6"). Lens diameter: 2 mm |
| Alarm input/output | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Placement supported | Indoor & outdoor |
| PTZ control | Yes |
| Type | IP security camera |
| Form factor | Dome |
| Housing material | Aluminium |
| LED indicators | Yes |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Angle of rotation | 180 ° |
| Camera shutter speed | 1/30500 – 2 s |
| Lens viewing angle, horizontal | 106 ° |
| Minimum illumination | 0.06 lx |
| Pan range | 175 – 175 ° |
| Tilt angle range | 0 – 70 ° |
| Optical sensor size | 1/3.6 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Lens diameter | 2 mm |
| Maximum aperture number | 2 |
| Night vision | Yes |
| Frame rate | 30 fps |
| Image quality adjustment | Brightness/Colour depth/Contrast/Saturation/Sharpness |
| Maximum resolution | 2048 x 1536 pixels |
| Supported graphics resolutions | 160 x 120/2048 x 1536 (QXGA) |
| Supported video modes | 1080p |
| Total megapixels | 3 MP |
| Video compression formats | H.264/MPEG4 |
| Video formats supported | H.264/M-JPEG |
| Video streaming | Yes |
| Cabling technology | 10/100Base-T(X) |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
| Wi-Fi | No |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC/MicroSDXC |
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | RJ-45 |
| Active tampering alarm | Yes |
| Alert notification type | |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Video motion detection | Yes |
| Power over Ethernet (PoE) | Yes |
| Power source type | PoE |
| Operating relative humidity (H-H) | 10 – 100 % |
| Operating temperature (T-T) | -30 – 50 °C |
| Windows operating systems supported | Yes |
| Depth | 132 mm |
| Diameter | 132 mm |
| Height | 93 mm |
| Weight | 740 g |
| Width | 132 mm |
| Manual | Yes |
| Harmonized System (HS) code | 85258900 |
| Manufacturer Code | 0547-001 |
| ELKO Code | 1164281 |
| Warranty | 60 |
