Axis 02484-001. Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.17 lx, Lens viewing angle, horizontal: 112°, Lens viewing angle, vertical: 82°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″). Focal length range: 2.8 – 13 mm
Laost otsas
Laost otsas

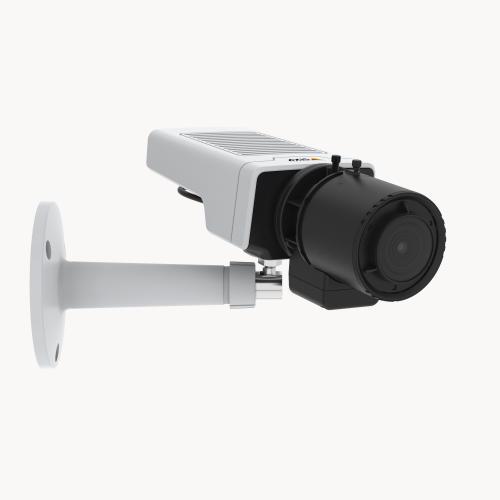

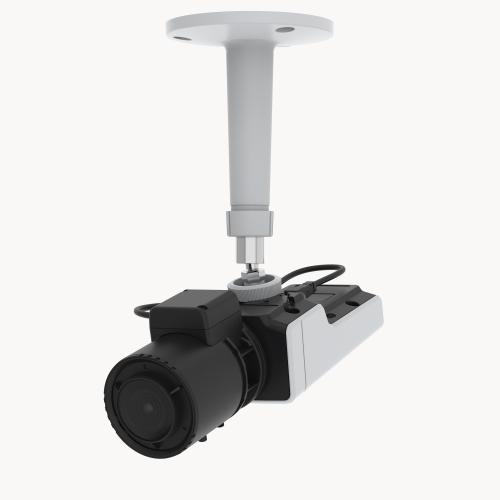

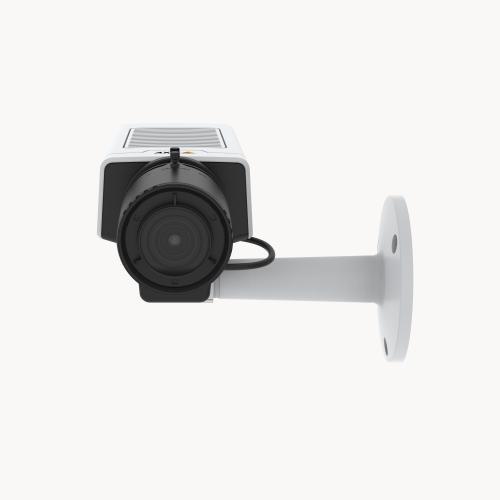

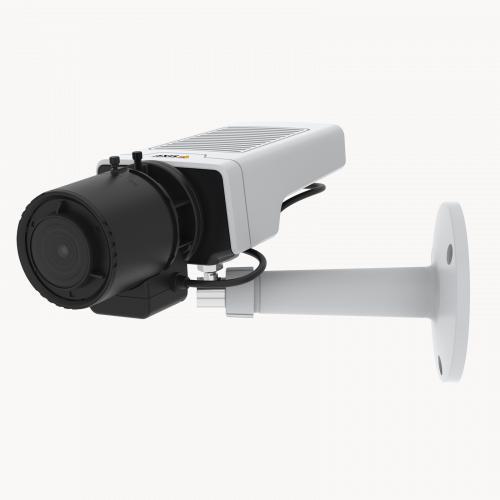

AXIS M1137 Mk II is an affordable, compact box camera that’s easy to install and operate. It supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. The camera’s CS-mount enables flexibility for exchangeable lenses. And a built-in microphone allows you to record video with sound. With AXIS Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.
| Vendor | AXIS |
|---|---|
| Mic/Line In | 1 |
| RJ45 | 1 |
| Terminal block | 1 |
| Model | M1137 Mk II |
| Camera design | Box |
| Resolution | 5 Mega Pixel |
| Sensor size | Progressive scan RGB CMOS 1/2.7" |
| Microphone | Built-in |
| Electronic Shutter Speed | 1/33500 to 1/5 s |
| Power options | PoE |
| Power supply requirements | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 |
| Power consumption | 4.5 Watts |
| Operating temperature range | -20 °C to 50 °C |
| Included Accessories | AXIS T91A11 Stand White, installation guide, Windows® |
| Dimensions | 64 x 70 x 179 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.0024 cubm |
| Product Net Weight | 0.165 kg |
| Unit Calculated Weight | 0.5 kg |
| Summary | Axis 02484-001. Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.17 lx, Lens viewing angle, horizontal: 112°, Lens viewing angle, vertical: 82°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.8 – 13 mm |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Box |
| Mounting type | Wall |
| Product colour | Black/White |
| Camera shutter speed | 1/33500 – 1/5 s |
| Lens viewing angle, horizontal | 112 ° |
| Lens viewing angle, vertical | 82 ° |
| Minimum illumination | 0.17 lx |
| Optical sensor size | 1/2.7 " |
| Sensor type | CMOS |
| Focal length range | 2.8 – 13 mm |
| Night vision | Yes |
| Frame rate | 30 fps |
| Maximum resolution | 2592 x 1944 pixels |
| Supported graphics resolutions | 160 x 120 |
| Total megapixels | 5 MP |
| Video compression formats | MPEG4 |
| Video formats supported | H.264/H.265 |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Flash memory | 512 MB |
| DC output voltage | 10,12,15,16,24,28 |
| Power consumption (max) | 6.6 W |
| Power consumption (Power over Ethernet (PoE)) | 4.5 W |
| Power consumption (typical) | 4.4 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 10 – 85 % |
| Operating temperature (T-T) | -20 – 50 °C |
| Storage relative humidity (H-H) | 5 – 95 % |
| Storage temperature (T-T) | -40 – 65 °C |
| Depth | 179 mm |
| Depth (with stand) | 179 mm |
| Height | 59 mm |
| Height (with stand) | 179 mm |
| Width | 70 mm |
| Width (with stand) | 70 mm |
| Number of cameras | 1 |
| Harmonized System (HS) code | 85258900 |
| Manufacturer Code | 02484-001 |
| ELKO Code | 1400078 |
| Warranty | 60 |
