Axis 02483-001. Placement supported: Indoor & outdoor, Connectivity technology: Wired, PTZ modes: Digital PTZ. Mounting type: Wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.1 lx, Camera shutter speed: 1/33500 – 2 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9″). Focal length range: 3 – 10.5 mm
Laost otsas
Laost otsas

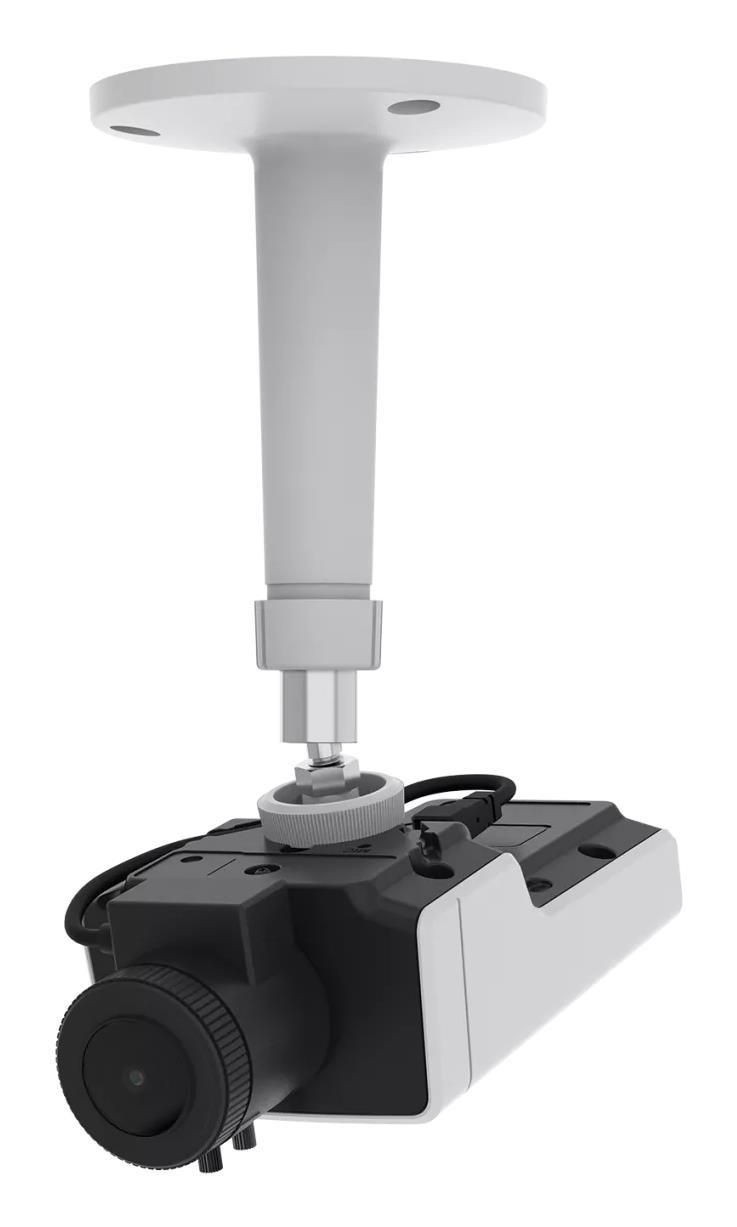

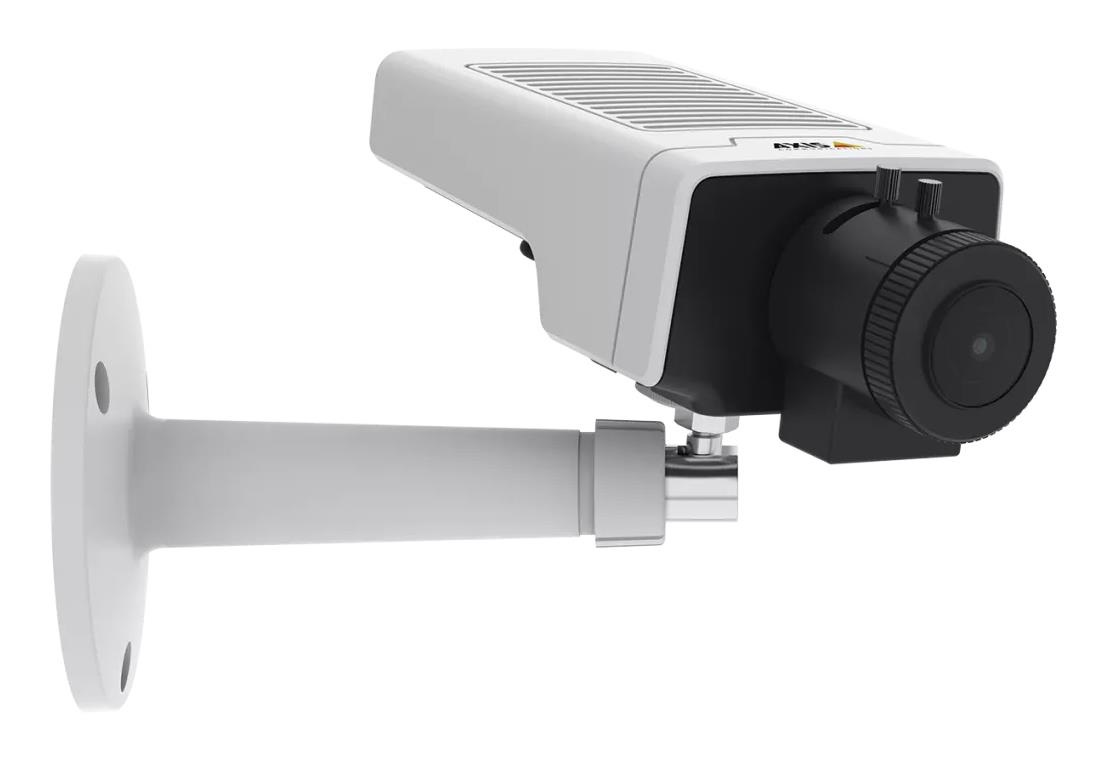

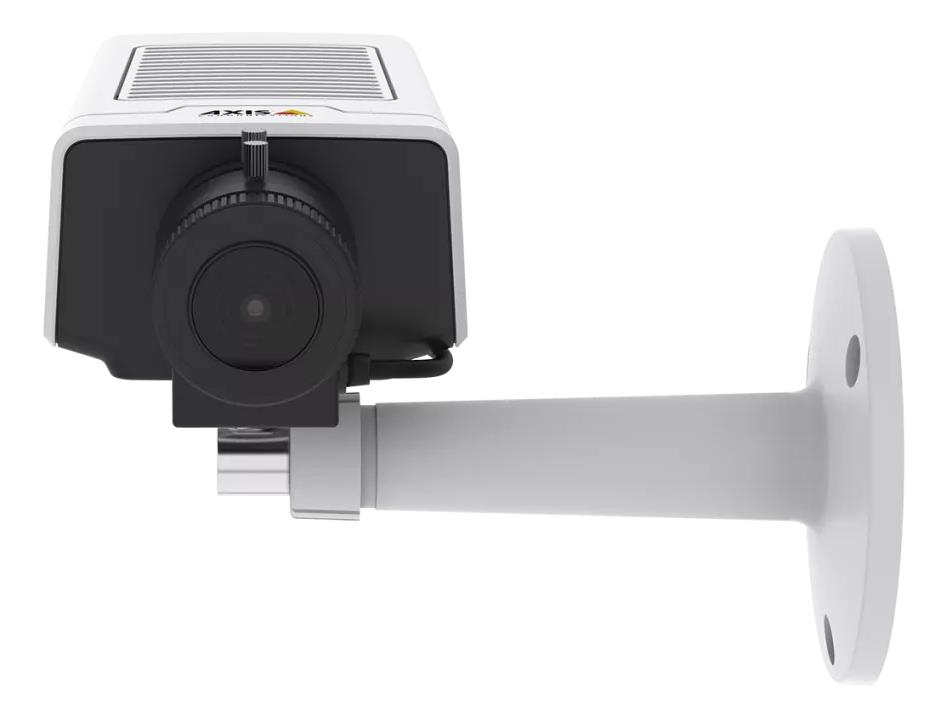

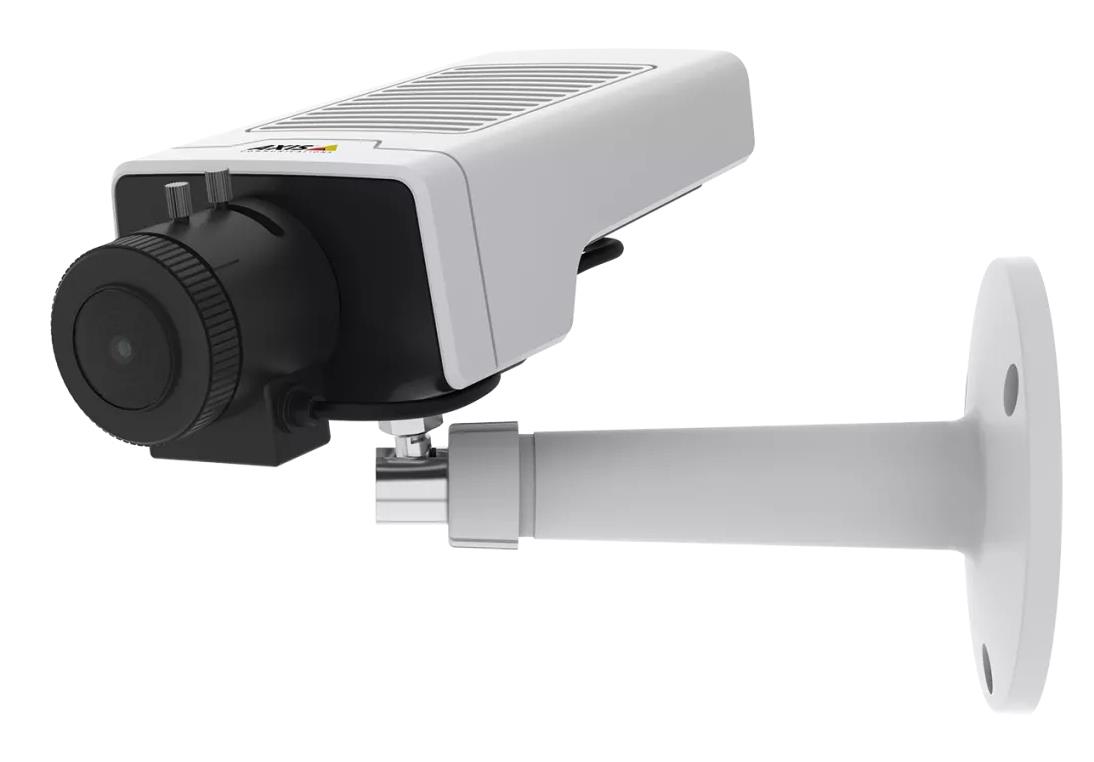

AXIS M1135 Mk II is an affordable, compact box camera that’s easy to install and operate. It supports PoE and redundant DC power to ensure your data is safeguarded in the event of a power outage. Featuring Axis Lightfinder and Axis Forensic WDR, it delivers true colors and great details in challenging light or near darkness. The camera’s CS-mount enables flexibility for exchangeable lenses. And a built-in microphone allows you to record video with sound. With AXIS Object Analytics preinstalled, it’s possible to detect and classify humans and vehicles. Furthermore, Axis Zipstream with H.264/H.265 significantly lowers bandwidth and storage requirements.
| Vendor | AXIS |
|---|---|
| Mic/Line In | 1 |
| RJ45 | 1 |
| Terminal block | 1 |
| Model | 02483-001 |
| Camera design | Box |
| Network Camera Type | Outdoor |
| Resolution | 2 Mega Pixel |
| Focal Length | 3–10.5 mm |
| Sensor size | Progressive scan RGB CMOS 1/2.9" |
| Min. Illumination | 0.02 Lux |
| Electronic Shutter Speed | 1/33500 to 2 s |
| Power options | PoE |
| Power supply requirements | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3; 10-28 V DC |
| Environment | Outdoor |
| Operating temperature range | -20 °C to 50 °C |
| Included Accessories | AXIS T91A11 Stand White, installation guide, Windows® |
| Dimensions | 47 x 70 x 147 мм |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002569 cubm |
| Product Net Weight | 0.25 kg |
| Unit Calculated Weight | 1 kg |
| Summary | Axis 02483-001. Placement supported: Indoor & outdoor, Connectivity technology: Wired, PTZ modes: Digital PTZ. Mounting type: Wall, Product colour: Black, White, Form factor: Box. Minimum illumination: 0.1 lx, Camera shutter speed: 1/33500 – 2 s. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Focal length range: 3 – 10.5 mm |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Placement supported | Indoor & outdoor |
| PTZ modes | Digital PTZ |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Box |
| Mounting type | Wall |
| Product colour | Black/White |
| Camera shutter speed | 1/33500 – 2 s |
| Minimum illumination | 0.1 lx |
| Optical sensor size | 1/2.9 " |
| Sensor type | CMOS |
| Focal length range | 3 – 10.5 mm |
| Night vision | Yes |
| Frame rate | 30 fps |
| Maximum resolution | 1920 x 1080 pixels |
| Audio system | 2-way |
| Networking standards | IEEE 802.1x/IEEE 802.3af/IEEE 802.3at |
| Flash memory | 512 MB |
| Active tampering alarm | Yes |
| DC output voltage | 10,12,15,16,24,28 |
| Power consumption (max) | 6.6 W |
| Power consumption (Power over Ethernet (PoE)) | 4.5 W |
| Power consumption (typical) | 4.4 W |
| Power over Ethernet (PoE) | Yes |
| Power source type | DC,PoE |
| Operating temperature (T-T) | -20 – 50 °C |
| Number of cameras | 1 |
| Night mode | Yes |
| Harmonized System (HS) code | 85258900 |
| Manufacturer Code | 02483-001 |
| ELKO Code | 1373881 |
| Warranty | 60 |
