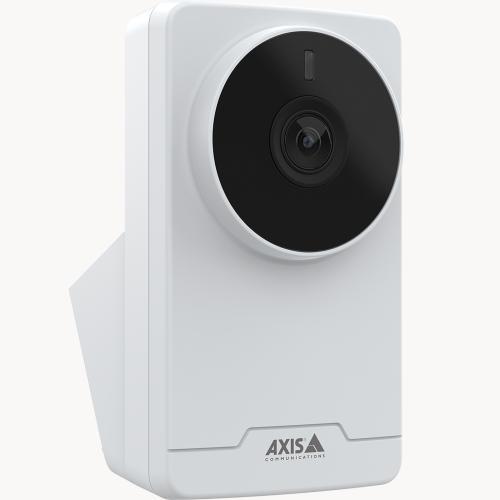

Axis 02349-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Box. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 103°, Lens viewing angle, vertical: 55°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9″). Fixed focal length: 3.16 mm
Laost otsas
Laost otsas
Offering an IR-corrected lens, this compact, easy-to-install camera delivers professional-quality video both day-and-night. It features a tally LED to indicate video streaming or recording. And AXIS Live Privacy Shield makes it easy to remotely monitor activities while protecting privacy. A deep learning processing unit enables advanced features and powerful analytics based on deep learning on the edge. Additionally, built-in cybersecurity features prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis products on your network
| Vendor | AXIS |
|---|---|
| RJ45 | 1 |
| Model | M1055-L |
| Camera design | Box |
| Focal Length | 3.16 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.9" |
| Lens Mount | M12 |
| Min. Illumination | 0.18 Lux |
| Electronic Shutter Speed | 1/19000 s to 1/5 s |
| Power options | PoE |
| Power consumption | 4.3 Watts |
| Operating temperature range | 0-35 °C |
| Colour | White |
| Dimensions | 105 x 60 x 93 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00117 cubm |
| Product Net Weight | 0.137 kg |
| Unit Calculated Weight | 0.21 kg |
| Summary | Axis 02349-001. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Box. Minimum illumination: 0.03 lx, Lens viewing angle, horizontal: 103°, Lens viewing angle, vertical: 55°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.9 mm (1 / 2.9"). Fixed focal length: 3.16 mm |
| Certification | EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Languages support | English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish/Traditional Chinese |
| Number of languages | 12 |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Box |
| Housing material | Aluminium/Plastic |
| LED indicators | Yes |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Camera shutter speed | 1/19000 s |
| Lens viewing angle, horizontal | 103 ° |
| Lens viewing angle, vertical | 55 ° |
| Minimum illumination | 0.03 lx |
| Number of sensors | 1 |
| Optical sensor size | 1/2.9 " |
| Sensor type | CMOS |
| Fixed focal length | 3.16 mm |
| Number of lenses | 1 |
| Night vision | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Image quality adjustment | Brightness/Colour depth/Contrast/Saturation/Sharpness |
| Maximum resolution | 1920 x 1080 pixels |
| Privacy masking | Yes |
| Supported graphics resolutions | 1280 x 960/1920 x 1080 (HD 1080)/320 x 240/640 x 360 |
| Supported video modes | 1080p |
| Text caption overlay | Yes |
| Video compression formats | AVC/H.264/H.265/HEVC/M-JPEG |
| Video intelligence analytic | Yes |
| Video streaming | Yes |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x |
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, SSH, LLDP, MQ |
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash)/MicroSDHC |
| Flash memory | 512 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| IP address filtering | Yes |
| Security algorithms | EAP-TLS/HTTPS/SNMP |
| DC output current | 2.5 A |
| DC output voltage | 12 |
| Power consumption (max) | 4.3 W |
| Power consumption (Power over Ethernet (PoE)) | 4.3 W |
| Power consumption (typical) | 2.2 W |
| Power source type | PoE |
| Operating relative humidity (H-H) | 10 – 85 % |
| Operating temperature (T-T) | 0 – 35 °C |
| Storage relative humidity (H-H) | 5 – 95 % |
| Storage temperature (T-T) | -40 – 65 °C |
| Depth | 93 mm |
| Height | 105 mm |
| Weight | 137 g |
| Width | 60 mm |
| Number of cameras | 1 |
| Manufacturer Code | 02349-001 |
| ELKO Code | 1392055 |
| Warranty | 60 |
