TP-Link VIGI C340. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 50°, Lens viewing angle, vertical: 27°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3″). Detect distance: 128 m, Observe distance: 53 m, Recognize distance: 16 m
7 laos
7 laos
All The Colors,
All The Time

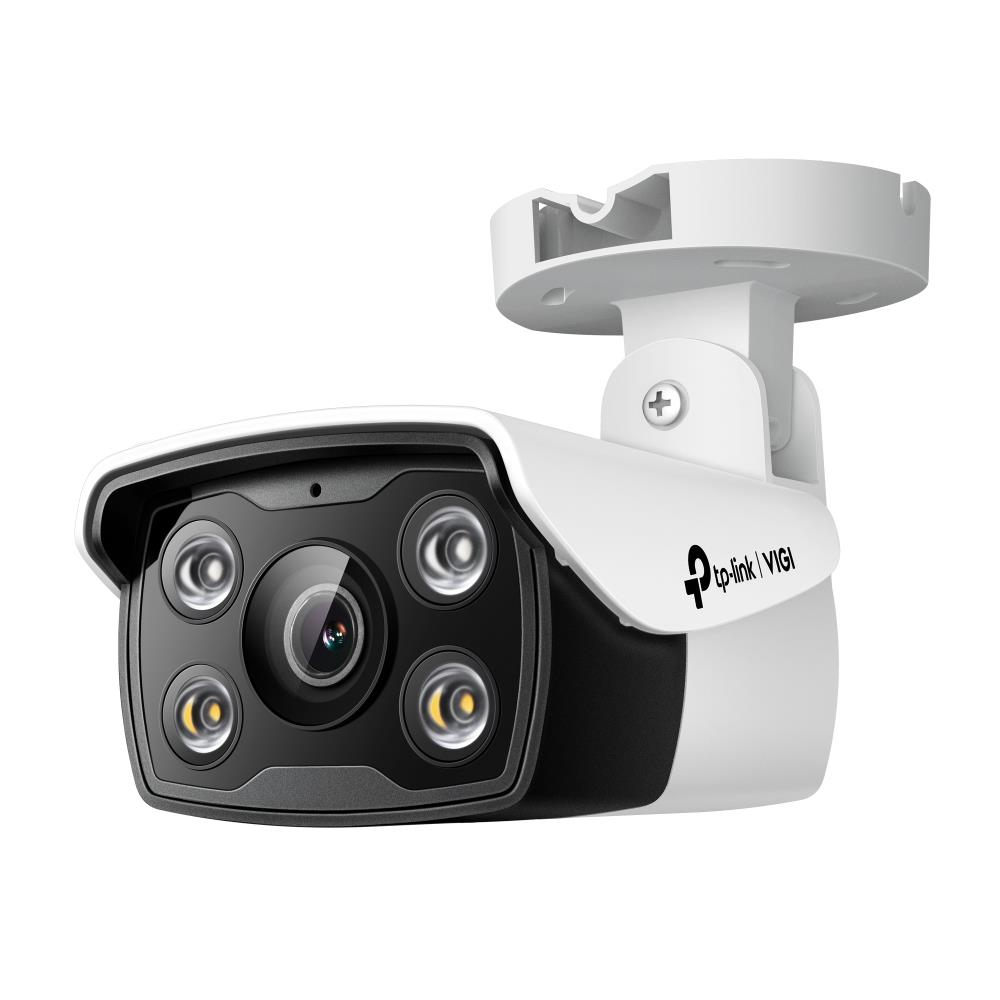

4MP Outdoor Full-Color Bullet Camera
Outdoor PoE Connection, Simple Wiring
Just connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.
Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI’s Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, or obstructs the camera.
Motion Detection
Get instant notifications when your camera detects motion.
Area Intrusion
Set customized activity zones around key areas for more focused monitoring.
Line-Crossing
Set a boundary and receive an alert anytime a person crosses it from either or both directions.
Camera Tampering
Receive alerts when someone obstructs the camera.
Active Defense
Warn potential intruders instantly with sound and light when abnormal events
Every Event is Under Your Control.
VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.
Never miss a detail.
SmartVid-Smart Video Enhancement
Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to camera at night.
Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.
More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
Flexible Management and Storage
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with SD card slot (up to 256 GB).
Discover the best way to power your camera.
PoE/12V DC
Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
Flexible Installation
Find the perfect vantage point by simply securing your camera to ceiling, pole or wall.
One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.
| Vendor | TP-LINK |
|---|---|
| MicroSD Card Slot | 1 |
| RJ45 | 1 |
| Model | VIGI C340(6MM) |
| Camera design | Bullet |
| Network Camera Type | Outdoor |
| Resolution | 4 Mega Pixel |
| Focal Length | 6mm |
| IR Illumination | Yes |
| Sensor size | 1/3” Progressive Scan CMOS |
| Microphone | Built-in |
| Lens Mount | M12 |
| Supports card capacities up to | 256GB |
| Power options | 12V/PoE |
| Power supply requirements | 12V DC ± 5%, 5.5mm Coaxial Power Plug; PoE (802.3af/at, class 0) |
| Power consumption | 7.5 Watts |
| Environment | Outdoor |
| Operating temperature range | -30–60 °C |
| Included Accessories | Quick Start Guide; |
| Colour | White |
| Dimensions | 78 × 70 × 174 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00273 cubm |
| Product Net Weight | 0.195 kg |
| Unit Calculated Weight | 0.459 kg |
| Summary | TP-Link VIGI C340. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/Wall/Pole, Product colour: Black, White, Form factor: Bullet. Minimum illumination: 0.005 lx, Lens viewing angle, horizontal: 50°, Lens viewing angle, vertical: 27°. Sensor type: CMOS, Optical sensor size: 25.4 / 3 mm (1 / 3"). Detect distance: 128 m, Observe distance: 53 m, Recognize distance: 16 m |
| Built-in light | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Placement supported | Outdoor |
| Type | IP security camera |
| Form factor | Bullet |
| Housing material | Plastic |
| International Protection (IP) code | IP66 |
| LED indicators | Yes |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | Black/White |
| Camera shutter speed | 1/3 – 1/10000 s |
| Lens viewing angle, diagonal | 59 ° |
| Lens viewing angle, horizontal | 50 ° |
| Lens viewing angle, vertical | 27 ° |
| Minimum illumination | 0.005 lx |
| Number of Privacy masking areas | 4 |
| Pan range | -90 – 90 ° |
| Tilt angle range | -90 – 90 ° |
| Number of sensors | 1 |
| Optical sensor size | 1/3 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Detect distance | 128 m |
| Fixed focal length | 6 mm |
| Identify distance | 13 m |
| Maximum aperture number | 1.6 |
| Number of lenses | 1 |
| Observe distance | 53 m |
| Recognize distance | 16 m |
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 30 m |
| Number of illumination LEDs | 2 |
| 3D positioning | Yes |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 256 Kbps – 4 Mbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Frame rate | 30 fps |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness/Contrast/Mirror/Saturation |
| Maximum resolution | 2560 x 1440 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1280/2304 x 1296/2560 x 1440 |
| Total megapixels | 4 MP |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
| Video streaming | Yes |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio system | 2-way |
| Bit rate range | 0 – 64 Kbit/s |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Sample rate | 8 kHz |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Live view | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Number of simultaneous live view channels | 3 channels |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| DC-in jack | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Digest authentication | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Network access storage (NAS) | Yes |
| Password protection | Yes |
| Video motion detection | Yes |
| Behavior analysis | Intrusion detection,Line crossing detection |
| Reset button | Yes |
| Web browser | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 7 W |
| Power consumption (typical) | 3.4 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 0 – 95 % |
| Operating temperature (T-T) | -30 – 60 °C |
| Storage relative humidity (H-H) | 0 – 95 % |
| Storage temperature (T-T) | -40 – 60 °C |
| Height | 70 mm |
| Length | 78 mm |
| Weight | 280 g |
| Width | 174 mm |
| Compliance certificates | BSMI/CE/KC |
| Package type | Box |
| Package weight | 420 g |
| Sustainability compliance | Yes |
| Manual | Yes |
| Mounting kit | Yes |
| Number of cameras | 1 |
| Manufacturer Code | VIGIC340(6MM) |
| ELKO Code | 1388885 |
| Warranty | 36 |
