IPC-HDW5842T-ZE

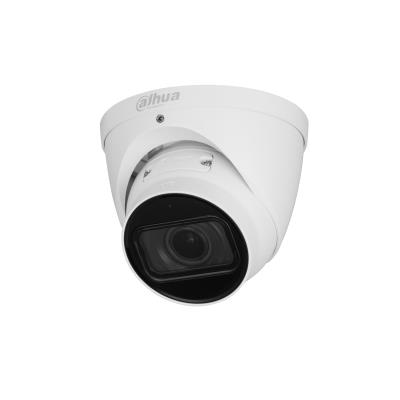

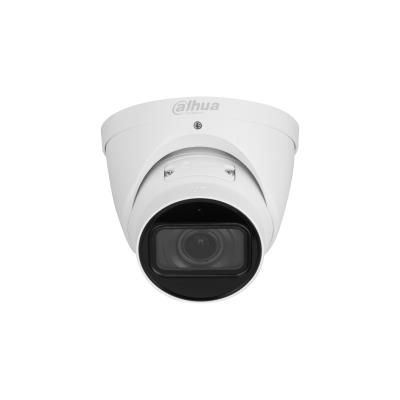

8MP IR Vari-focal Eyeball WizMind Network Camera
> 8-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8MP (3840×2160) @25/30 fps.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> With deep learning algorithm, it supports: video metadata, IVS, face detection, smart object detection, and people counting, etc.
> Supports max. 512 GB Micro SD card, built-in MIC.
> 12 VDC/PoE power supply; ePoE.
> IP67 protection.
> SMD 3.0.
| Kaal | 0,7 kg |
|---|---|
| Vendor | DAHUA |
| MicroSD Card Slot | 1 |
| RJ45 | 1 |
| Model | IPC-HDW5842T-ZE-2712-S3 |
| Camera design | Eyeball |
| Network Camera Type | Fixed/HDTV/Megapixel |
| Resolution | 8 Mega Pixel |
| Focal Length | 2.7 mm–12 mm |
| IR Illumination | Yes |
| Sensor size | 1/1.8" CMOS |
| Microphone | Built-in |
| Min. Illumination | 0.0004 Lux |
| Effective pixels | 3840 (H) × 2160 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Supports card capacities up to | 512GB |
| Power supply requirements | 12 VDC/PoE (802.3af)/ePoE |
| Environment | Outdoor |
| Operating temperature range | –30 °C to +60 °C |
| Colour | White |
| Dimensions | 108.3 mm × Φ122 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003243 cubm |
| Product Net Weight | 0.7 kg |
| Unit Calculated Weight | 0.93 kg |
| Form factor | Eyeball |
| Product colour | White |
| Camera shutter speed | 1/3 s–1/100,000 s s |
| Camera shutter type | Electronic/Mechanical |
| Effective sensor resolution | 8 pixels |
| Optical sensor size | 1/1.8" " |
| Sensor type | CMOS |
| B/W night vision distance | 40 m |
| Night vision | Yes |
| Built-in microphone | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| DC output voltage | 12 |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | –30 °C to +60 °C °C |
| Adjustment shutter speed | Auto/Manual |
| CnCode | 85258900 |
| Manufacturer Code | DH-IPC-HDW5842T-ZE-2712-S3 |
| ELKO Code | 1425577 |
| Warranty | 36 |
