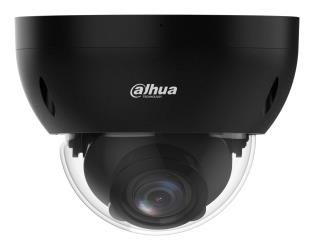

Dahua Technology WizSense IPC-HDBW2841R-ZAS-27135-B. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Dome. Angle of rotation: 355°, Lens viewing angle, horizontal: 113 – 31°, Lens viewing angle, vertical: 58 – 18°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″). Focal length range: 2.7 – 13.5 mm, Detect distance (wide): 85.3 m, Detect distance (tele): 280 m
2 laos
2 laos
Launched by Dahua Technology, WizSense is a series of wide range AI products and solutions that adopt independent AI chip and deep learning algorithm. It can recognize human and vehicle in an image with high accuracy, enabling users to focus on real targets. WizSense focuses on human and vehicle, benefiting everyone with intelligent functions, simple configuration and inclusive products.
Intelligent: Powered by AI chip and deep learning algorithm, WizSense provides various features that realizes accurate alarms for human and vehicle, and quick target search, maximizing resources to increase overall efficiency.
Simple: WizSense offers simple configuration, especially for SMD and AI Coding enabled by default. It eases your customer’s daily job and also empowers them to make better business decisions.
Inclusive: Inclusivity of WizSense is the idea that everyone gets the opportunities and benefits from AI. With affordable prices and easy configuration of Dahua WizSense, AI is no longer confined to an ivory tower, but applied to real scenarios instead.
| Kaal | 0,51 kg |
|---|---|
| Vendor | DAHUA |
| Alarm In | 1 |
| Alarm Out | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| RJ45 | 1 |
| Model | IPC-HDBW2841R-ZAS-27135-B |
| Camera design | Dome |
| Network Camera Type | Fixed Dome/HDTV/Megapixel/Outdoor |
| Resolution | 8 Mega Pixel |
| Focal Length | 2.7 mm–13.5 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.7" |
| Microphone | Built-in |
| Lens Mount | M14 |
| Min. Illumination | 0.0008 Lux |
| Effective pixels | 3840 (H) × 2160 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Supports card capacities up to | 256GB |
| Power options | 12V/PoE |
| Power supply requirements | 12 VDC/PoE (802.3af) |
| Power consumption | 3.4 Watts |
| Environment | Outdoor |
| Operating temperature range | –30 °C to +60 °C |
| Colour | Black |
| Dimensions | 93.4 mm × Φ122 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003327 cubm |
| Product Net Weight | 0.51 kg |
| Unit Calculated Weight | 0.7 kg |
| Summary | Dahua Technology WizSense IPC-HDBW2841R-ZAS-27135-B. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, Form factor: Dome. Angle of rotation: 355°, Lens viewing angle, horizontal: 113 – 31°, Lens viewing angle, vertical: 58 – 18°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.7 – 13.5 mm, Detect distance (wide): 85.3 m, Detect distance (tele): 280 m |
| Alarm input/output | Yes |
| Certification | CE-LVD: EN62368-1; |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Placement supported | Indoor & outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Dome |
| Housing material | Metal |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/wall |
| Product colour | Black |
| Protection features | Waterproof |
| Adjustment shutter speed | Auto/Manual |
| Angle of rotation | 355 ° |
| Camera shutter speed | 1/3 – 1/100000 s |
| Camera shutter type | Electronic |
| Lens viewing angle, diagonal | 138 – 36 ° |
| Lens viewing angle, horizontal | 113 – 31 ° |
| Lens viewing angle, vertical | 58 – 18 ° |
| Number of Privacy masking areas | 4 |
| Pan range | 0 – 355 ° |
| Tilt angle range | 0 – 75 ° |
| White balance | Auto/Manual/Natural/Outdoor/Street lamp |
| Number of sensors | 1 |
| Optical sensor size | 1/2.7 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 0.8 m |
| Detect distance (tele) | 280 m |
| Detect distance (wide) | 85.3 m |
| Focal length range | 2.7 – 13.5 mm |
| Identify distance (tele) | 28 m |
| Identify distance (wide) | 8.5 m |
| Maximum aperture number | 1.5 |
| Number of lenses | 1 |
| Observe distance (tele) | 112 m |
| Observe distance (wide) | 34.1 m |
| Recognize distance (tele) | 56 m |
| Recognize distance (wide) | 17.1 m |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 40 m |
| Number of illumination LEDs | 2 |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 12 Kbps – 8192 Kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Gain control type | Auto/Manual |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2688 x 1512/2880 x 1620/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576 |
| Total megapixels | 8 MP |
| Video compression formats | H.264/H.264+/H.264B/H.265/H.265+ |
| Video streaming | Yes |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Voice codecs | G.711a/G.711Mu/G.726/PCM |
| Bluetooth | No |
| Client interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3af |
| Number of users | 20 user(s) |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| RAM capacity | 256 MB |
| ROM capacity | 128 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Intelligent Video Surveillance (IVS) system features | Intrusion/Tripwire |
| Mirror | Yes |
| Network access storage (NAS) | Yes |
| Privacy protection | Yes |
| Video motion detection | Yes |
| Management software | Smart PSS, DSS, DMSS |
| Web browser | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 6.4 W |
| Power consumption (Power over Ethernet (PoE)) | 7.3 W |
| Power consumption (typical) | 2.7 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 0 – 95 % |
| Operating temperature (T-T) | -30 – 60 °C |
| Storage relative humidity (H-H) | 0 – 95 % |
| Storage temperature (T-T) | -40 – 60 °C |
| Mobile operating systems supported | Android/iOS |
| Diameter | 122 mm |
| Height | 93.4 mm |
| Weight | 510 g |
| Package weight | 670 g |
| Number of cameras | 1 |
| Browser supported | IE: IE8, IE9, IE11 Chrome Firefox, Safari |
| Number of video streams | 2 |
| Manufacturer Code | IPC-HDBW2841R-ZAS-27135-B |
| ELKO Code | 1407421 |
| Warranty | 36 |
