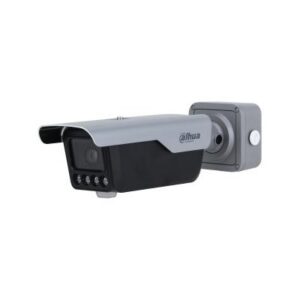

Dahua Technology IPC-HFW5842E-Z4E. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 42 – 15°, Lens viewing angle, vertical: 23 – 9°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8″). Focal length range: 8 – 32 mm, Focus: Motorized, Detect distance (wide): 213.6 m
Laost otsas
Laost otsas
Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts
industry-leading deep learning algorithms. Focusing on customer’s requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
Driven by deep learning algorithms, Dahua WizMind S Series network camera offers a variety of intelligent functions that greatly improve the accuracy of audio and video analysis. It supports video metadata, smart sound detection, face detection, perimeter protection, people counting and more. The camera also adopts advanced image processing AI-Powered Image technology and has the Deeplight night vision effect. The camera is dustproof, waterproof and vandal-proof, and is certified as IP67 and IK10 (the type of protection varies depending on the model).
| Vendor | DAHUA |
|---|---|
| Alarm In | 2 |
| Alarm Out | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| MicroSD Card Slot | 1 |
| RJ45 | 1 |
| Model | IPC-HFW5842E-ZE-0832-S3 |
| Camera design | Bullet |
| Network Camera Type | Outdoor |
| Resolution | 8 Mega Pixel |
| Focal Length | 8 mm–3 2 mm |
| IR Illumination | Yes |
| Sensor size | 1/1.8” CMOS |
| Microphone | Built-in |
| Electronic Shutter Speed | 8 mm–3 2 mm |
| Supports card capacities up to | 512GB |
| Power options | 12V/PoE |
| Power supply requirements | ePoE / PoE / 12VDC |
| Power consumption | 10.2 Watts |
| Environment | Outdoor |
| Operating temperature range | –30 °C to +60 °C |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.007665 cubm |
| Product Net Weight | 1.13 kg |
| Unit Calculated Weight | 1.6 kg |
| Summary | Dahua Technology IPC-HFW5842E-Z4E. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Wall, Product colour: Black, White, Form factor: Bullet. Angle of rotation: 360°, Lens viewing angle, horizontal: 42 – 15°, Lens viewing angle, vertical: 23 – 9°. Sensor type: CMOS, Optical sensor size: 25.4 / 1.8 mm (1 / 1.8"). Focal length range: 8 – 32 mm, Focus: Motorized, Detect distance (wide): 213.6 m |
| Alarm input/output | Yes |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| People counting function | Yes |
| Placement supported | Outdoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Fog proof | Yes |
| Form factor | Bullet |
| Housing material | Metal/Plastic |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Mounting type | Wall |
| Product colour | Black/White |
| Protection features | Water resistant |
| Angle of rotation | 360 ° |
| Lens viewing angle, diagonal | 48 – 17 ° |
| Lens viewing angle, horizontal | 42 – 15 ° |
| Lens viewing angle, vertical | 23 – 9 ° |
| Number of Privacy masking areas | 8 |
| Pan range | 0 – 360 ° |
| Tilt angle range | 0 – 90 ° |
| White balance | Auto/Manual/Natural/Outdoor/Regional custom/Street lamp |
| Number of sensors | 1 |
| Optical sensor size | 1/1.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Auto focus | Yes |
| Closest focusing distance | 1.5 m |
| Detect distance (tele) | 572.8 m |
| Detect distance (wide) | 213.6 m |
| Focal length range | 8 – 32 mm |
| Focus | Motorized |
| Identify distance (tele) | 57.3 m |
| Identify distance (wide) | 21.4 m |
| Maximum aperture number | 1.6 |
| Number of lenses | 1 |
| Observe distance (tele) | 229.1 m |
| Observe distance (wide) | 85.4 m |
| Recognize distance (tele) | 114.6 m |
| Recognize distance (wide) | 42.7 m |
| LED type | IR/White |
| Night vision | Yes |
| Night vision distance | 120 m |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 32 Kbps – 16 Mbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Gain control type | Auto |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2048 x 1536 (QXGA)/2304 x 1296/2560 x 1440/2592 x 1944/2688 x 1520/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576 |
| Total megapixels | 8 MP |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
| Video streaming | Yes |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Built-in microphone | Yes |
| Signal-to-Noise Ratio (SNR) | 56 dB |
| Voice codecs | G.711a/G.711Mu/G.723/G.726/PCM |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Number of users | 20 user(s) |
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
| User access level | Administrator,Operator,User |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Flash memory | 2048 MB |
| Maximum memory card size | 512 GB |
| ROM capacity | 4096 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 2 |
| Alarm output channels | 1 |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Intrusion/People counting |
| Mirror | Yes |
| Network access storage (NAS) | Yes |
| Privacy protection | Yes |
| Video motion detection | Yes |
| Management software | SmartPSS Lite; DSS; DMSS |
| Web-based management | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 10.2 W |
| Power consumption (Power over Ethernet (PoE)) | 12.8 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 10 – 95 % |
| Operating temperature (T-T) | -30 – 60 °C |
| Storage relative humidity (H-H) | 10 – 95 % |
| Storage temperature (T-T) | -40 – 60 °C |
| Height | 95 mm |
| Length | 273.2 mm |
| Weight | 1130 g |
| Width | 95 mm |
| Compliance certificates | CE/cUL/Federal Communications Commission (FCC)/UL |
| Package weight | 1680 g |
| Sustainability compliance | Yes |
| Number of cameras | 1 |
| Audio input | RCA |
| Audio output | RCA |
| Iris | Yes |
| Manufacturer Code | IPC-HFW5842E-ZE-0832-S3 |
| ELKO Code | 1402306 |
| Warranty | 36 |
