> 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 40 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection,video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 512 G Micro SD card; built-in Mic.
> 12 VDC/PoE power supply.
> IP67 protection.
> SMD 4.0.
> Supports AI SSA.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length 2.7 mm-13.5 mm. Field of View 114°–32°
| Vendor | DAHUA |
|---|---|
| RJ45 | 1 |
| Camera design | Eyeball |
| Network Camera Type | HDTV/Megapixel/Outdoor |
| Resolution | 8 Mega Pixel |
| Focal Length | 2.7 mm-13.5 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.7" |
| Microphone | Built-in |
| Lens Mount | M14 |
| Min. Illumination | 0.0007 Lux |
| Effective pixels | 3840 (H) × 2160 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Supports card capacities up to | 512GB |
| Power options | 12V/PoE |
| Power supply requirements | 12 VDC/PoE (802.3af) |
| Power consumption | 8.2 Watts |
| Environment | Outdoor |
| Operating temperature range | –30 °C to +60 °C |
| Colour | White |
| Dimensions | 108.3 mm × Φ122.0 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003584 cubm |
| Product Net Weight | 0.69 kg |
| Unit Calculated Weight | 0.92 kg |
| Form factor | Eyeball |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Adjustment shutter speed | Auto/Manual |
| Camera shutter speed | 1/3 s–1/100,000 s s |
| Optical sensor size | 1/2.7" " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Focal length range | 2.7 mm-13.5 mm mm |
| Focus | Motorized |
| Maximum aperture number | 1.4 |
| B/W night vision distance | 50 m |
| LED type | IR/White |
| 3D NR (Noise Reduction) | Yes |
| Flip & mirror | Yes |
| Image stabilizer | Yes |
| Noise reduction | Yes |
| Privacy masking | Yes |
| Smart IR | Yes |
| Total megapixels | 8 MP |
| Video recording | Yes |
| Built-in microphone | Yes |
| Ethernet LAN | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| RAM capacity | 1000 MB |
| ROM capacity | 256 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Power consumption (Power over Ethernet (PoE)) | 9.8 W |
| Power consumption (typical) | 3.7 W |
| Power source type | PoE |
| Operating temperature (T-T) | –40 °C to +60 °C °C |
| Diameter | 122 mm |
| Weight | 690 g |
| Width | 108.3 mm |

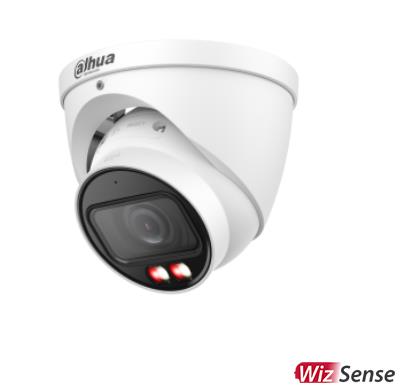

| Model | IPC-HDW3849T-ZS-IL-27135 |
| Manufacturer Code | IPC-HDW3849T-ZS-IL-27135 |
| ELKO Code | 1441448 |
| Warranty | 36 |
