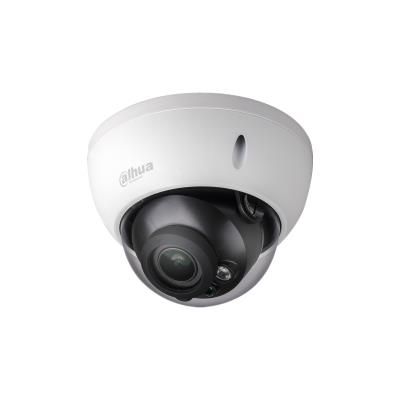

Dahua Technology Lite DH-HAC-HDBW1200R-VF. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.02 lx, Angle of rotation: 355°, Lens viewing angle, horizontal: 106°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″). Focal length range: 2.7 – 13.5 mm, Focus: Manual, Detect distance (wide): 45 m
10 laos
10 laos
Experience 1080P full HD video and the simplicity of using existing cabling infrastructure with HDCVI. The Lite series 1080P HDCVI camera features a compact design and offers a high quality image at a friendly price. It offers various vari-focal/fixed lens models with a multi-language OSD and HD/SD switchable output. Its structural flexibility and high cost-performance makes the camera an ideal choice for SMB solutions.
4 Signals over 1 Coaxial Cable
HDCVI technology supports 4 signals to be transmitted over 1 coaxial cable simultaneously, i.e. video, audio*, data and power. Dual-way data transmission allows the HDCVI camera to interact with the HCVR, such as sending control signal or triggering alarm. Moreover, HDCVI technology supports PoC for construction flexibility.
* Audio input is available for some models of HDCVI cameras.
Long Distance Transmission
HDCVI technology guarantees real-time transmission at long distance without any loss. It supports up to 800m(1080P)/1200m(720P) transmission via coaxial cable, and up to 300m(1080P)/450m(720P) via UTP cable.*
*Actual results verified by real-scene testing in Dahua’s test laboratory.
Simplicity
HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of con-figuring a network.
Smart IR
The camera is designed with array LED IR illumination for best lowlight performance. Smart IR is a technology to ensure brightness uniformity in B/W image under low illumination. Dahua’s unique Smart IR adjusts to the intensity of camera’s infrared LEDs to compensate for the distance of an object, and prevents IR LEDs from overexposing images as the object come closer to the camera.
Multi-formats
The camera supports multiple video formats including HDCVI, CVBS and other two common HD analog formats in the market. The four formats can be switched over through OSD menu or by PFM820(UTC controller). This feature makes the camera to be compatible with not only HCVRs but also most end users’ existing HD/SD DVRs.
Multi-language OSD
OSD menu provides multiple image adjustments and function settings to meet the requirements of different monitoring scenes. The OSD menu includes configurations such as backlight mode, day/night, white balance, privacy mask and motion detect. The camera supports 11 languages for OSD menu, namely, Chinese, English, French, German, Spanish, Portuguese, Italian, Japanese, Korean, Russian and Polish.
Protection
The camera’s outstanding reliability is unsurpassed due to its rugged design. The camera is protected against water and dust with IP67 ranking, making it suitable for indoor or outdoor environments.The camera complies with an IK10 vandal resistance rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in).With working temperature range of -40 °C to +60 °C (-40 °F to +140 °F), the camera is designed for extreme temperature environments.Supporting ±25% input voltage tolerance, this camera suits even the most unstable power supply conditions. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning.
| Vendor | DAHUA |
|---|---|
| RJ45 | 1 |
| Camera design | Eyeball |
| Network Camera Type | HDTV/Megapixel/Outdoor |
| Resolution | 8 Mega Pixel |
| Focal Length | 2.8mm |
| Sensor size | 1/2.7" |
| Microphone | Built-in |
| Lens Mount | M12 |
| Min. Illumination | 0.0007 Lux |
| Effective pixels | 3840 (H) 2160 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s1/100,000 s |
| Supports card capacities up to | 512GB |
| Power options | 12V/PoE |
| Power supply requirements | 12 VDC/PoE (802.3af) |
| Power consumption | 9.5 Watts |
| Environment | Outdoor |
| Operating temperature range | -40 C to +60 C |
| Colour | White |
| Dimensions | 105.5 mm 122.0 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002835 cubm |
| Product Net Weight | 0.53 kg |
| Unit Calculated Weight | 0.74 kg |
| Summary | Dahua Technology Lite DH-HAC-HDBW1200R-VF. Type: CCTV security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Dome. Minimum illumination: 0.02 lx, Angle of rotation: 355°, Lens viewing angle, horizontal: 106°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Focal length range: 2.7 – 13.5 mm, Focus: Manual, Detect distance (wide): 45 m |
| Certification | CE (EN55032, EN55024, EN50130-4) |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Languages support | English/French/German/Italian/Japanese/Korean/Polish/Portuguese/Russian/Simplified Chinese/Spanish |
| Number of languages | 11 |
| Placement supported | Indoor & outdoor |
| Remote viewing | Yes |
| Type | CCTV security camera |
| Wide Dynamic Range (WDR) | Yes |
| Form factor | Dome |
| Housing material | Aluminium |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Protection features | Vandal proof |
| Weatherproof | Yes |
| Angle of rotation | 355 ° |
| Camera pan control | Yes |
| Camera shutter speed | 1/25 – 1/100000 s |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 106 ° |
| Minimum illumination | 0.02 lx |
| Pan range | 0 – 355 ° |
| Tilt angle range | 0 – 75 ° |
| White balance | Auto/Manual |
| Number of sensors | 1 |
| Optical sensor size | 1/2.7 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 0.2 m |
| Detect distance (tele) | 148 m |
| Detect distance (wide) | 45 m |
| Focal length range | 2.7 – 13.5 mm |
| Focus | Manual |
| Identify distance (tele) | 15 m |
| Identify distance (wide) | 5 m |
| Maximum aperture number | 1.3 |
| Number of lenses | 1 |
| Observe distance (tele) | 59 m |
| Observe distance (wide) | 18 m |
| Recognize distance (tele) | 30 m |
| Recognize distance (wide) | 9 m |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 30 m |
| Number of illumination LEDs | 2 |
| Analog signal format system | PAL |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Frame rate | 25 fps |
| Gain control type | Auto |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Noise reduction | Yes |
| Smart IR | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1920 x 1080 (HD 1080) |
| Supported video modes | 1080p/720p |
| Total megapixels | 2 MP |
| Bluetooth | No |
| Ethernet LAN | No |
| Wi-Fi | No |
| Built-in HDD | No |
| Composite video out | 1 |
| DC output voltage | 12 |
| Power consumption (max) | 3.5 W |
| Power source type | DC |
| Operating relative humidity (H-H) | 0 – 90 % |
| Operating temperature (T-T) | -40 – 60 °C |
| Storage relative humidity (H-H) | 0 – 90 % |
| Storage temperature (T-T) | -40 – 60 °C |
| Diameter | 122 mm |
| Height | 88.9 mm |
| Weight | 400 g |
| Package weight | 550 g |
| Number of cameras | 1 |
| Manufacturer Code | IPC-HDW3849QM-S-IL-0280B |
| ELKO Code | 1441447 |
| Warranty | 36 |
