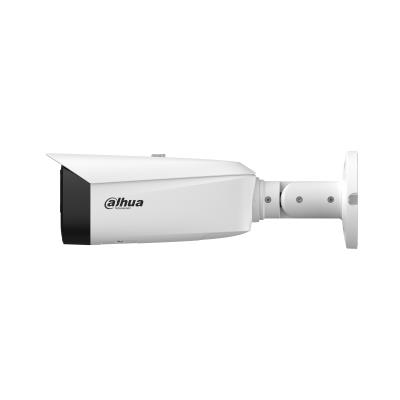

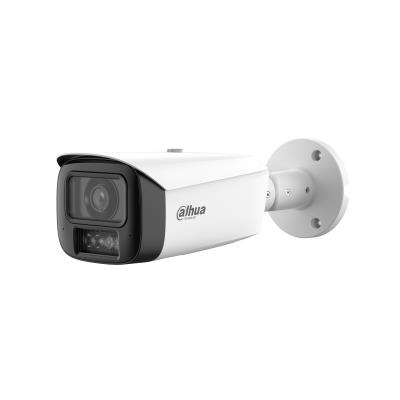

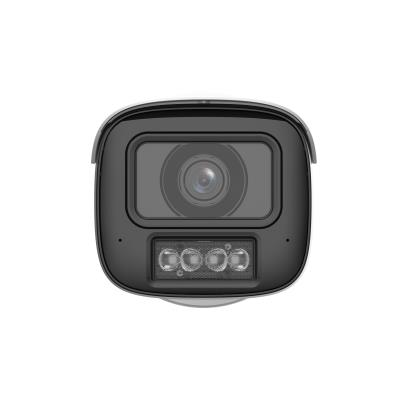

8MP WizColor Fixed-focal Bullet WizMind Network Camera
> 8-MP 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 8 MP (3840 × 2160) @25/30 fps.
> Built-in multi-core light, the max. IR distance is 80 m and the max. warm light distance is 60 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Features AI Rule Assist, which automatically creates highly accurate IVS rules based on the Xinghan Vision Models
> With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS-485; supports max. 1 TB Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply; ePoE; 12 VDC power output, and max. current 165mA, easy for installation.
> IP67 and IK10 protection.
> 2.8 mm (109°)
| Warranty | 36 |
|---|---|
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.006902 cubm |
| Unit Calculated Weight | 1.53 kg |
| Alarm In | 1 |
| Alarm Out | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| MicroSD Card Slot | 1 |
| RJ45 | 1 |
| RS-485 | 1 |
| Model | IPC-HFW5859T1-ASE-PV-PRO |
| Camera design | Bullet |
| Network Camera Type | Fixed/HDTV/Megapixel/Outdoor |
| Resolution | 8 Mega Pixel |
| Focal Length | 2.8 mm;3.6 mm |
| Sensor size | 1/1.8" CMOS |
| Microphone | Built-in |
| Lens Mount | M16 |
| Min. Illumination | 0.0005 Lux |
| Effective pixels | 3840 (H) × 2160 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Supports card capacities up to | 1TB |
| Power options | PoE |
| Power supply requirements | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Power consumption | 24.2 Watts |
| Environment | Outdoor |
| Operating temperature range | –40 °C to +60 °C |
| Colour | White |
| Dimensions | 127.6 mm × Φ122.0 mm |
| Product Net Weight | 1.09 kg |
| Form factor | Bullet |
| Product colour | White |
| Connectivity technology | Wired |
| Camera shutter speed | 1/3 s–1/100,000 s s |
| Camera shutter type | Electronic/Mechanical |
| Effective sensor resolution | 8 pixels |
| Optical sensor size | 1/1.8" " |
| Sensor type | CMOS |
| Fixed focal length | 2.8 mm |
| B/W night vision distance | 80 m |
| Night vision | Yes |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 1024 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| DC output voltage | 12 |
| Power consumption (max) | 24.2 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | –40 °C to +60 °C °C |
| Diameter | 122 mm |
| Height | 127.6 mm |
| Lens mount interface | M16 |
| Suitable for outdoor use | Yes |
| Adjustment shutter speed | Auto/Manual |
