Dahua Technology WizSense IPC-HFW3849T1-ZAS-PV. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.004 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 108°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8″). Focal length range: 2.7 mm, Detect distance (wide): 89.9 m, Detect distance (tele): 257.4 m
6 laos
6 laos

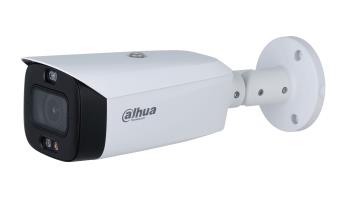

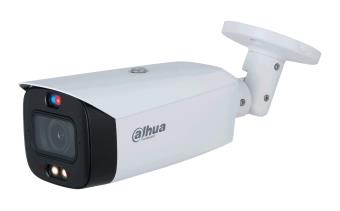

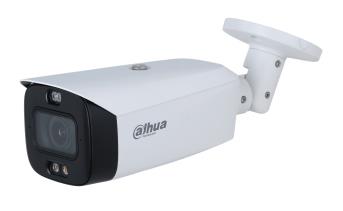

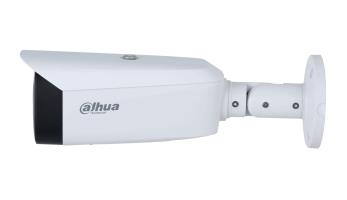

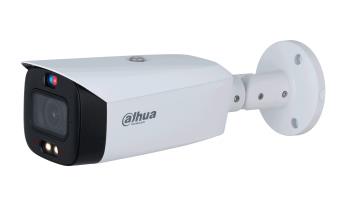

8MP Smart Dual Light Active Deterrence Vari-focal Bullet WizSense Network Camera
| Vendor | DAHUA |
|---|---|
| Alarm In | 1 |
| Alarm Out | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| MicroSD Card Slot | 1 |
| RJ45 | 1 |
| Model | IPC-HFW3849T1ZASPV27135S5 |
| Camera design | Bullet |
| Network Camera Type | HDTV/Megapixel/Outdoor |
| Resolution | 8 Mega Pixel |
| Focal Length | 2.7 mm–13.5 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.8" CMOS |
| Microphone | Built-in |
| Lens Mount | M16 |
| Min. Illumination | 0.0004 Lux |
| Effective pixels | 3840 (H) × 2160 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Supports card capacities up to | 512GB |
| Power supply requirements | 12 VDC/PoE (802.3af);12 VDC/PoE |
| Environment | Outdoor |
| Operating temperature range | –30 °C to +60 °C |
| Colour | White |
| Dimensions | 288.4 × 94.4 × 84.7 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00714 cubm |
| Product Net Weight | 1.05 kg |
| Unit Calculated Weight | 1.3 kg |
| Form factor | Bullet |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Alarm input/output | Yes |
| Connectivity technology | Wired |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Camera shutter speed | 1/3 – 1/100,000 s |
| Minimum illumination | 0.004 lx |
| Focal length range | 2.7 mm |
| B/W night vision distance | 50 m |
| LED type | IR |
| Night vision | Yes |
| 3D NR (Noise Reduction) | Yes |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 8 MP |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| DC output voltage | 12 |
| Power source type | DC,PoE |
| Operating temperature (T-T) | -30 – 60 °C |
| Storage temperature (T-T) | -40 – 60 °C |
| Depth | 288.4 mm |
| Height | 84.7 mm |
| Weight | 1050 g |
| Width | 94.4 mm |
| Audio input | 1 |
| Audio output | 1 |
| Lens mount interface | M16 |
| Lens type | Varifocal |
| Summary | Dahua Technology WizSense IPC-HFW3849T1-ZAS-PV. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Form factor: Bullet. Minimum illumination: 0.004 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 108°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Focal length range: 2.7 mm, Detect distance (wide): 89.9 m, Detect distance (tele): 257.4 m |
| Housing material | Metal/Plastic |
| Mounting type | Ceiling/wall |
| Certification | CE-LVD: EN 62368-1; CE-EMC: 2014/30/EU; FCC: 47 CFR FCC B; UL/CUL:UL62368-1; CAN/CSA C22.2; 62368-1-14 |
| Day/night mode | Yes |
| Placement supported | Outdoor |
| Adjustment shutter speed | Auto/Manual |
| Angle of rotation | 360 ° |
| Camera pan control | Yes |
| Camera shutter type | Electronic |
| Camera tilt control | Yes |
| Lens viewing angle, diagonal | 130 ° |
| Lens viewing angle, horizontal | 108 ° |
| Lens viewing angle, vertical | 56 ° |
| Pan range | 0 – 360 ° |
| Tilt angle range | 0 – 90 ° |
| White balance | Auto/Manual/Natural/Outdoor/Street lamp |
| Number of sensors | 1 |
| Optical sensor size | 1/2.8 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Closest focusing distance | 1.5 m |
| Detect distance (tele) | 257.4 m |
| Detect distance (wide) | 89.9 m |
| Identify distance (tele) | 25.7 m |
| Identify distance (wide) | 19 m |
| Maximum aperture number | 1.2 |
| Number of lenses | 1 |
| Observe distance (tele) | 103 m |
| Observe distance (wide) | 36 m |
| Recognize distance (tele) | 51.5 m |
| Recognize distance (wide) | 18 m |
| Night vision distance | 50 m |
| Number of illumination LEDs | 2 |
| Bit rate | 3 kbps-8192 |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
| Supported graphics resolutions | 1280 x 720 (HD 720)/1280 x 960/1920 x 1080 (HD 1080)/2592 x 1944/2688 x 1520/3072 x 1728/3072 x 2048/352 x 240/352 x 288/3840 x 2160/640 x 480 (VGA)/704 x 480/704 x 576 |
| Video compression formats | H.264/H.264+/H.264B/H.265/H.265+/M-JPEG |
| Video streaming | Yes |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.1x/IEEE 802.3af |
| Number of users | 20 user(s) |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Supported network protocols | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Internal memory | 1000 MB |
| ROM capacity | 128 MB |
| Intelligent Video Surveillance (IVS) system features | Intrusion/Tripwire |
| Mirror | Yes |
| Video motion detection | Yes |
| Web browser | Yes |
| Power consumption (max) | 7.9 W |
| Power consumption (Power over Ethernet (PoE)) | 9.8 W |
| Operating relative humidity (H-H) | 0 – 95 % |
| Storage relative humidity (H-H) | 0 – 95 % |
| Mobile operating systems supported | Android/iOS |
| Length | 288.4 mm |
| Package weight | 1350 g |
| Number of cameras | 1 |
| Manufacturer Code | IPC-HFW3849T1ZASPV27135S5 |
| ELKO Code | 1430664 |
| Warranty | 36 |
