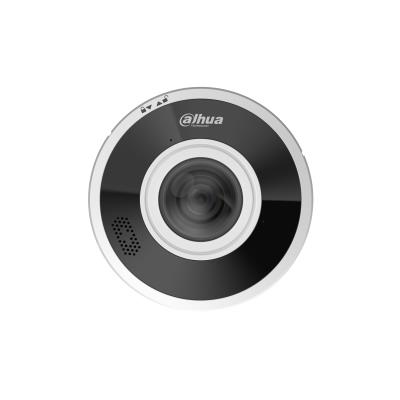

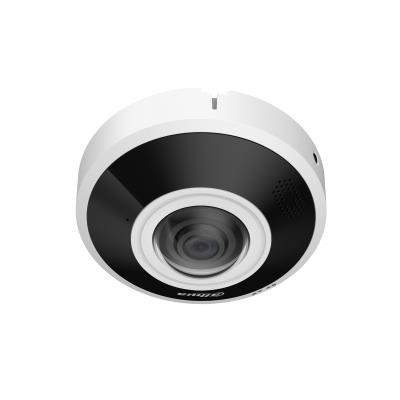

Dahua Technology IPC-EBW5641-AS. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Sensor type: CMOS. Maximum resolution: 2560 x 2560 pixels, Total megapixels: 6 MP. Power source type: DC, PoE
4 laos
4 laos
Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, IVSS,NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customer’s requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
With fisheye lens, Dahua Fisheye series camera can realize 360° surveillance, and it is widely applied in various scenes such as airports, shopping centers, banks and hotels.
| Kaal | 0,46 kg |
|---|---|
| Vendor | DAHUA |
| Alarm In | 1 |
| Alarm Out | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| RJ45 | 1 |
| Model | IPC-EBW5641-AS |
| Camera design | Other |
| Network Camera Type | HDTV/Megapixel |
| Resolution | 6 Mega Pixel |
| Focal Length | 1.68 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.5" CMOS |
| Microphone | Built-in |
| Lens Mount | M12 |
| Min. Illumination | 0.0006 Lux |
| Effective pixels | 2560 (H) × 2560 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Supports card capacities up to | 512GB |
| Power options | PoE |
| Power supply requirements | 12 VDC, 1 A; PoE (802.3af) |
| Power consumption | 10.1 Watts |
| Environment | Outdoor |
| Operating temperature range | –30 °C to +60 °C |
| Colour | White |
| Dimensions | Φ122 mm × 53.3 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002816 cubm |
| Product Net Weight | 0.46 kg |
| Unit Calculated Weight | 0.77 kg |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Alarm input/output | Yes |
| Connectivity technology | Wired |
| Type | IP security camera |
| Camera shutter speed | 1/3 s–1/100,000 s s |
| Field of view (FOV) angle | 185 ° |
| Number of sensors | 1 |
| Optical sensor size | 1/2.5 " |
| Sensor type | CMOS |
| Fixed focal length | 1.68 mm |
| B/W night vision distance | 15 m |
| LED type | IR |
| Night vision | Yes |
| Maximum resolution | 2560 x 2560 pixels |
| Total megapixels | 6 MP |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 1000 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| DC output voltage | 12 |
| Power consumption (typical) | 10.1 W |
| Power source type | DC,PoE |
| Operating temperature (T-T) | -30 – 60 °C |
| Diameter | 122 mm |
| Height | 53.3 mm |
| Weight | 460 g |
| Audio input | 1 |
| Audio output | 1 |
| Summary | Dahua Technology IPC-EBW5641-AS. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Sensor type: CMOS. Maximum resolution: 2560 x 2560 pixels, Total megapixels: 6 MP. Power source type: DC, PoE |
| Form factor | Dome |
| Mounting type | Ceiling |
| Placement supported | Indoor & outdoor |
| Number of lenses | 1 |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Built-in HDD | No |
| Cloud-managed | Yes |
| Number of cameras | 1 |
| Long Description | Dahua Technology IPC-EBW5641-AS. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Dome. Sensor type: CMOS. Maximum resolution: 2560 x 2560 pixels, Total megapixels: 6 MP. Power source type: DC, PoE |
| Bullet Points | 6-MP 1/2.5" CMOS image sensor, low luminance, and high definition imageOutputs max. 6 MP (2560 × 2560)@25/30 fps360° fisheye monitoring covers all the corners without any blind zoneSupports fisheye front-dewarp and back-dewarpSupports split screen for 2 and 4 windowsBuilt-in IR LED, and the max. illumination distance is 15 mROI, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environmentsWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenesWith deep learning algorithm, it supports: Perimeter Protection, People Counting, Heat mapAlarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 1TB Micro SD cardBuilt-in speaker and dual Mic. Supports two-way talk12 VDC/ PoE(802.3af) power supplyIP67 and IK10 protection |
| Width | 122 mm |
| Depth | 122 mm |
| Storage temperature (T-T) | -30 – 60 °C |
| Operating relative humidity (H-H) | 0 – 95 % |
| Storage relative humidity (H-H) | 0 – 95 % |
| Package weight | 750 g |
| Manufacturer Code | IPC-EBW5641-AS |
| ELKO Code | 1440370 |
| Warranty | 36 |
