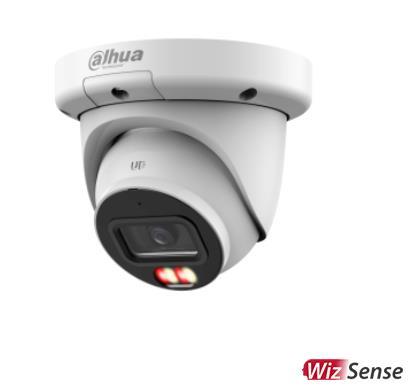

Dahua Technology IPC-HDW3849QM-S-IL. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Sensor type: CMOS. Maximum resolution: 3288 x 1850 pixels, Total megapixels: 6 MP. Power source type: DC, PoE
15 laos
15 laos
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chip and deep learning algorithm. It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua’s advanced technologies, WizSense provides intelligent, simple and
inclusive products and solutions.
| Kaal | 0,53 kg |
|---|---|
| Vendor | DAHUA |
| RJ45 | 1 |
| Camera design | Eyeball |
| Network Camera Type | HDTV/Megapixel/Outdoor |
| Resolution | 6 Mega Pixel |
| Focal Length | 2.8 mm |
| Sensor size | 1/2.7" |
| Microphone | Built-in |
| Lens Mount | M12 |
| Min. Illumination | 0.0005 Lux |
| Effective pixels | 3288 (H) × 1850 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Supports card capacities up to | 512GB |
| Power options | 12V/PoE |
| Power supply requirements | 12 VDC/PoE (802.3af) |
| Power consumption | 9.5 Watts |
| Environment | Outdoor |
| Operating temperature range | –40 °C to +60 °C |
| Colour | White |
| Dimensions | 105.5 mm × Φ122.0 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.002835 cubm |
| Product Net Weight | 0.53 kg |
| Unit Calculated Weight | 0.74 kg |
| Form factor | Turret |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Connectivity technology | Wired |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Camera shutter speed | 1/3 s–1/100,000 s |
| Field of view (FOV) angle | 110 ° |
| Minimum illumination | 0.0005 lx |
| Number of sensors | 1 |
| Optical sensor size | 1/2.7 " |
| Sensor type | CMOS |
| Fixed focal length | 2.8 mm |
| B/W night vision distance | 30 m |
| LED type | IR |
| Night vision | Yes |
| 3D NR (Noise Reduction) | Yes |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 3288 x 1850 pixels |
| Total megapixels | 6 MP |
| Built-in microphone | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| DC output voltage | 12 |
| Power consumption (typical) | 9.5 W |
| Power source type | DC,PoE |
| Operating temperature (T-T) | -40 – 60 °C |
| Storage temperature (T-T) | -40 – 60 °C |
| Diameter | 122 mm |
| Height | 105.5 mm |
| Weight | 530 g |
| Lens mount interface | M12 |
| Model | IPC-HDW3649QM-S-IL-0280B |
| Summary | Dahua Technology IPC-HDW3849QM-S-IL. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Sensor type: CMOS. Maximum resolution: 3288 x 1850 pixels, Total megapixels: 6 MP. Power source type: DC, PoE |
| Mounting type | Ceiling |
| Placement supported | Indoor & outdoor |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Built-in HDD | No |
| Cloud-managed | Yes |
| Number of cameras | 1 |
| Long Description | Dahua Technology IPC-HDW3849QM-S-IL. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Sensor type: CMOS. Maximum resolution: 3288 x 1850 pixels, Total megapixels: 6 MP. Power source type: DC, PoE |
| Bullet Points | 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition imageOutputs max. 8 MP (3840 × 2160)@25/30 fpsH.265 codec, high compression rate, ultra-low bit rateBuilt-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 mROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environmentsRotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenesIntelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image)Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detectionMax. 512 G Micro SD card; built-in Mic12 VDC/PoE power supplyIP67 protectionSMD 4.0Supports AI SSASMD area can be set in warm light areas that support triggering alarms |
| Width | 122 mm |
| Depth | 122 mm |
| Operating relative humidity (H-H) | 0 – 95 % |
| Storage relative humidity (H-H) | 0 – 95 % |
| Package weight | 710 g |
| Manufacturer Code | IPC-HDW3649QM-S-IL-0280B |
| ELKO Code | 1441444 |
| Warranty | 36 |
