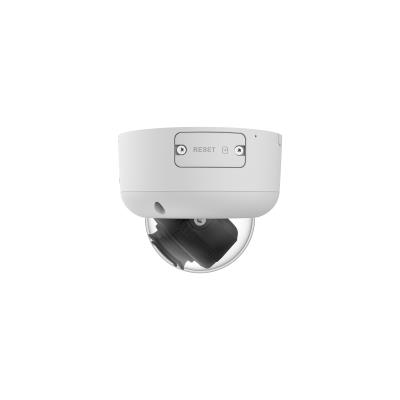

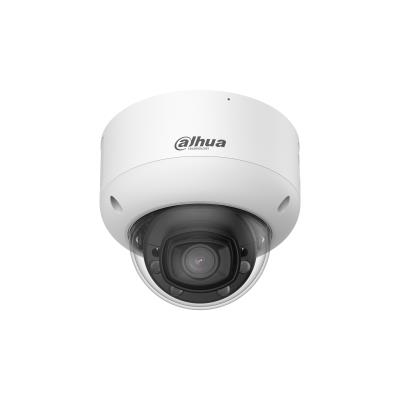

6MP WizColor Fixed-focal Dome WizMind Network Camera
> 1/1.8" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3072 × 2048) @25/30 fps.
> Built-in multi-core light, the max. IR distance is 60 m and the max. warm light distance is 50 m.
> ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Powered by the Xinghan Large-Scale AI Models-Vision, the camera outstandingly delivers on its object detection, recognition, and scene adaptation functions.
> With deep learning algorithm, it supports: AcuPick, video metadata, IVS, face detection, and people counting, etc.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; RS-485; supports max. 1 TB Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
> 12 VDC/PoE power supply; ePoE; 12 VDC power output, and max. current 165mA, easy for installation.
> IP67 and IK10 protection.
> 2.8 mm (109°)
| Warranty | 36 |
|---|---|
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003288 cubm |
| Unit Calculated Weight | 0.97 kg |
| Alarm In | 1 |
| Alarm Out | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| RJ45 | 1 |
| RS-485 | 1 |
| Model | IPC-HDBW5659R1-ASE-PV-PRO |
| Camera design | Dome |
| Network Camera Type | Fixed Dome/HDTV/Megapixel/Outdoor |
| Resolution | 6 Mega Pixel |
| Focal Length | 2.8 mm; 3.6 mm |
| IR Illumination | Yes |
| Sensor size | 1/1.8" CMOS |
| Microphone | Built-in |
| Lens Mount | M16 |
| Min. Illumination | 0.0002 Lux |
| Effective pixels | 3072 (H) × 2048 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Supports card capacities up to | 1TB |
| Power options | PoE |
| Power supply requirements | 12 VDC (±30%); PoE+ (802.3at); ePoE |
| Power consumption | 23.9 Watts |
| Operating temperature range | –40 °C to +60 °C |
| Colour | White |
| Dimensions | 105.0 mm × Φ126.0 mm |
| Product Net Weight | 0.73 kg |
| Form factor | Dome |
| IK code | IK10 |
| International Protection (IP) code | IP66 |
| Product colour | White |
| Alarm input/output | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Camera shutter speed | 1/3 s–1/100,000 s s |
| Horizontal field of view (thermal module) | 109 ° |
| Vertical field of view (optical module) | 131 ° |
| Vertical field of view (thermal module) | 59 ° |
| White balance | Auto/Manual/Outdoor/Regional custom/Street lamp |
| Optical sensor size | 1/1.8 " |
| Fixed focal length | 2.8 mm |
| Maximum aperture number | 1 |
| B/W night vision distance | 60 m |
| LED type | IR |
| Night vision | Yes |
| Maximum resolution | 3072 × 2048 pixels |
| Total megapixels | 6 MP |
| Video compression formats | H.264/H.264B/H.264H/H.265 |
| Built-in microphone | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
| Power source type | DC,PoE |
| Operating temperature (T-T) | –40 °C to +60 °C °C |
| Storage temperature (T-T) | –40 °C to +60 °C °C |
| Diameter | 126 mm |
| Height | 105 mm |
| Weight | 730 g |
| Audio input | 1 |
| Audio output | 1 |
