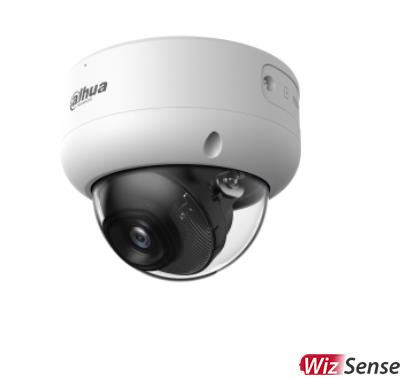

> 6-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 6 MP (3288 1850)@25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED and warm light , the max. IR illumination distance is 30 m and the max. warm light distance is 30 m.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image).
> Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in Mic.
> 12 VDC/PoE power supply.
> IP67 and IK10 protection.
> SMD 4.0.
> Supports AI SSA.
> SMD area can be set in warm light areas that support triggering alarms.
> Focal Length 2.8 mm, Field of View 110°
| Kaal | 0,528 kg |
|---|---|
| Vendor | DAHUA |
| Alarm In | 1 |
| Alarm Out | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| RJ45 | 1 |
| Camera design | Dome |
| Network Camera Type | Fixed Dome/HDTV/Megapixel/Outdoor |
| Resolution | 6 Mega Pixel |
| Focal Length | 2.8 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.7" |
| Microphone | Built-in |
| Lens Mount | M12 |
| Min. Illumination | 0.0005 Lux |
| Effective pixels | 3288 (H) 1850 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s1/100,000 s |
| Supports card capacities up to | 512GB |
| Power options | 12V/PoE |
| Power supply requirements | 12 VDC/PoE (802.3af) |
| Power consumption | 7.5 Watts |
| Environment | Outdoor |
| Operating temperature range | -40 C to +60 C |
| Colour | White |
| Dimensions | 89.1 mm 111.7 mm |
| Units per Shipping Box | 24 |
| Unit Calculated Volume | 0.00286 cubm |
| Product Net Weight | 0.528 kg |
| Unit Calculated Weight | 0.79 kg |
| Form factor | Dome |
| Connectivity technology | Wired |
| Camera shutter speed | 1/3 s1/100,000 s s |
| Camera shutter type | Electronic/Mechanical |
| Effective sensor resolution | 6 pixels |
| Optical sensor size | 1/2.7" " |
| Sensor type | CMOS |
| Fixed focal length | 2.8 mm |
| B/W night vision distance | 30 m |
| Night vision | Yes |
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Built-in microphone | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| DC output voltage | 12 |
| Power consumption (max) | 7.5 W |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -40 C to +60 C °C |
| Lens mount interface | M12 |
| Adjustment shutter speed | Auto/Manual |
| Manufacturer Code | DH-IPC-HDBW3649E-AS-IL-0280B |
| ELKO Code | 1441435 |
| Warranty | 36 |
