Security Solutions / Video Surveillance / IP Cameras / NET CAMERA 6MP BULLET/IPC-HFW2649S-S-IL-0280B DAHUA

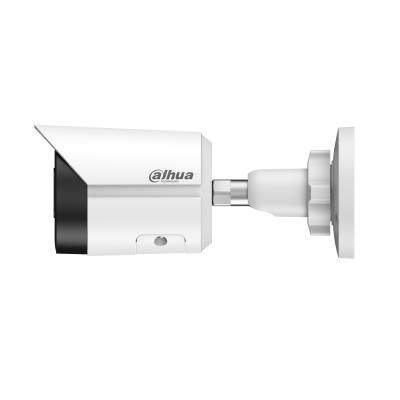

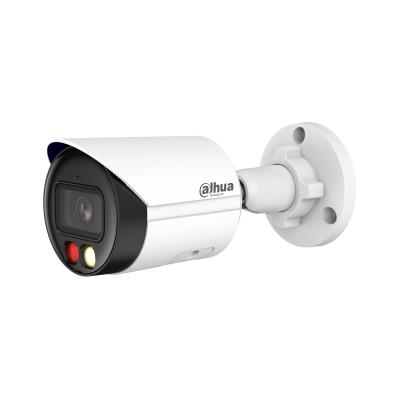

NET CAMERA 6MP BULLET/IPC-HFW2649S-S-IL-0280B DAHUA

186,67

Dahua Technology WizSense IPC-HFW2649S-S-IL-0280B. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Pole clamp, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0007 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 112°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″). Detect distance: 61.2 m, Observe distance: 24.5 m, Recognize distance: 12.2 m

Laost otsas

Laost otsas

Tootekood: IPC-HFW2649S-S-IL-0280B Kategooriad: , , ,

Kirjeldus

  • 1/2.7″ CMOS image sensor, low luminance, and high definition image
  • Outputs max. 6 MP (3288×1850) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 30 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
  • Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
  • Supports max. 256 G Micro SD card; built in Mic
  • 12 VDC/PoE power supply, easy for installation

Lisainfo

Vendor

DAHUA

RJ45

1

Camera design

Bullet

Network Camera Type

HDTV/Megapixel/Outdoor

Resolution

6 Mega Pixel

Focal Length

2.8 mm

Sensor size

1/2.7"

Microphone

Built-in

Lens Mount

M12

Min. Illumination

0.0007 Lux

Effective pixels

3288 (H) × 1850 (V)

Electronic Shutter Speed

Auto/Manual

Supports card capacities up to

256GB

Power options

12V/PoE

Power supply requirements

12 VDC; PoE

Power consumption

4.4 Watts

Environment

Outdoor

Operating temperature range

–40 °C to +60 °C

Dimensions

169.8 mm × 70 mm × 70 mm

Units per Shipping Box

20

Unit Calculated Volume

0.00272 cubm

Product Net Weight

0.47 kg

Unit Calculated Weight

0.65 kg

Form factor

Bullet

Product colour

White

Adjustment shutter speed

Auto/Manual

Number of effective pixels (H x V)

3288 (H) × 1850 (V) pixels

Optical sensor size

1/2.7 "

Focal length range

2.8 mm mm

Total megapixels

6 MP

Built-in microphone

Yes

Ethernet LAN (RJ-45) ports

1

Power consumption (typical)

2.5 W

Operating temperature (T-T)

-40 – 60 °C

Depth

70 mm

Height

70 mm

Weight

470 g

Width

70 mm

Suitable for outdoor use

Yes

Summary

Dahua Technology WizSense IPC-HFW2649S-S-IL-0280B. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Pole clamp, Product colour: White, Form factor: Bullet. Minimum illumination: 0.0007 lx, Angle of rotation: 360°, Lens viewing angle, horizontal: 112°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Detect distance: 61.2 m, Observe distance: 24.5 m, Recognize distance: 12.2 m

Housing material

Metal

International Protection (IP) code

IP67

Mounting type

Pole clamp

Connectivity technology

Wired

Day/night mode

Yes

Dynamic range

120 dB

Placement supported

Indoor

Type

IP security camera

Wide Dynamic Range (WDR)

Yes

Angle of rotation

360 °

Camera pan control

Yes

Camera shutter speed

1/3 – 1/100000 s

Camera tilt control

Yes

Lens viewing angle, diagonal

132 °

Lens viewing angle, horizontal

112 °

Lens viewing angle, vertical

61 °

Minimum illumination

0.0007 lx

Number of Privacy masking areas

4

Pan range

0 – 360 °

Tilt angle range

0 – 90 °

White balance

Auto/Manual/Natural/Outdoor/Regional custom/Street lamp

Number of sensors

1

Progressive scan

Yes

Sensor type

CMOS

Closest focusing distance

1 m

Detect distance

61.2 m

Fixed focal length

2.8 mm

Fixed focus

Yes

Identify distance

6.1 m

Maximum aperture number

1.6

Observe distance

24.5 m

Recognize distance

12.2 m

Colour night vision distance

30 m

LED type

IR

Night vision

Yes

Night vision distance

30 m

Number of illumination LEDs

2

Back Light Compensation (BLC)

Yes

Bit rate control

Constant Bit Rate (CBR)/Variable Bit Rate (VBR)

Frame rate

30 fps

Gain control type

Auto/Manual

Highlight Compensation (HLC)

Yes

Maximum resolution

3288 x 1850 pixels

Noise reduction

Yes

Noise reduction technology

3D noise reduction

Region of Interest (ROI) encoding

Yes

Video compression formats

H.264/H.264B/H.264H/H.265/M-JPEG

Video recording

Yes

Video streaming

Yes

Audio formats supported

G.711 µ-law/G.711 A-law/G.726/PCM

Bluetooth

No

Ethernet interface type

Fast Ethernet

Ethernet LAN

Yes

Networking standards

IEEE 802.1x

Quality of Service (QoS) support

Yes

Streaming method

Multicast

Supported network protocols

IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, ICMP, IGMP, NFS, PPPoE, P2P

Wi-Fi

No

Built-in HDD

No

Card reader integrated

Yes

Compatible memory cards

MicroSD (TransFlash)

Maximum memory card size

256 GB

RAM capacity

256 MB

ROM capacity

128 MB

DC-in jack

Yes

Human and vehicle targets classification

Yes

IP address filtering

Yes

Mirror

Yes

Network access storage (NAS)

Yes

Video motion detection

Yes

DC output voltage

12

Power consumption (max)

4.4 W

Power source type

DC,PoE

Storage temperature (T-T)

-40 – 60 °C

Mobile operating systems supported

Android/iOS

Length

169.8 mm

Compliance certificates

CE

Package weight

590 g

Manual

Yes

Number of cameras

1

Manufacturer Code

IPC-HFW2649S-S-IL-0280B

ELKO Code

1441455

Warranty

36

Brand

DAHUA
