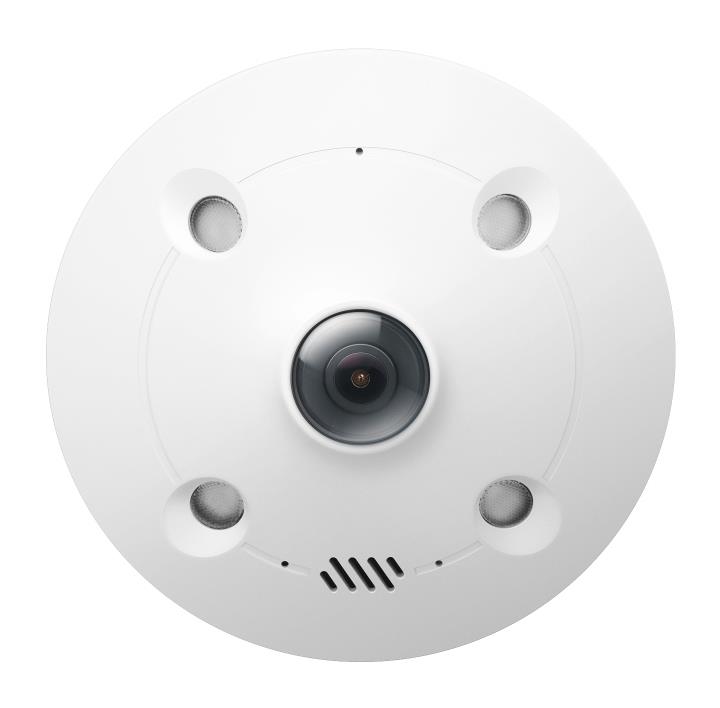

TP-Link InSight S655I. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Housing material: Metal. Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 180°, Lens viewing angle, diagonal: 180°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7″). Sensor type (panoramic camera): CMOS, Signal-to-Noise Ratio (SNR) (panoramic camera): 52 dB
2 laos
2 laos
360° Coverage with 4-in-1 Cameras
A single fisheye camera can play the role of many, providing a simpler and more competitive security solution. For example, in 4PTZ display mode, it functions as four cameras at once, delivering complete coverage and flexible perspectives.
Multiple Display Modes
Along with the fisheye view, VIGI provides multiple display modes, enabling you to focus on every detail exactly as you prefer.
Smart Video Enhancement Technology
True WDR: By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
Smart IR: Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR: 3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance: White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
| Kaal | 0,44 kg |
|---|---|
| Vendor | TP-LINK |
| Model | InSight S655I |
| Camera design | Other |
| Network Camera Type | Fixed/HDTV/Megapixel |
| Resolution | 5 Mega Pixel |
| Focal Length | 1.44 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.7” Progressive Scan CMOS |
| Electronic Shutter Speed | 1/3 to 1/10000 s |
| Included Accessories | • VIGI Network Camera |
| Dimensions | 132 × 132 × 56 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.00306 cubm |
| Product Net Weight | 0.44 kg |
| Unit Calculated Weight | 0.755 kg |
| Summary | TP-Link InSight S655I. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: White, Housing material: Metal. Lens viewing angle, horizontal: 180°, Lens viewing angle, vertical: 180°, Lens viewing angle, diagonal: 180°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Sensor type (panoramic camera): CMOS, Signal-to-Noise Ratio (SNR) (panoramic camera): 52 dB |
| Certification | CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Dynamic range | 120 dB |
| Infrared (IR) cut-off filter | Yes |
| Placement supported | Indoor |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Housing material | Metal |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Protection features | Weatherproof |
| Weatherproof | Yes |
| Camera shutter speed | 1/3 – 1/10000 s |
| Lens viewing angle, diagonal | 180 ° |
| Lens viewing angle, horizontal | 180 ° |
| Lens viewing angle, vertical | 180 ° |
| Number of Privacy masking areas | 4 |
| Digital Wide Dynamic Range (DWDR) (panoramic camera) | Yes |
| Optical sensor size | 1/2.7 " |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Sensor type (panoramic camera) | CMOS |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 52 dB |
| Detect distance | 28.8 m |
| Fixed focal length | 1.44 mm |
| Identify distance | 2.8 m |
| Maximum aperture number | 2 |
| Observe distance | 12 m |
| Recognize distance | 5.7 m |
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision | Yes |
| Night vision distance | 10 m |
| Number of illumination LEDs | 4 |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 64 Kbps to 6 Mbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Frame rate | 30 fps |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | Brightness/Contrast/Saturation/Sharpness |
| Maximum resolution | 2560 x 1920 pixels |
| Noise reduction technology | 3D noise reduction |
| Region of Interest (ROI) encoding | Yes |
| Smart IR | Yes |
| Supported graphics resolutions | 1280 x 960/2048 x 1536 (QXGA)/2560 x 1920/320 x 240/640 x 480 (VGA) |
| Total megapixels | 5 MP |
| Video compression formats | H.264/H.264+/H.265/H.265+ |
| Video streaming | Yes |
| Audio system | 2-way |
| Bit rate range | 0 – 64 Kbit/s |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Number of microphones | 1 |
| Sample rate | 8 kHz |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Bluetooth | No |
| Client interoperability | Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Networking standards | IEEE 802.3/IEEE 802.3af/IEEE 802.3at/IEEE 802.3u |
| Number of simultaneous live view channels | 6 channels |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| Wi-Fi | No |
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alert notification type | E-mail,Push notification |
| Digest authentication | Yes |
| HTTPS encryption | Yes |
| IP address filtering | Yes |
| Motion sensor | Yes |
| Password protection | Yes |
| Privacy protection | Yes |
| Video motion detection | Yes |
| Cloud-managed | Yes |
| Reset button | Yes |
| Web browser | Yes |
| DC output voltage | 12 |
| Power consumption (max) | 11.76 W |
| Power consumption (Power over Ethernet (PoE)) | 12.14 W |
| Power source type | DC,PoE |
| Operating relative humidity (H-H) | 0 – 95 % |
| Operating temperature (T-T) | -30 – 60 °C |
| Storage relative humidity (H-H) | 0 – 95 % |
| Storage temperature (T-T) | -40 – 60 °C |
| Diameter | 132 mm |
| Height | 56 mm |
| Weight | 440 g |
| Number of cameras | 1 |
| Lens mount interface | M12 |
| Manufacturer Code | INSIGHT S655I |
| ELKO Code | 1445894 |
| Warranty | 36 |
