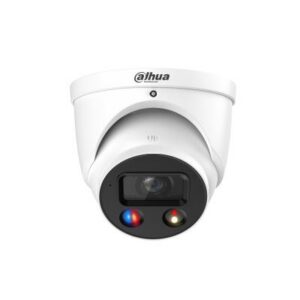

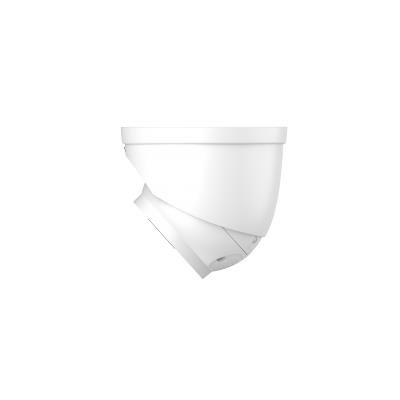

Dahua Technology IPC-HDW3549H-AS-PV-0280B-S5. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Sensor type: CMOS. Maximum resolution: 2960 x 1688 pixels, Total megapixels: 5 MP. Power source type: DC, PoE
Laost otsas
Laost otsas
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI
chip and deep learning algorithm.
It focuses on human and vehicle with high accuracy, enabling users to fast act on defined targets. Based on Dahua’s advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
| Kaal | 0,75 kg |
|---|---|
| Vendor | DAHUA |
| RJ45 | 1 |
| Model | IPC-HDW3549H-ASPV0280BS5 |
| Camera design | Eyeball |
| Network Camera Type | Fixed/HDTV/Megapixel/Outdoor |
| Resolution | 5 Mega Pixel |
| Focal Length | 2.8 mm; 3.6 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.7" CMOS |
| Microphone | Built-in |
| Lens Mount | M12 |
| Min. Illumination | 0.0003 Lux |
| Effective pixels | 2960 (H) × 1688 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Supports card capacities up to | 256GB |
| Power supply requirements | 12 VDC; PoE |
| Operating temperature range | –40 °C to +60 °C |
| Dimensions | Φ122.0 mm × 110.9 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003348 cubm |
| Product Net Weight | 0.75 kg |
| Unit Calculated Weight | 0.932 kg |
| Form factor | Turret |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Wide Dynamic Range (WDR) | Yes |
| Adjustment shutter speed | Auto/Manual |
| Camera shutter speed | 1/3 s–1/100,000 s |
| Minimum illumination | 0.0003 lx |
| Fixed focal length | 2.8 mm |
| B/W night vision distance | 30 m |
| LED type | IR |
| Night vision | Yes |
| 3D NR (Noise Reduction) | Yes |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 2960 x 1688 pixels |
| Total megapixels | 5 MP |
| Built-in microphone | Yes |
| Built-in speaker(s) | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| DC output voltage | 12 |
| Power source type | DC,PoE |
| Operating temperature (T-T) | -40 – 60 °C |
| Diameter | 122 mm |
| Height | 110.9 mm |
| Weight | 750 g |
| Lens mount interface | M12 |
| Summary | Dahua Technology IPC-HDW3549H-AS-PV-0280B-S5. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Sensor type: CMOS. Maximum resolution: 2960 x 1688 pixels, Total megapixels: 5 MP. Power source type: DC, PoE |
| Mounting type | Ceiling |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Sensor type | CMOS |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Built-in HDD | No |
| Cloud-managed | Yes |
| Number of cameras | 1 |
| Long Description | Dahua Technology IPC-HDW3549H-AS-PV-0280B-S5. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: White, Form factor: Turret. Sensor type: CMOS. Maximum resolution: 2960 x 1688 pixels, Total megapixels: 5 MP. Power source type: DC, PoE |
| Bullet Points | 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition imageOutputs max. 5 MP (2960 ×1668) @20 fpsH.265 codec, high compression rate, ultra-low bit rateBuilt-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 mROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environmentsRotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenesIntelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image)Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detectionAlarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; buit-in dual Mic; 1-ch speaker; support two-way talk12 VDC/PoE power supplyIP67 protectionSound and light alarm (red and blue lights)SMD 4.0Supports AI SSA and one-tap arming and disarmingSMD area can be set in warm light areas that support triggering alarms |
| Width | 122 mm |
| Depth | 122 mm |
| Operating relative humidity (H-H) | 0 – 95 % |
| Package weight | 920 g |
| Manufacturer Code | IPC-HDW3549H-ASPV0280BS5 |
| ELKO Code | 1424270 |
| Warranty | 36 |
