> 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960 × 1668) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 30 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply.
> IP67 protection.
> SMD Plus
| Vendor | DAHUA |
|---|---|

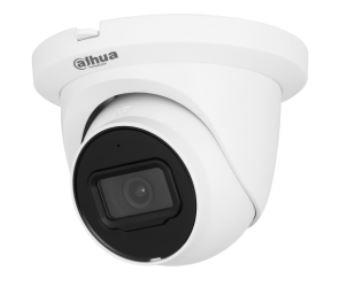

| Model | DH-IPC-HDW2541TM-S-0360B-S2 |
| Camera design | Eyeball |
| Network Camera Type | Fixed Dome/HDTV/Megapixel/Outdoor |
| Resolution | 5 Mega Pixel |
| Focal Length | 3.6 mm |
| IR Illumination | Yes |
| Sensor size | 1/2.7" CMOS |
| Lens Mount | M12 |
| Min. Illumination | 0.0007 Lux |
| Effective pixels | 2960 (H) × 1688 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Supports card capacities up to | 256GB |
| Power options | 12V/PoE |
| Power supply requirements | 12 VDC/PoE |
| Power consumption | 5 Watts |
| Operating temperature range | –40 °C to +60 °C |
| Dimensions | 99.1 mm × Φ121.9 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003456 cubm |
| Product Net Weight | 0.48 kg |
| Unit Calculated Weight | 0.68 kg |
| Manufacturer Code | IPC-HDW2541TM-S-0360B-S2 |
| ELKO Code | 1407284 |
| Warranty | 36 |
