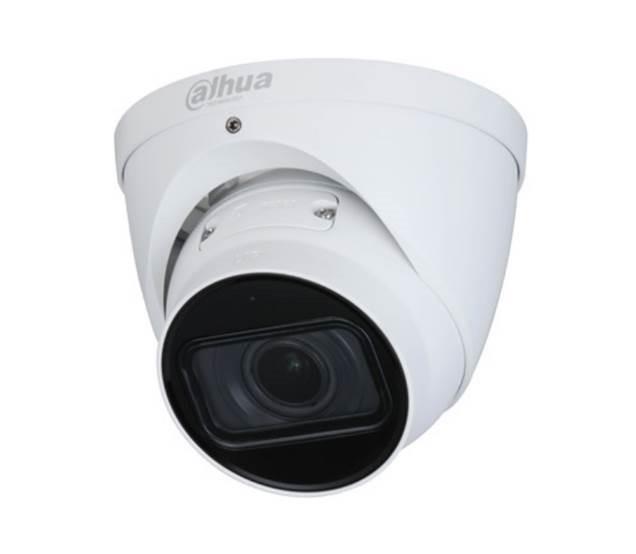

> 5-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.
> Outputs max. 5 MP (2960 × 1668) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps.
> H.265 codec, high compression rate, ultra-low bit rate.
> Built-in IR LED, and the max. illumination distance is 40 m.
> ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
> Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
> Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
> Supports max. 256 G Micro SD card; built in MIC.
> 12 VDC/PoE power supply, easy for installation.
> IP67 protection.
> SMD Plus.
| Kaal | 0,68 kg |
|---|---|
| Vendor | DAHUA |
| RJ45 | 1 |
| Model | IPC-HDW2541T-ZS-27135-S2 |
| Camera design | Eyeball |
| Network Camera Type | HDTV/Megapixel/Outdoor |
| Resolution | 5 Mega Pixel |
| IR Illumination | Yes |
| Sensor size | 1/2.7" |
| Microphone | Built-in |
| Lens Mount | M14 |
| Min. Illumination | 0.007 Lux |
| Effective pixels | 2960 (H) × 1668 (V) |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Supports card capacities up to | 256GB |
| Power options | 12V/PoE |
| Power supply requirements | 12 VDC/PoE (802.3af) |
| Power consumption | 3 Watts |
| Environment | Outdoor |
| Operating temperature range | –30 °C to +60 °C |
| Colour | White |
| Dimensions | 108.3 mm × Φ122 mm |
| Units per Shipping Box | 1 |
| Unit Calculated Volume | 0.003123 cubm |
| Product Net Weight | 0.68 kg |
| Unit Calculated Weight | 0.85 kg |
| Form factor | Eyeball |
| International Protection (IP) code | IP67 |
| Product colour | White |
| Connectivity technology | Wired |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Camera shutter speed | 1/3 s–1/100,000 s |
| Number of sensors | 1 |
| Optical sensor size | 1/2.7 " |
| Sensor type | CMOS |
| B/W night vision distance | 40 m |
| LED type | IR |
| Night vision | Yes |
| 3D NR (Noise Reduction) | Yes |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 2960 × 1668 pixels |
| Total megapixels | 5 MP |
| Built-in microphone | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| DC output voltage | 12 |
| Power consumption (typical) | 3 W |
| Power source type | DC,PoE |
| Operating temperature (T-T) | –30 °C to +60 °C °C |
| Storage temperature (T-T) | –30 °C to +60 °C °C |
| Diameter | 122 mm |
| Height | 108.3 mm |
| Weight | 680 g |
| Lens mount interface | M14 |
| Manufacturer Code | IPC-HDW2541T-ZS-27135-S2 |
| ELKO Code | 1410240 |
| Warranty | 36 |
