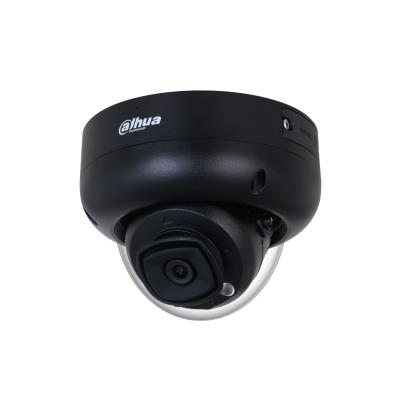

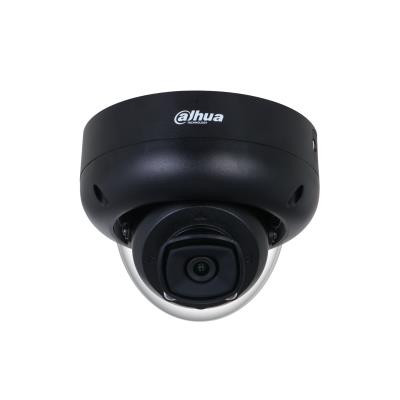

Dahua Technology IPC-HDBW5541R-ASE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, Form factor: Dome. Sensor type: CMOS. Maximum resolution: 2960 x 1668 pixels, Total megapixels: 5 MP. Power source type: DC, PoE
10 laos
10 laos
| Vendor | DAHUA |
|---|---|
| Alarm In | 1 |
| Alarm Out | 1 |
| Audio-In | 1 |
| Audio-Out | 1 |
| RJ45 | 1 |
| Model | IPC-HDBW5541R-ASE0280BS3-B |
| Camera design | Dome |
| Network Camera Type | Fixed Dome/HDTV/Megapixel/Outdoor |
| Resolution | 5 Mega Pixel |
| Focal Length | 2.8mm |
| IR Illumination | Yes |
| Sensor size | 1/2.7" |
| Microphone | Built-in |
| Lens Mount | M12 |
| Min. Illumination | 0.0005 Lux |
| Effective pixels | Auto/Manual 1/3 s–1/100,000 s |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Supports card capacities up to | 512GB |
| Power options | 12V/PoE |
| Power supply requirements | 12 VDC/PoE (802.3af)/ePoE |
| Power consumption | 8.8 Watts |
| Environment | Outdoor |
| Operating temperature range | –40 °C to +60 °C |
| Colour | Black |
| Dimensions | 94.0 × Φ122.0mm |
| Unit Calculated Volume | 0.0027 cubm |
| Product Net Weight | 0.7129 kg |
| Unit Calculated Weight | 0.7 kg |
| Form factor | Dome |
| IK code | IK10 |
| International Protection (IP) code | IP67 |
| Product colour | Black |
| Alarm input/output | Yes |
| Connectivity technology | Wired |
| Type | IP security camera |
| Wide Dynamic Range (WDR) | Yes |
| Field of view (FOV) angle | 111 ° |
| Number of sensors | 1 |
| Optical sensor size | 1/2.7 " |
| Sensor type | CMOS |
| B/W night vision distance | 50 m |
| LED type | IR |
| Night vision | Yes |
| 3D NR (Noise Reduction) | Yes |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Maximum resolution | 2960 x 1668 pixels |
| Total megapixels | 5 MP |
| Built-in microphone | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 512 GB |
| Ethernet LAN (RJ-45) ports | 1 |
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| DC output voltage | 12 |
| Power consumption (typical) | 8.8 W |
| Power source type | DC,PoE |
| Operating temperature (T-T) | -40 – 60 °C |
| Diameter | 122 mm |
| Height | 94 mm |
| Weight | 712.9 g |
| Audio input | 1 |
| Audio output | 1 |
| Units per Shipping Box | 1 |
| Summary | Dahua Technology IPC-HDBW5541R-ASE. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling, Product colour: Black, Form factor: Dome. Sensor type: CMOS. Maximum resolution: 2960 x 1668 pixels, Total megapixels: 5 MP. Power source type: DC, PoE |
| Mounting type | Ceiling |
| Placement supported | Indoor & outdoor |
| Bluetooth | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Built-in HDD | No |
| Cloud-managed | Yes |
| Number of cameras | 1 |
| Operating relative humidity (H-H) | 0 – 95 % |
| Storage relative humidity (H-H) | 10 – 95 % |
| Storage temperature (T-T) | -40 – 60 °C |
| Depth | 122 mm |
| Width | 122 mm |
| Package weight | 986 g |
| Manufacturer Code | IPC-HDBW5541R-ASE0280BS3-B |
| ELKO Code | 1451669 |
| Warranty | 36 |
